Haas VF Series Service Manual

96-8100 1-15-96
72
MECHANICAL SERVICE
HAAS AUTOMATION, INC.
SERVICE MANUAL
VF-SERIES

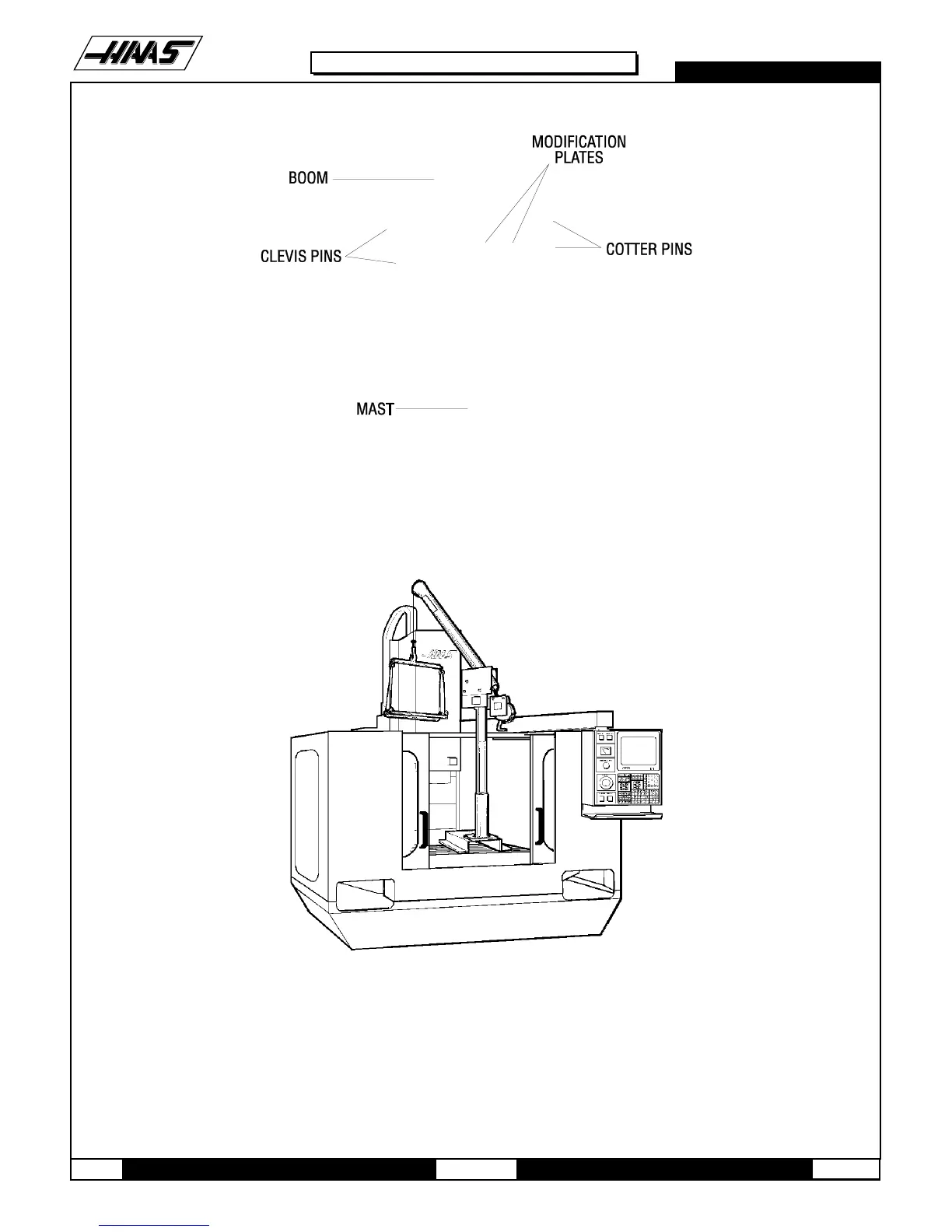

Fig. 8-8 Mounting boom assembly to mast.
11. Place the hoist directly over the transmission and attach the hook to the cradle's eye bolt.
Fig. 8-9 Fully assembled hoist in position
12. Raise the transmission, ensuring the hoist is being lifted in the locking position, clearing the enclosures. Swing the
boom toward the front of the machine and lower onto the wood blocks.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
