Haas VF Series Service Manual

96-8100 1-15-96
68
MECHANICAL SERVICE
HAAS AUTOMATION, INC.
SERVICE MANUAL
VF-SERIES

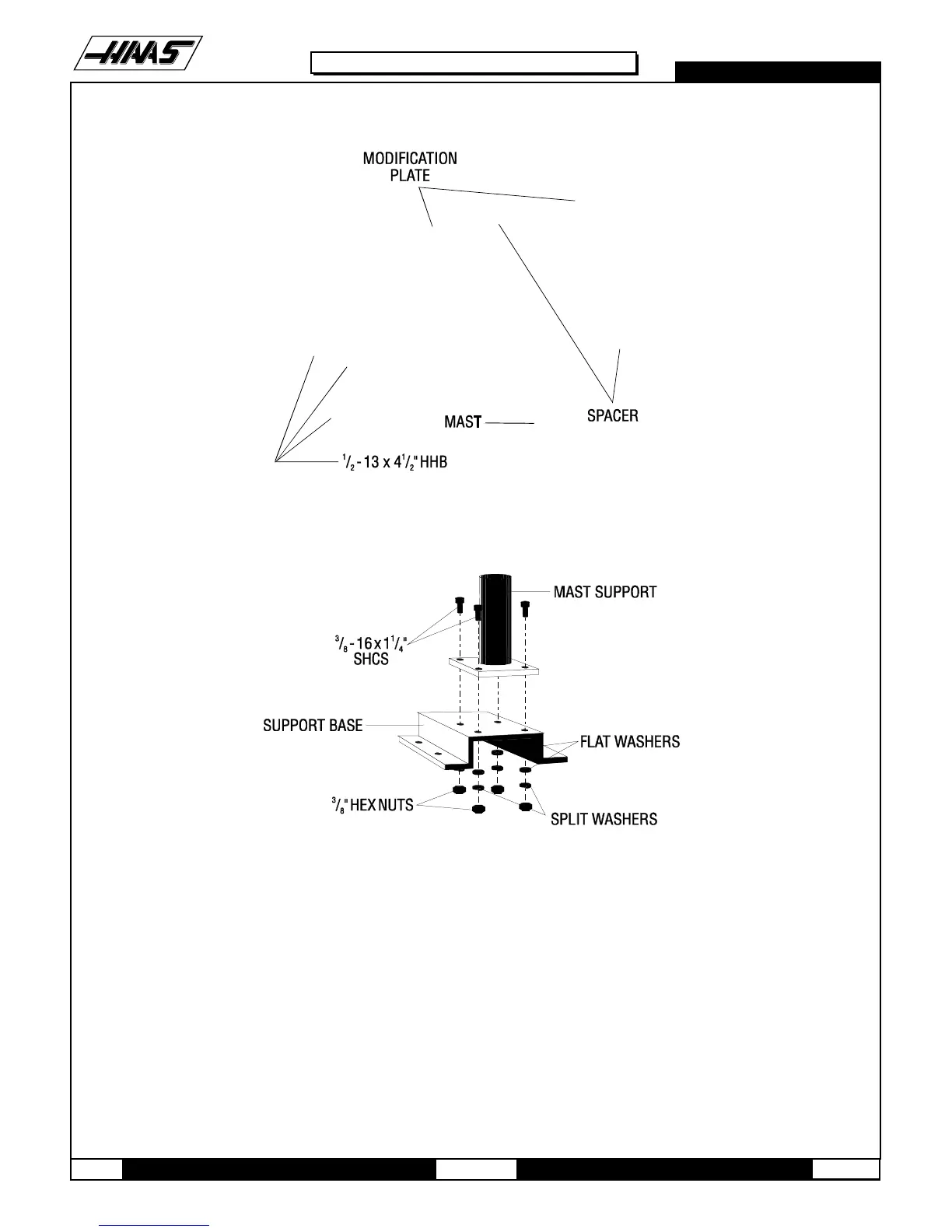

Fig. 8-2 Support base/mast support assembly.
Fig. 8-3 Exploded view of boom modification plate components.
3. Assemble the boom assembly as follows:
A. Lubricate the components of the assembly:
1) Using a grease brush, apply grease to the through-hole and the side surface of the pulley wheel.
2) Wipe a thin coat of oil on the entire cable.
3) Lubricate all clevis pins with a thin layer of grease.
4) Oil all bearings on the winch and apply grease to the gear teeth.
B. Place the pulley wheel inside the cable guide and place this subassembly into the end of the
boom. Ensure the clevis pin through-hole is toward the top of the boom and the rounded end of
the cable guide is toward the outside. Slide the clevis pin through the hole and fasten with the

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
