MECHANICAL SERVICE
SERVICE MANUAL
VF-SERIES

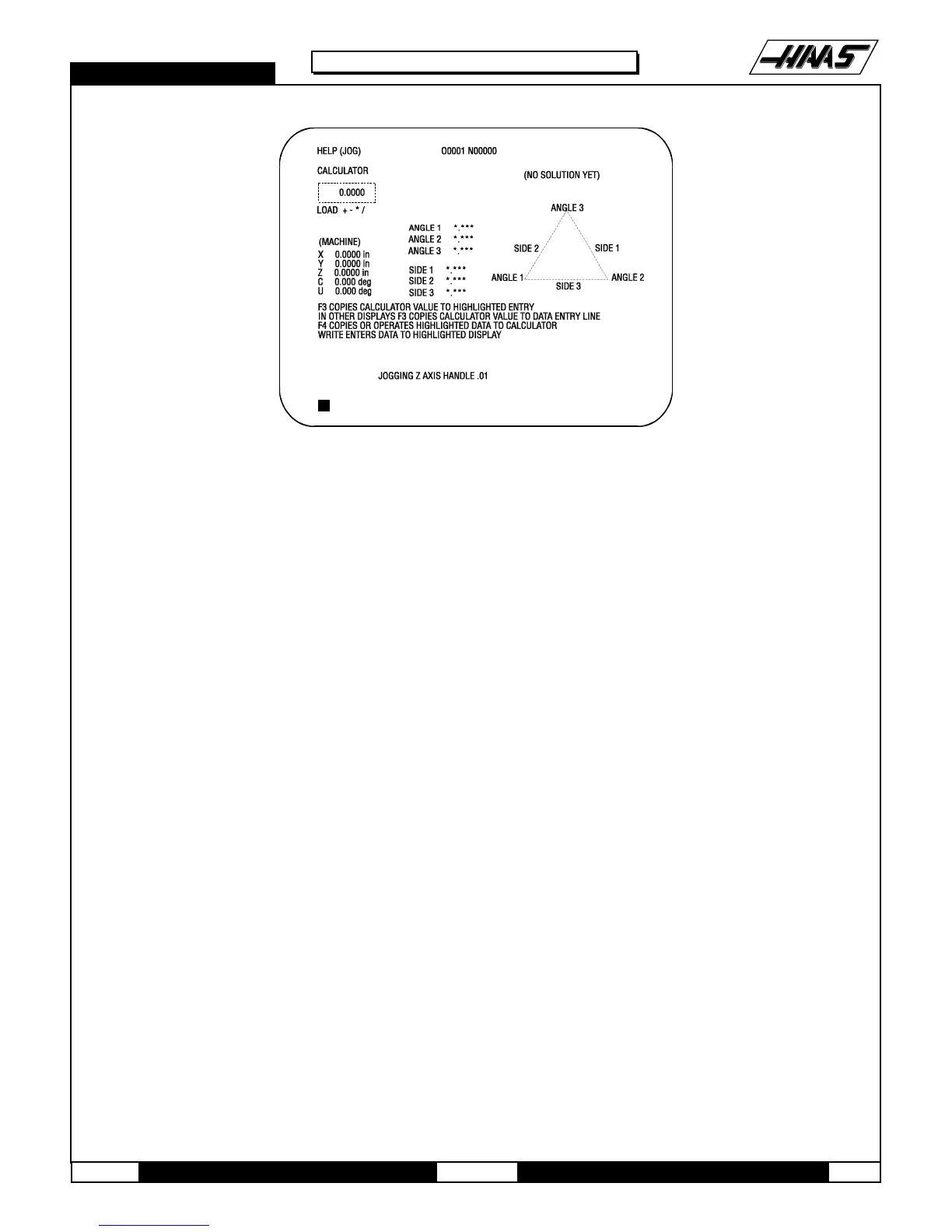

Fig.7-2 Screen showing calculator.
7. Take the number in the Z-axis machine display (center left of page) and multiply it by Parameter 33, which is Z
RATIO (STEPS/INCH).
If Z-axis work display is negative (-), add the number to the number that you calculated to Parameter 64. If the number
is positive (+), subtract it from Parameter 64.
8. To insert the calculated new number, place the cursor at Parameter 64, type in new number and push write key.
ZERO RET Z-axis to initialize the new Parameter 64.
9. Recheck the offset with the indicator (Steps 1-5).
10. Insert tool holder in spindle in spindle taper and initiate a tool change.
NOTE: When the Parameter 64 is changed, the tool offsets must be reset.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
