Haas VF Series Service Manual

96-8100 1-15-96
200
CABLE LOCATIONS
HAAS AUTOMATION, INC.
SERVICE MANUAL
VF-SERIES

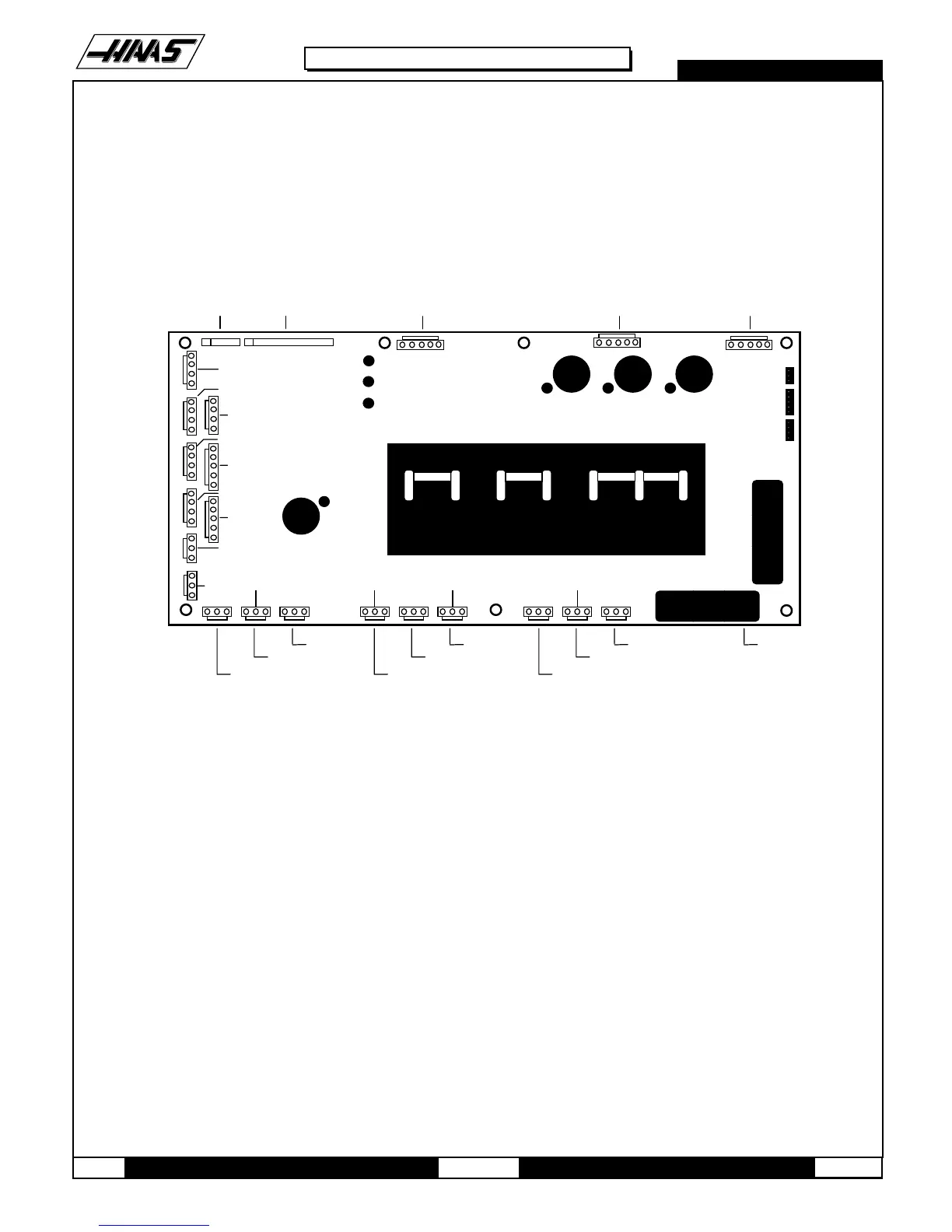

POWER PCB 32-5010
P1
P5290 / P19
FU1 FU2 FU3
170/P4
740/P2
P3
94
95
96
919293
70/P15800A/P14910/P7P24
860A/P17
860A/P31 90/P8 800/P30 930/P6
TB2
TB1
860/P13
860/P12
860/P27
860/P11
P26
860/P10
P9
P21
P22
FU6
CB2CB3CB4
-12V
+12V
+5V
LOW VOLTAGE
LOW VOLTAGE
LOW VOLTAGE
LOW VOLTAGE
LOW VOLTAGE
I/O +12V
+12V
SPARE
115VAC/T1
115VAC CB/SOLENOID
12VAC/OP LAMP
OP LAMP TO SWITCH
230VAC/COOLANT PUMP
230VAC/K1 CONTACTORS
115VAC OUT
115VAC IN
K1 COIL
POWER ON/OFF
AUTO OFF
230VAC/T4 190-260VAC INPUT
PRI-SEC/T5
LOW VOLTAGE
LOW VOLTAGE
SERIAL PORT 1 (-12V)
SERIAL PORT 2 (-12V)
SOLENOID COOLANT PUMP MAIN TRANSFORMER
. . . . . . . . . . . . . . . . .
FROM LVPS/P1
6
TO LVPS/P20
