Applicator description Operating instructions HERMA 400
66/154 3.28 US (130519)

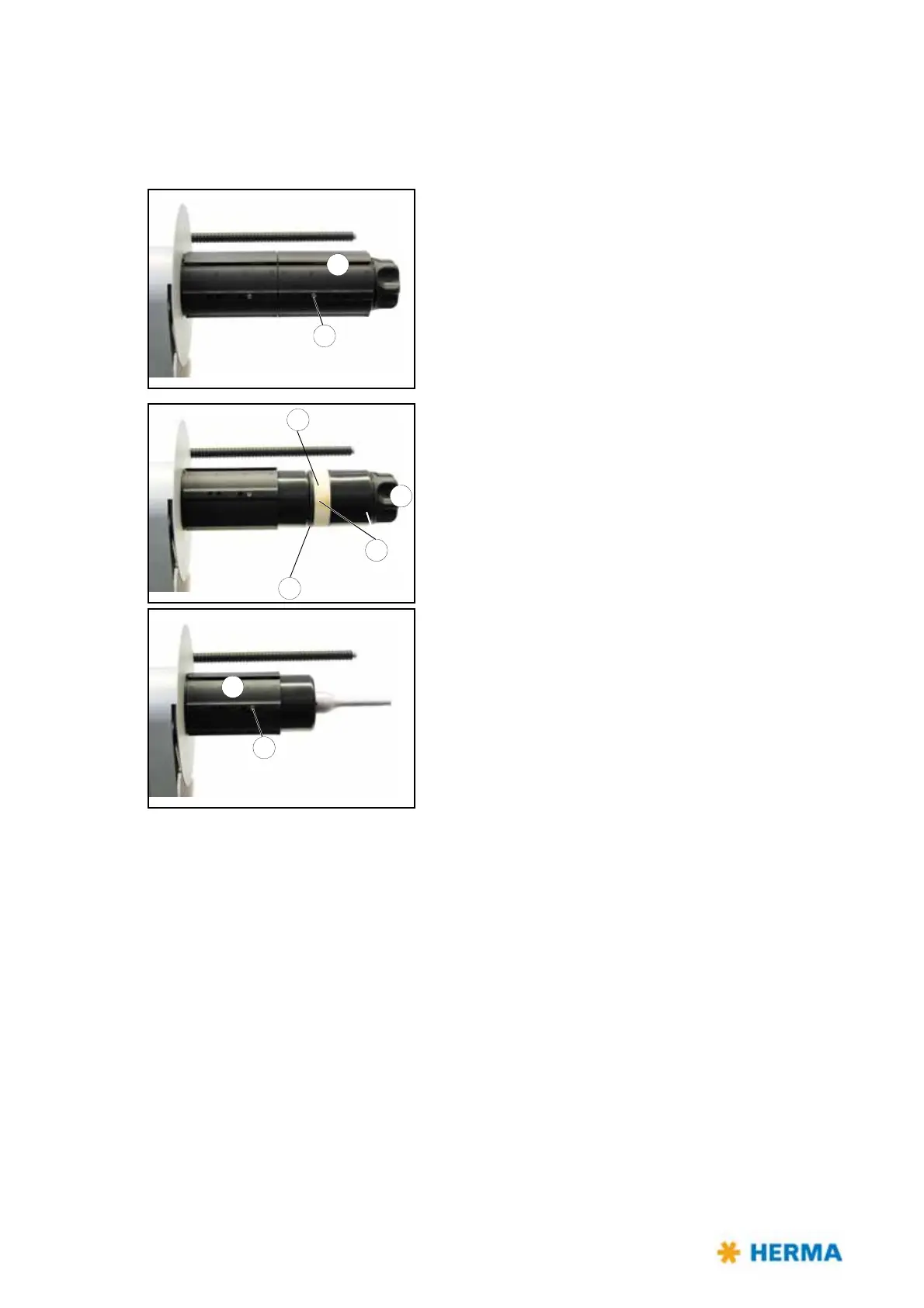

Replacing the tension rings
2
12
If after a very long time of use tension rings 11 are worn proceed as follows when preplacing the worn
rings (example with constructional width 24):
> Remove sleeve 2
after removing screw 12.
13
1
11
15
> Remove handle 1 as described above („Replacing the
handle“).
> Pull off parts 13.
14
3
> Remove sleeve 3 after removing screw 14.
> Pull off remaining parts.
