The air inlet is at the bottom of the front panel. Air is pushed from the air inlet and then goes

through the chassis cage. The air is exhausted out of the air outlet which is at the top of the back

panel and the side of the chassis.

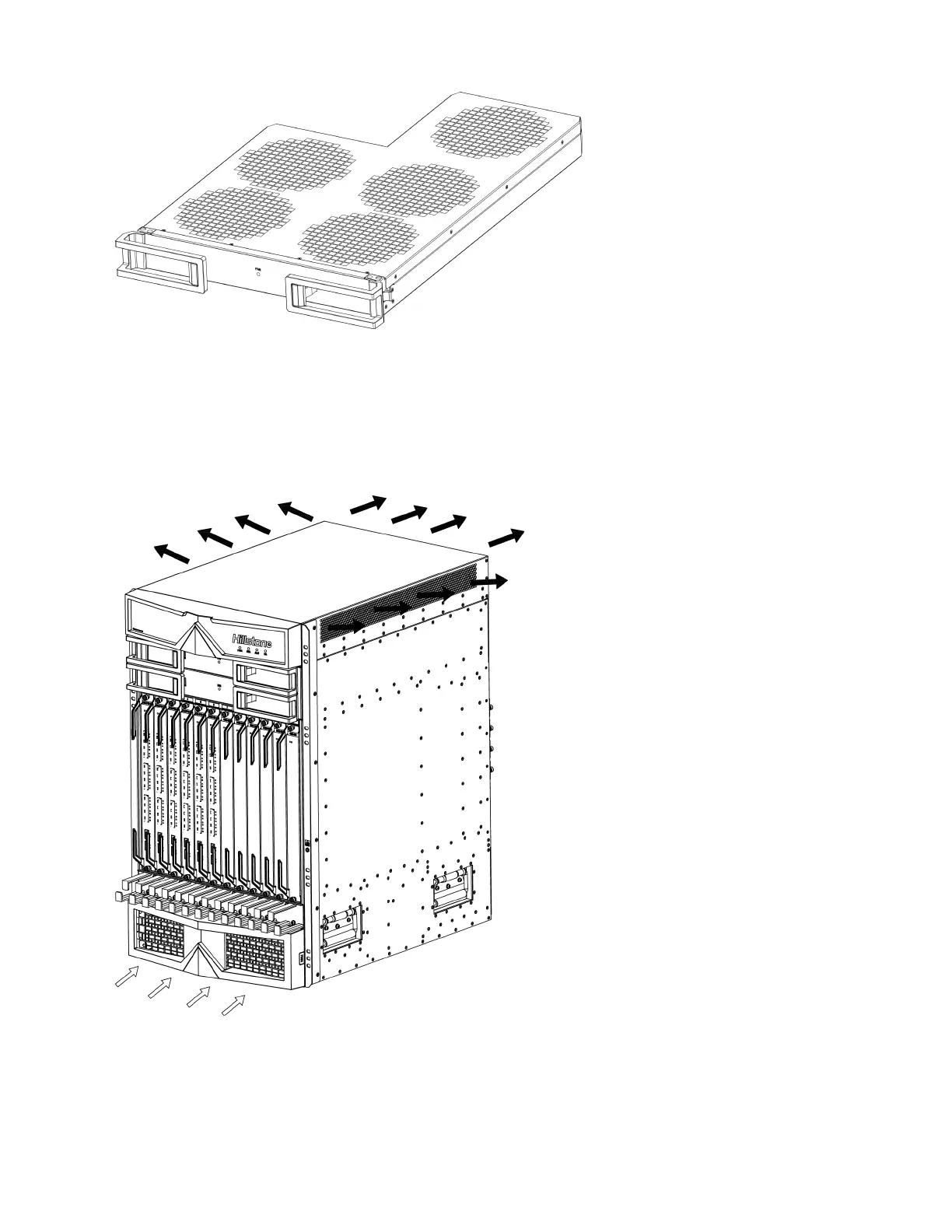

Figure 2-15

Fig: Air Flow Through the Chassis of SG-6000-X10800
