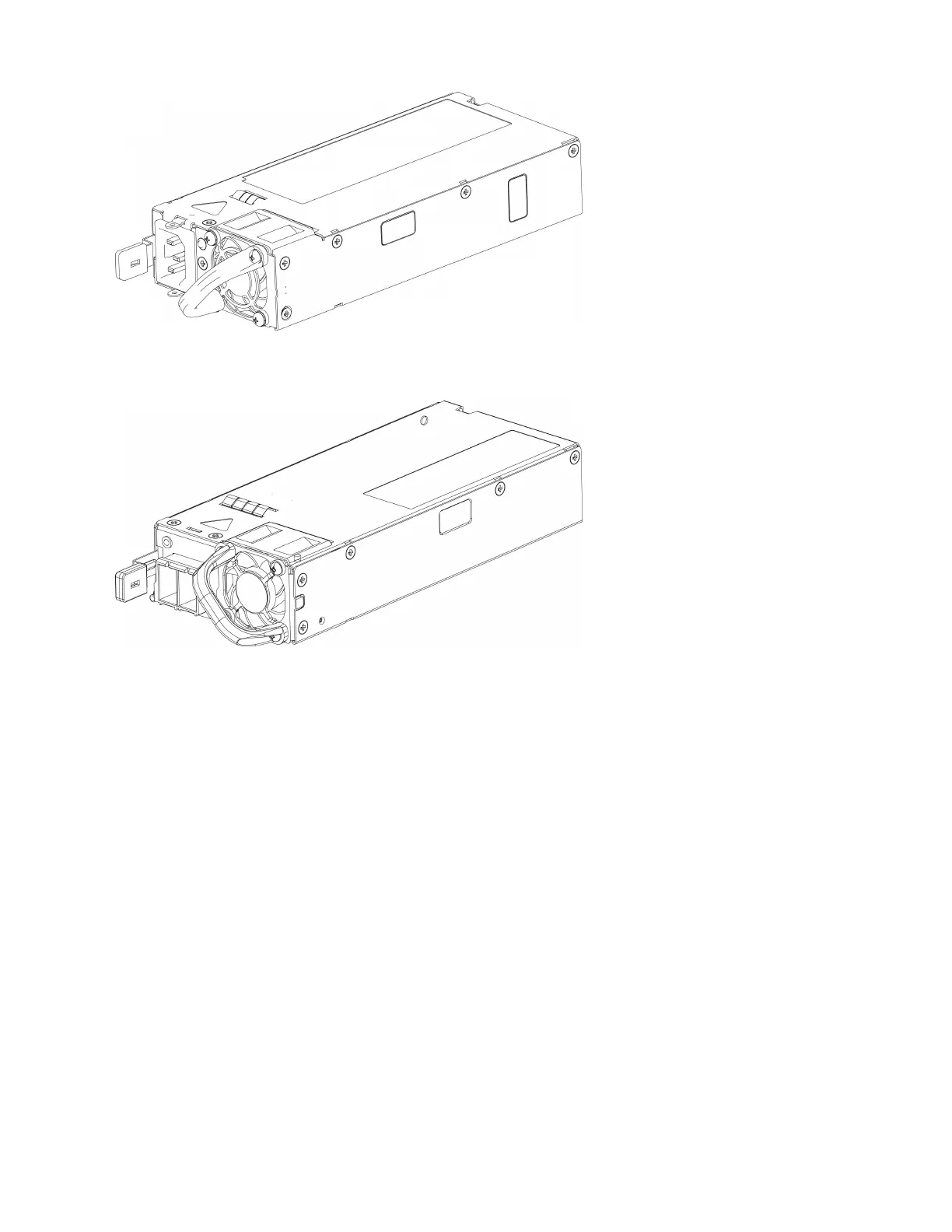

Figure 2-13
Fig: DC Power Module
Cooling System
The cooling system of SG-6000-X10800 consists of two fan trays. The fan trays are horizontally
located in the fan slots on the front panel.
Each fan tray of SG-6000-X10800 has five fans.
Figure 2-14
Fig: Fan Tray of SG-6000-X10800
