Cooling System
The cooling system of SG-6000-X8180 consists of two fan trays. The fan trays are horizontally
located in the fan slots (FAN0, FAN1, FAN2, and FAN3) on the back panel.
Each fan tray of SG-6000-X8180 has five fans.
Figure 2-41

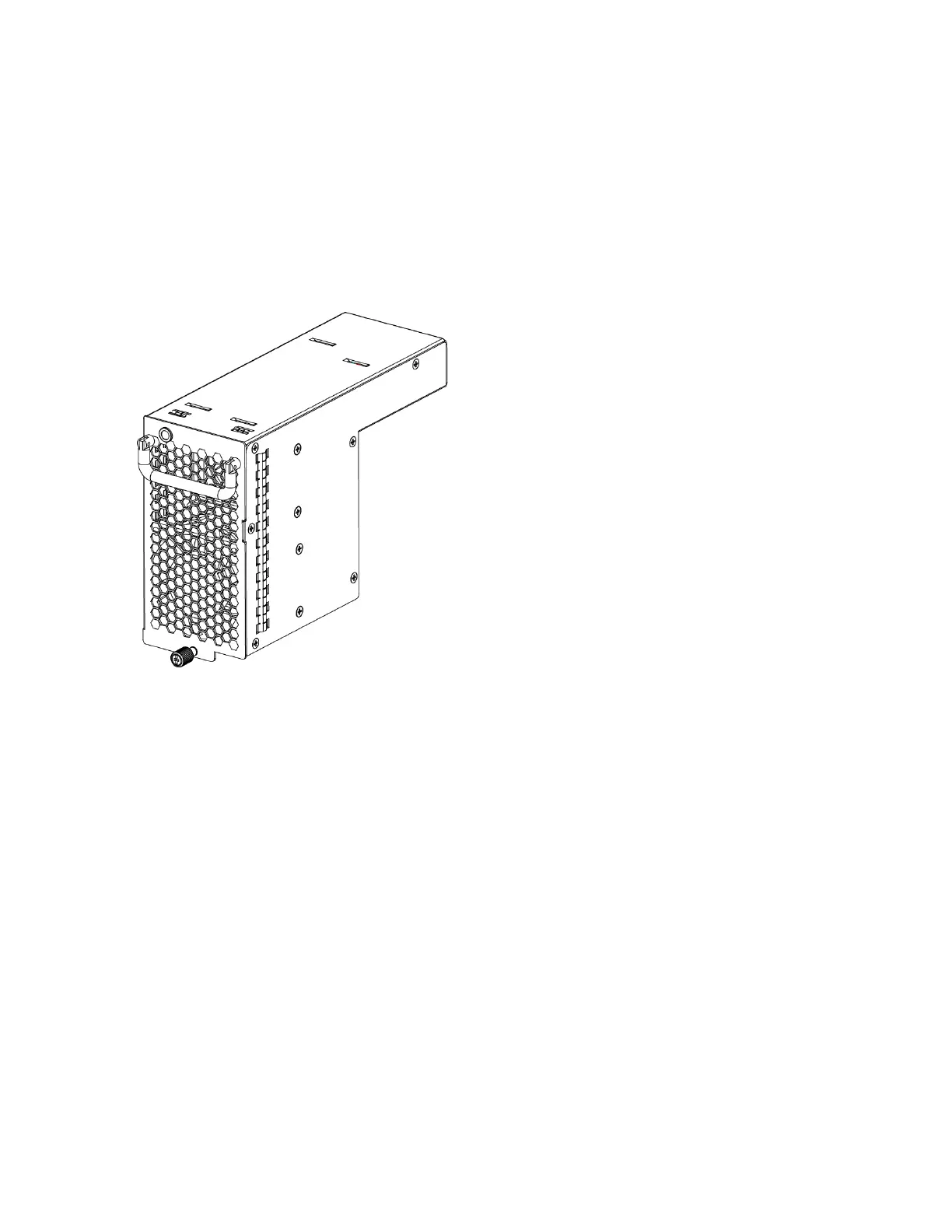

Fig: Fan Tray of SG-6000-X8180
The air inlet is at the top of the device front panel and the front panel of the expansion modules.
Air is pushed from the air inlet and then goes through the chassis cage. The air is exhausted out of
the air outlet which is at the left and right side of the back panel.
Figure 2-42
Fig: Air Flow Through the Chassis of SG-6000-X8180
