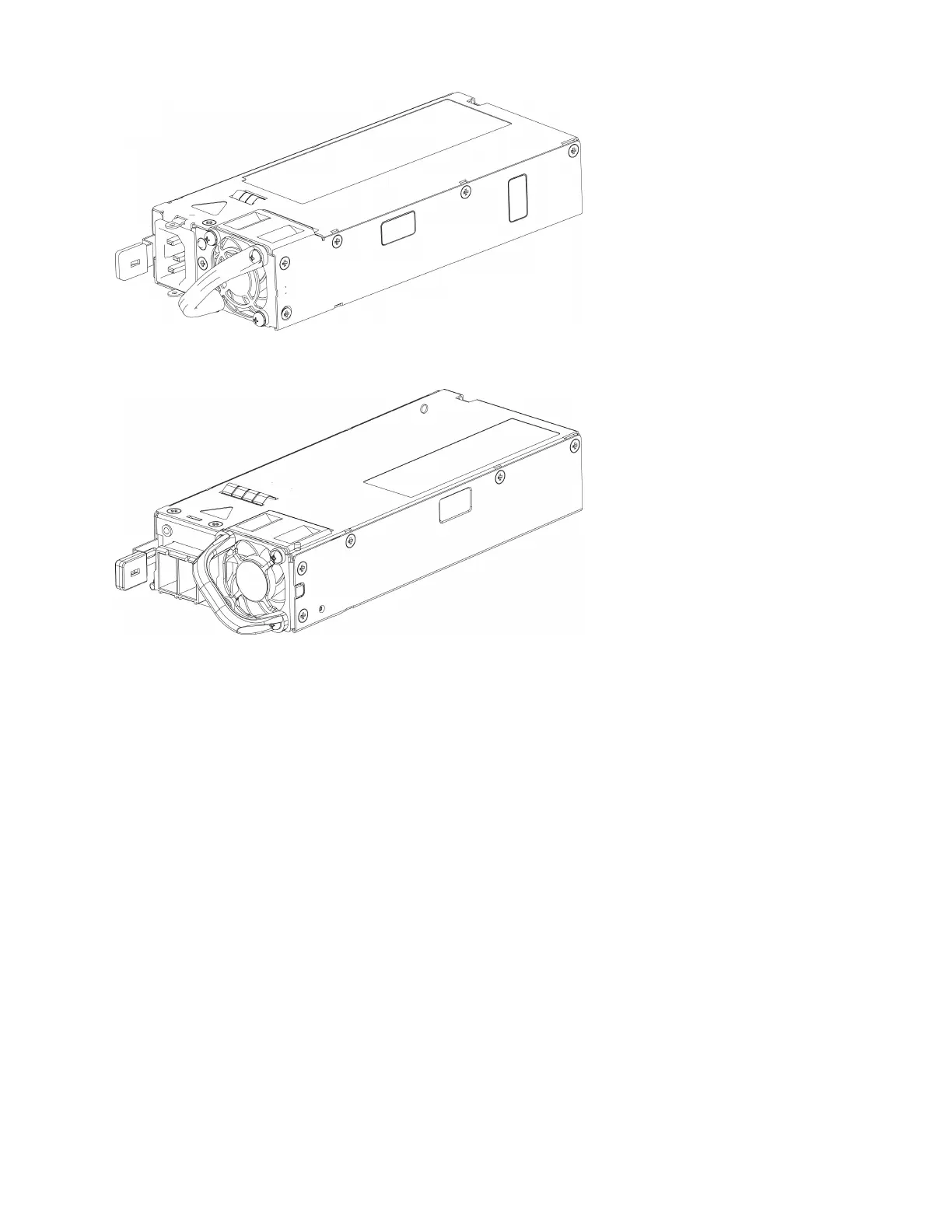

Fig: DC Power Module
Cooling System
The cooling system of SG-6000-X9180 consists of two fan trays. The fan trays are horizontally
located in the FAN0 slot on the front panel and the FAN1 slot on the back panel.
Each fan tray of SG-6000-X9180 has ten fans.
Figure 2-26
Fig: Front Panel Fan Tray of SG-6000-X9180
