Move to the [Wiring] setting.
Select from the pull-down menu.
Select the SYSTEM [WIRING]
screen (Initial Operating Screen).
1
2
3

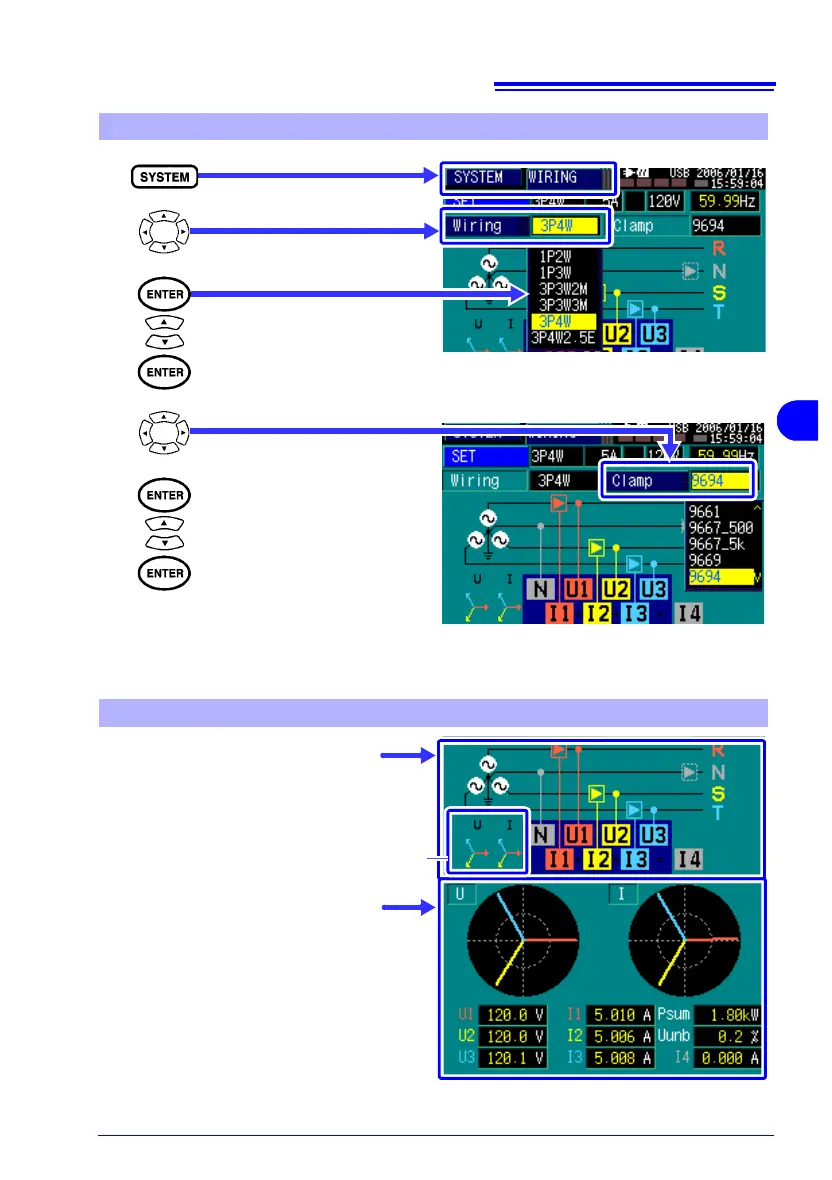

1. Select the wiring configuration and clamp sensor model.
Setting details:
See: "Setting the Wiring Method (Wiring)" (p. 58)
4
5
Select from the pull-down menu.
Accept
Setting details:
See: "Selecting the Clamp Sensor Model and Current
Range" (p. 60)
Move to the [Clamp] setting.
1
2
2. Setting details
Connect to the lines to be measured
while viewing the wiring diagram.
Wiring procedure:
See: "5.2 Connecting to the Lines to be Mea-
sured" (p. 81)
Verify that the vector diagram and
measurement values are displayed
correctly.
Connection checking procedure:
See: "5.3 Verifying Correct Wiring (Connection
Check)" (p. 86)
Correct vector
diagram
To Next Page
