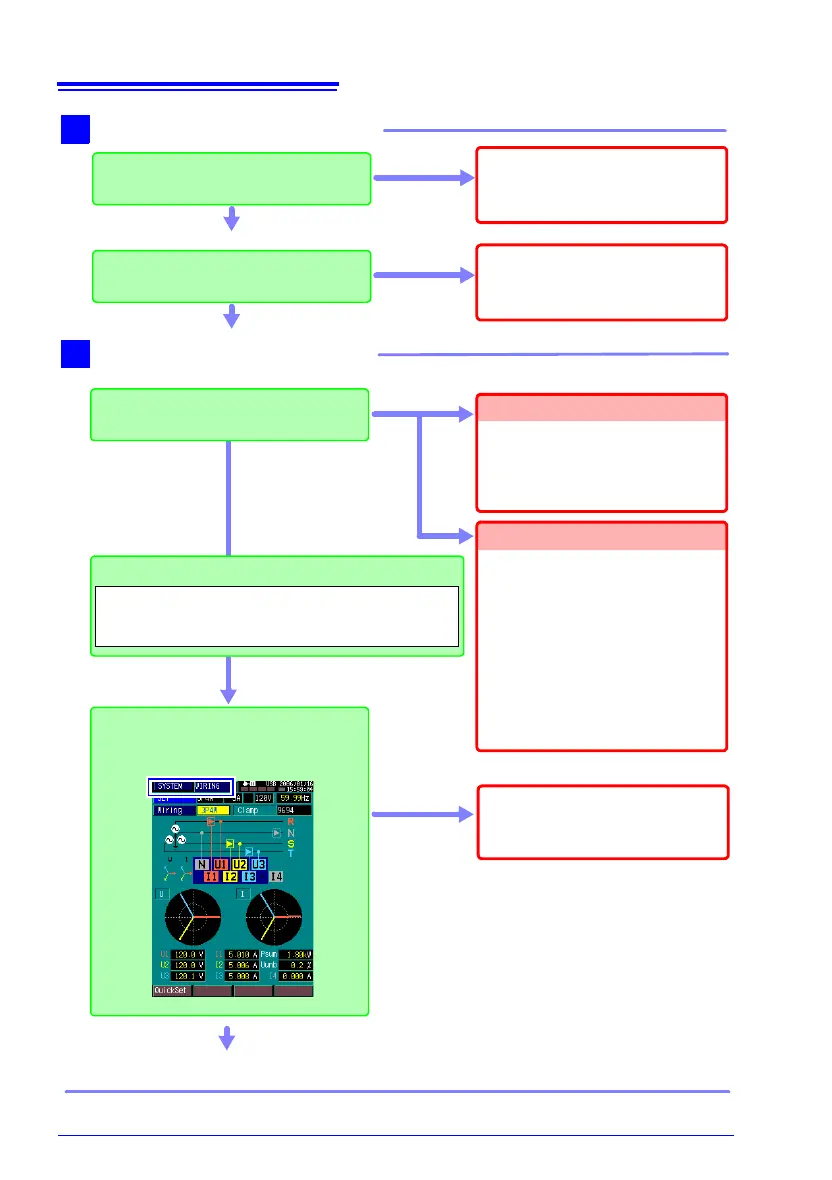

5.1 Pre-Operation Inspection
80
Power-On Confirmation
After the self-test on the Startup
screen has finished, does the SYS-
TEM-[WIRING] screen appear?
The instrument may be damaged
internally. Have the instrument re-
paired.
An error is
displayed
Yes
Inspection complete
3
Does the POWER lamp flash green
and does the screen display ap-
No
Yes
When using the AC Adapter
When not using the AC Adapter
The AC adapter output plug
might be damaged, or the instru-
ment might have internal dam-
aged.
The battery pack may not be suf-
ficiently charged. Allow it to
charge fully.
If the battery has been fully
charged and the power lamp
does not flash or the screen
stays blank, the battery pack
may have deteriorated or be
damaged. Obtain a new battery
pack, or request repair.
Startup Screen (p. 47)
HIOKI 3197 POWER QUALITY ANALYZER Ver 1.00
If the battery pack is not used,
measurement is not possible dur-
ing power outages.
No
Is the battery pack installed in the in-
strument?
2
Confirmation during Connection
Yes
Using the AC adapter is recom-
mended when measuring at one
site for a long time.
No
Is the Model 9418-15 AC Adapter be-
ing used with the instrument?
Yes
