4.2 Viewing Power Measurements, and Changing the Measurement Configuration
44
Ranges can be set on the following Measurement screen pages: [Vector], [CH] (any), [Wave + Noise],
[Select], and [Input]. Change the range with the RANGE and keys.

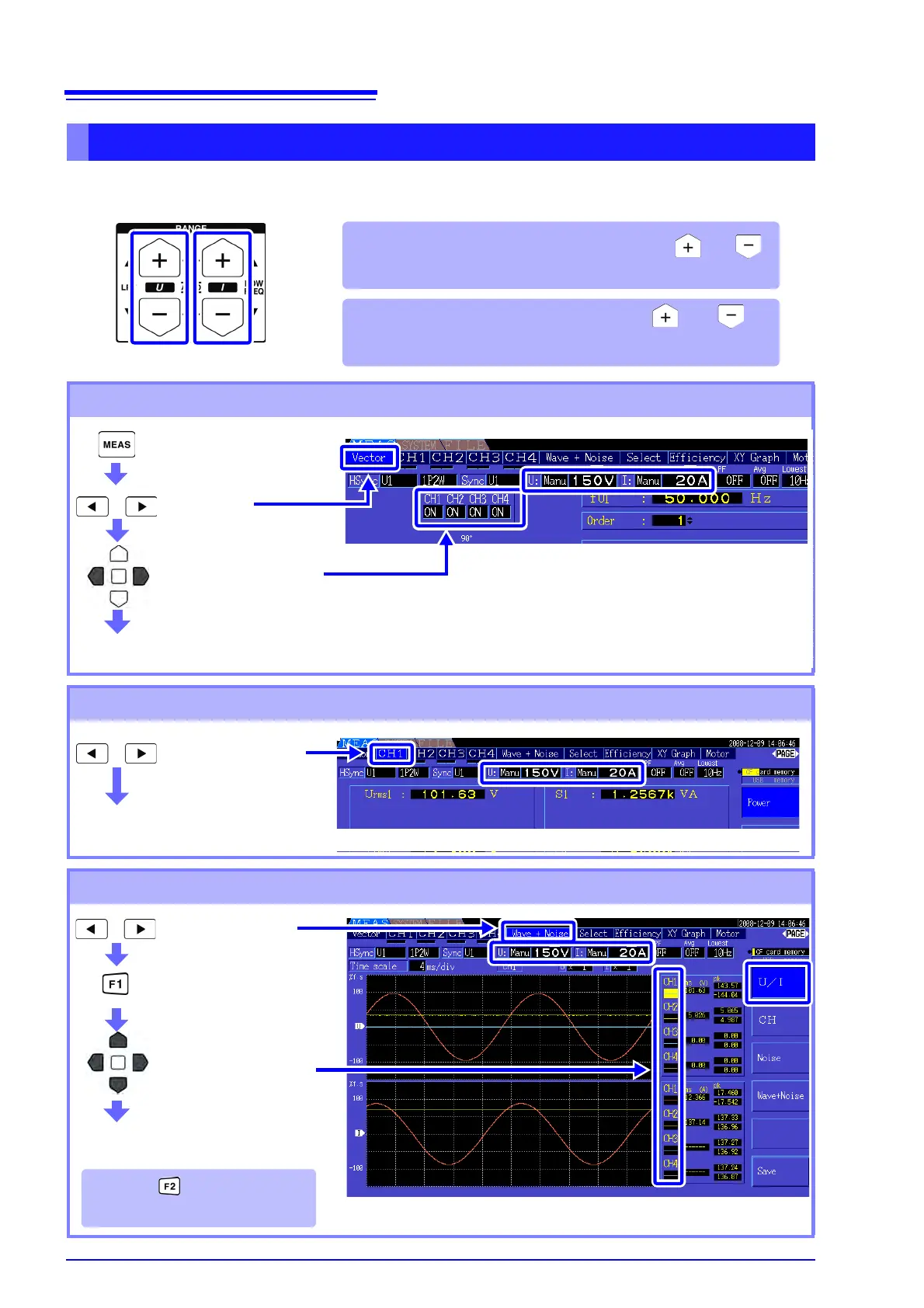

Range Setting Procedure
For Manual range selection, press RANGE or
to select the desired range.
Current RangeVoltage Range
For Auto range selection, press RANGE and at
the same time.
Setting from the [Vector] Page of the Measurement Screen
Display the
[Vector] page
Press the RANGE keys to select the range
Select the channel to
change
Setting from the [CH] Pages of the Measurement Screen
Press the RANGE keys to select
the range
Select the channel to
change
Setting from the [Wave + Noise] Page of the Measurement Screen
Display the
[Wave + Noise] page
Select the channel to
change
Press the RANGE keys to select the
range
Select [U/I]*
* Press to display [CH]
for changing.
