Chapter 4 Viewing Measurement Values

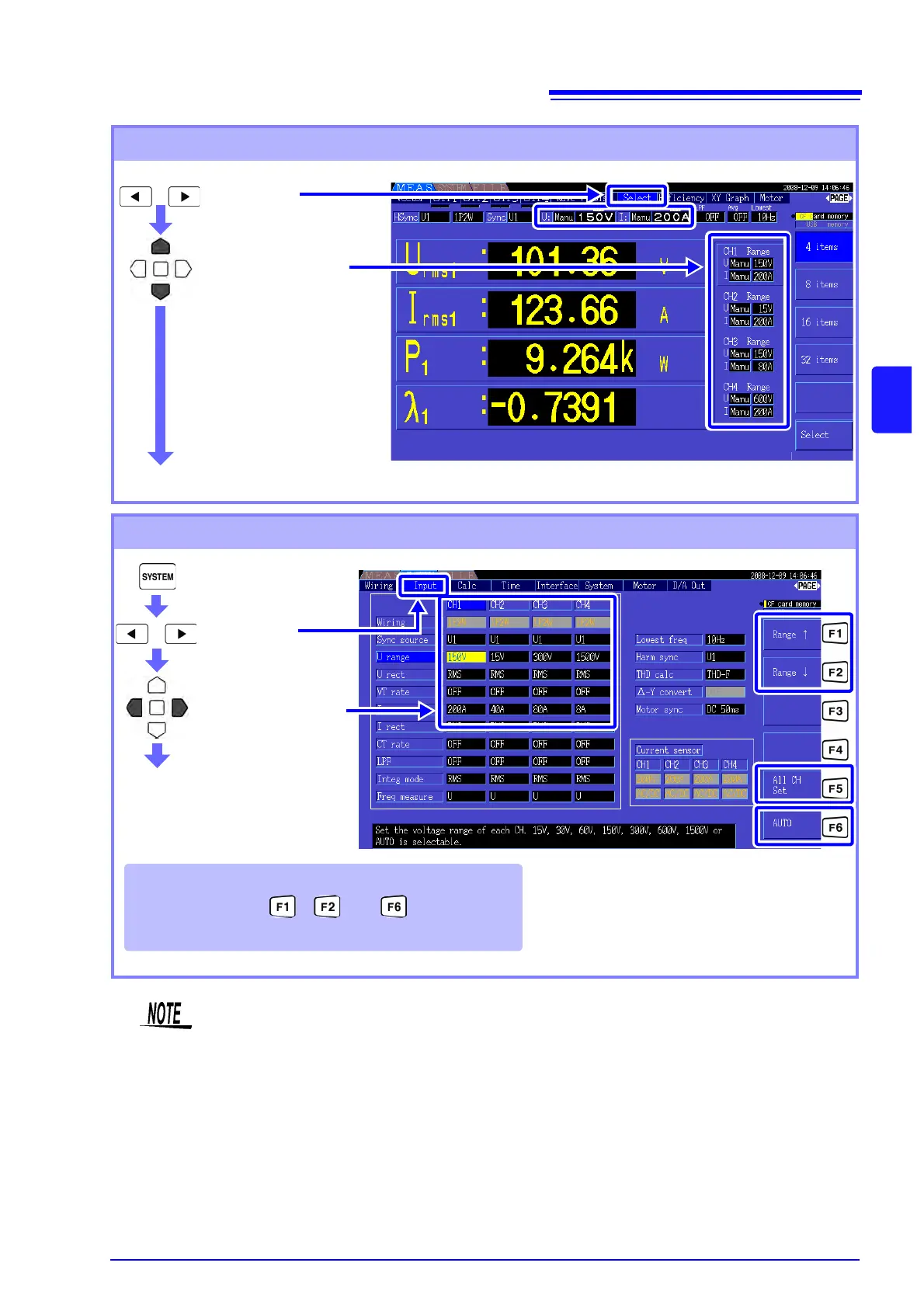

Setting from the [Select] Page of the Measurement Screen
Display the
[Select] page
Select the channel
to change
Press the RANGE keys to select the range
Setting from the [Input] Page of the Setting Screen
Display the
[Input] page
Press the RANGE keys to select
the range
(Changes the selected [U range] or
[I range])
Select the channel
to change
To change the [U range] or [I range], select it with the
cursor and press , , or to change the
range.
See About [All CH Set] "2.2 Basic Opera-
tions" (p. 16)
When measuring multiple channels with a Wiring mode other than 1P2W, all channels are
forced to the same range. In this case, the range of each channel is set to match the channel
set to the lowest range.
