4 - 53
5. Magnification

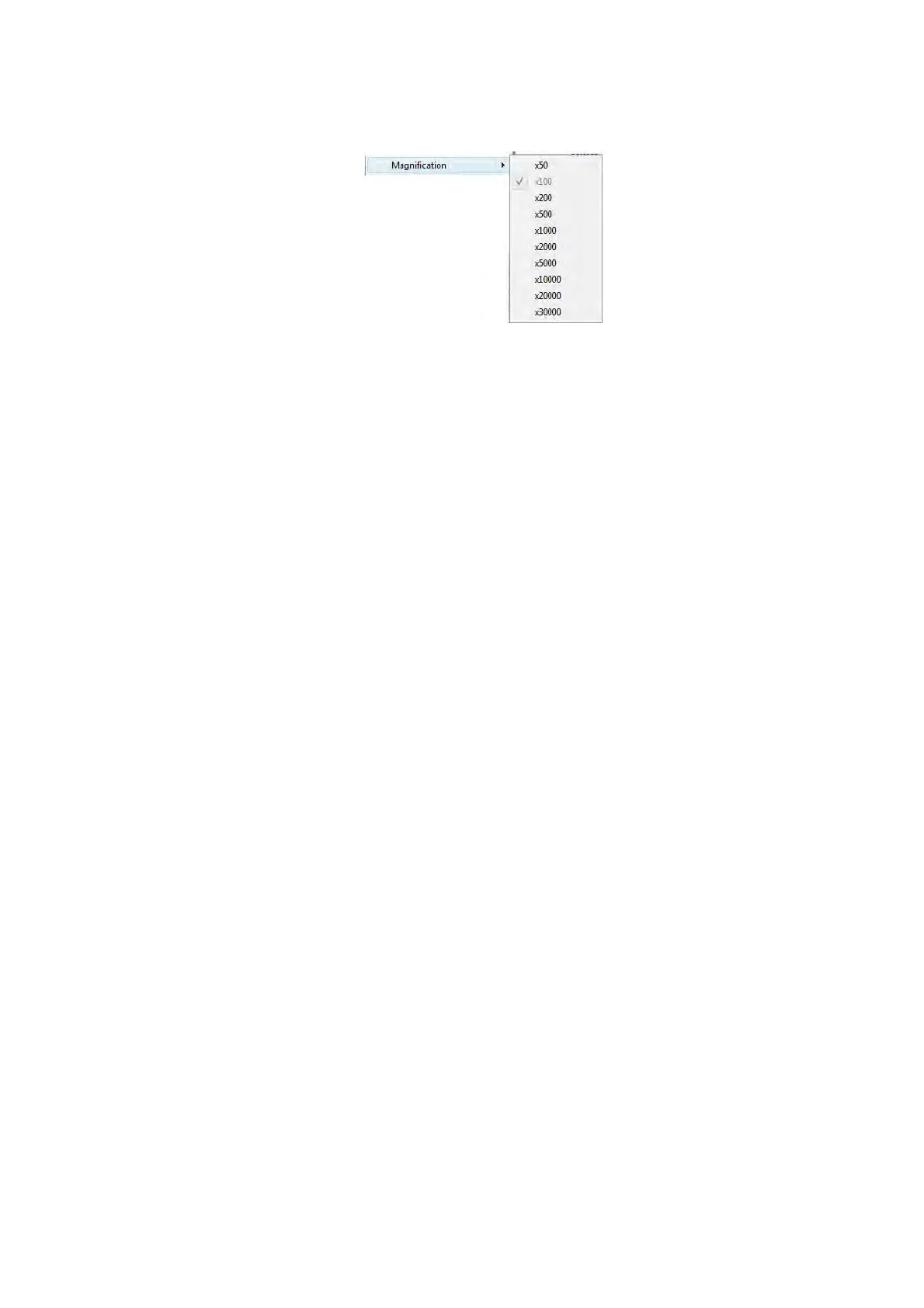

Figure 4.3.5-10 View Menu (Magnification Menu)
The magnification changes to the value you select from the list of the [Magnification]
menu.
The [Magnification] button operation allows fine adjustment. (See 4.3.16)
6. Auto B/C
Automatically adjusts the brightness and contrast of the image being observed, according
to the brightness and contrast levels that were set in advance on the Auto B/C adjustment
window (See 4.3.34). The [Auto B/C] button operation allows the same process to be
performed.
For the details, refer to 4.3.20 Auto B/C Button.
7. Auto Focus
Automatically adjusts the focus appropriately. The [Auto Focus] button operation allows
the same process to be performed.
For the details, refer to 4.3.22 Auto Focus Button.
8. Image Shift Reset
Resets the field of view using a pre-set reference image shift value (shift amount: 0). The
[Image Shift Reset] button operation allows the same process to be performed.
For the details, refer to 4.3.23 Image Shift Reset Button.
