7 - 34

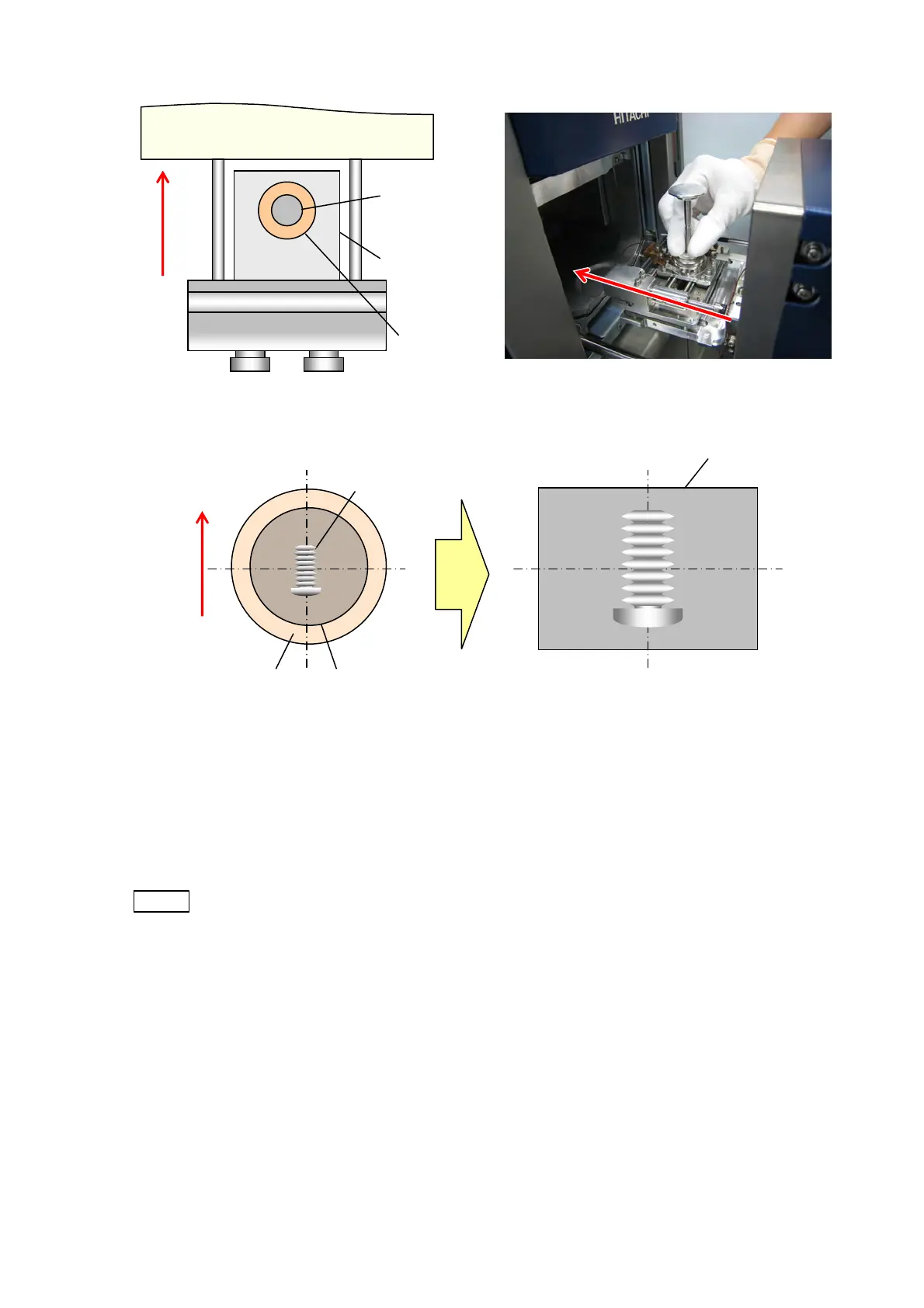

Figure 7.14.1-2 Direction of Sample Insertion and Observation Image
3. Setting SEM Observation Conditions and Adjusting the Image
Adjust brightness, contrast, magnification, focus before starting image capture.
NOTE
: At a magnification of less than 30x, the shadow of the variable aperture appears,
and this prevents an accurate 3D display/measurement. Execute capturing the
image at a magnification of 30x or more.
Holder Base Specimen Stub
Specimen
Example of the observation image
Observation
image area
Example of the direction that installs sample
The direction that installs sample in the stage
(Top View)
Specimen Stage
Holder Base
Specimen Stub
TM3030Plus Main Unit
To Next Page
