For layout, see Figure 1.5 below.

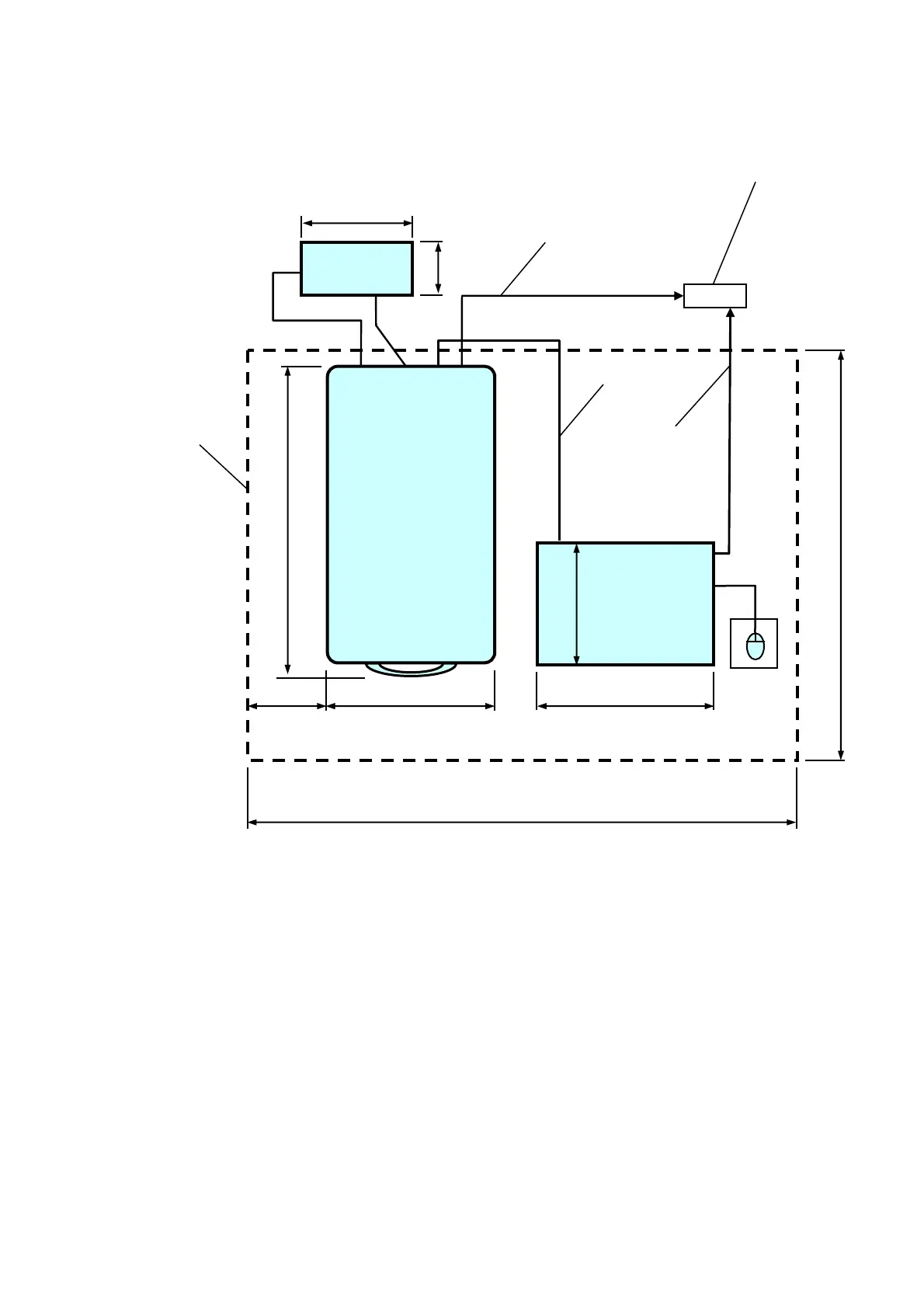

Figure 1.5 Layout Diagram (Example)
Recommended table size: 1200(W)×800(D)×700(H) mm
Minimum table size: 1000(W)×800(D)×700(H) mm
Withstand load: 100 kg or more
* The Chair is not included in the size
* Dimensions is reference
Grounded power cable
1200
800
330
606(Manual Stage)/633(Motor Drive Stage)
Diaphragm
pump
145
256
Power supply & grounding
Units: mm
* Recommended
Table layout
Notebook PC
power cable
(2.5 m)
USB cable
200
374
PC
Main unit
250
