Assembly and Commissioning Instructions Servo amplifier D1-N 15.10.2015
131 / 183
Figure 9.17: Evaluation of stimulated frequencies
Once the process has been completed, the amplitude characteristic can be seen
depending on the input frequency.
To determine the control parameters, click in the diagram window to display a
“-20 Db/dec” line.

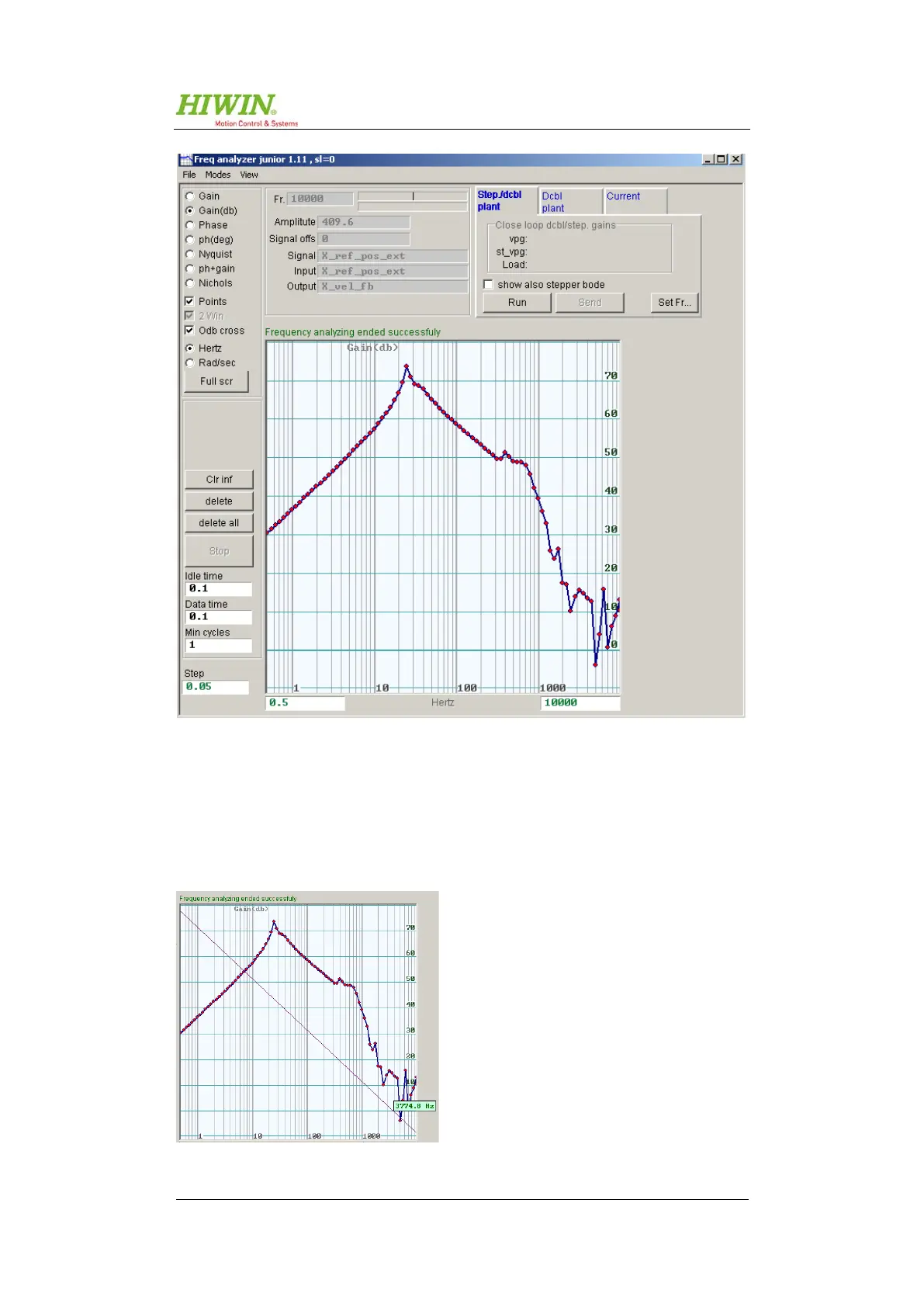

Figure 9.18: Frequency analyser – -20 dB/dec line
