150 / 183
Assembly and Commissioning Instructions Servo amplifier D1-N
“Advanced gains” – filter
The control parameters can be further optimised with “Advanced gains”. To under-
take further fine tuning of the control circuit and to set filters, open the “Advanced
gains” menu. Here you can filter frequency elements out of the control circuit and
activate special controller functions. Open the “Advanced gains” window from the
“Conf./Tune” menu in the main “Lightening” interface.

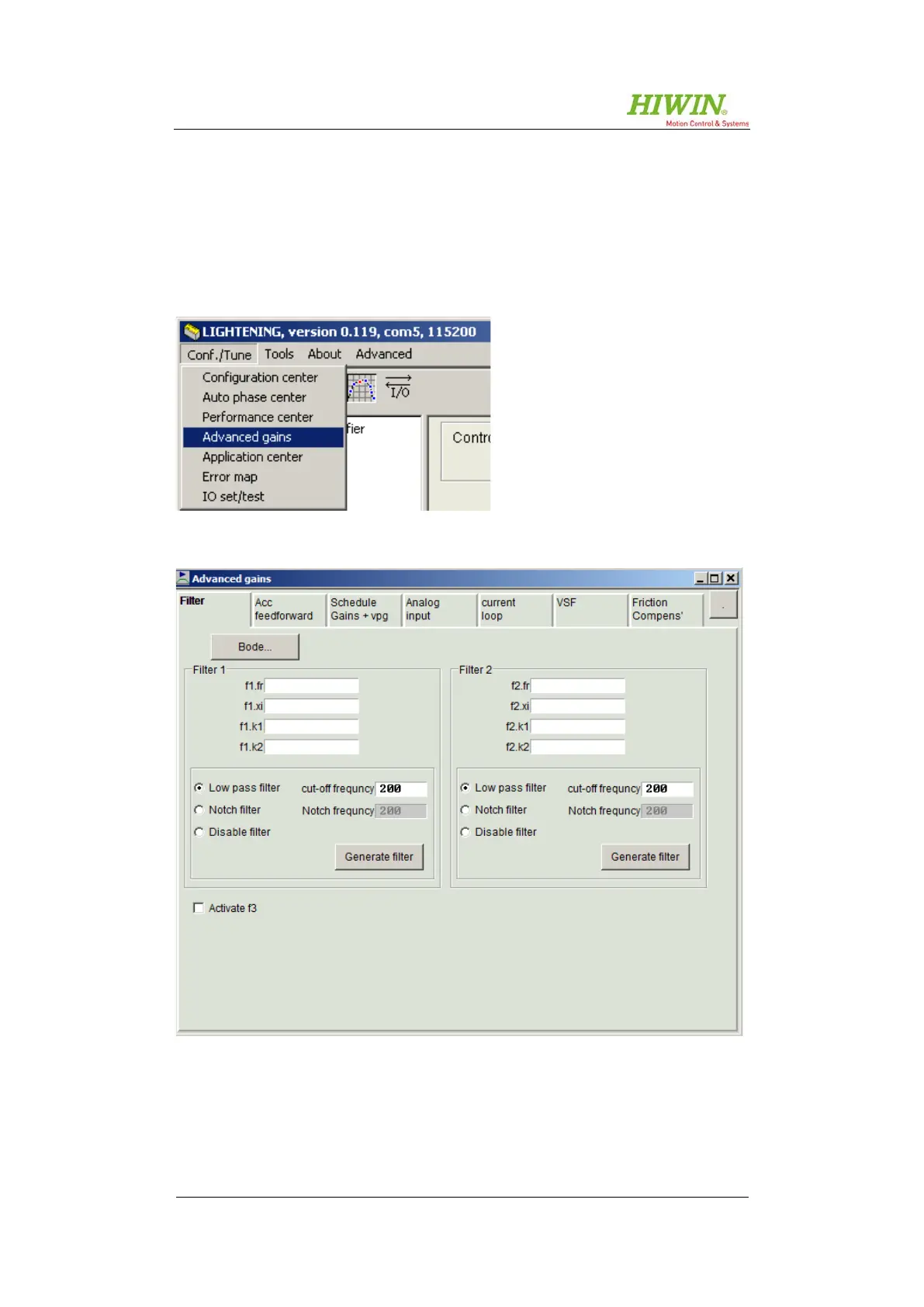

Figure 9.46: Opening the "Advanced gains" window
Figure 9.47: Advanced gains
