9.3
"Performance center", controller parameter optimisation
In the “performance center” you can move your motor/axis in a controlled manner
in manual mode using defined parameters. Continuous travel between two points
is also possible.
To launch the “performance center”, go to the main screen in the “Lightening”
software and click on the “performance center” button or launch it from the
“Conf./Tune” menu in “Lightening”.

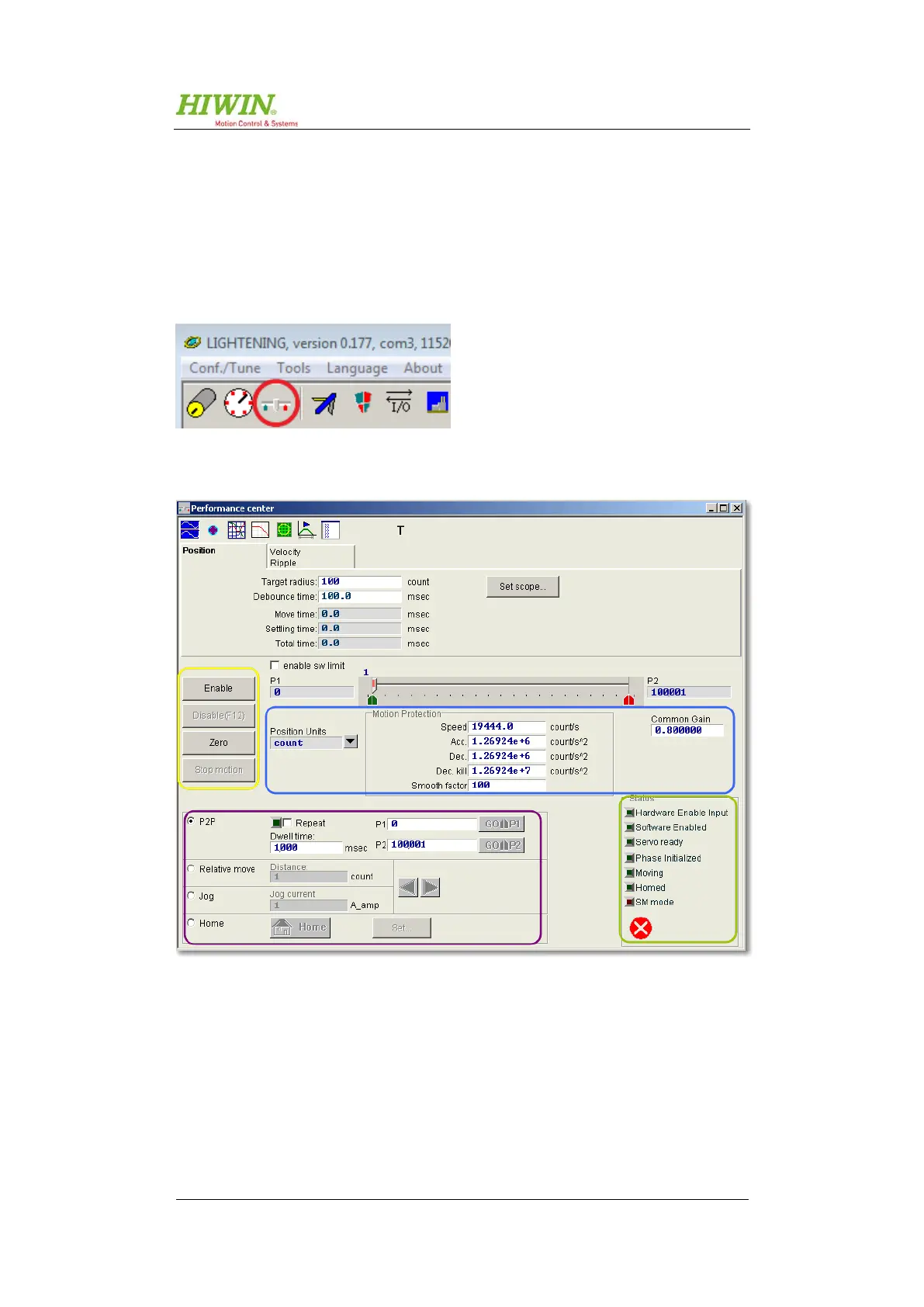

Figure 9.26: Launching the “performance center”
Main interface functions
Figure 9.27: Operating interface of the “Performance center”
