Assembly and Commissioning Instructions Servo amplifier D1-N

15.10.2015
Filter Schaffner FN2412-8-44
Maximum
continuous voltage
250 VAC, 50/60 Hz
Operating frequency
AC up to 400 Hz
Rated currents
8 A at 50 °C, 8,8 A at 40 °C
Overvoltage protection
2 kV, IEC 61000-4-5
Table 5.2: Technical data for Schaffner FN2412-8-44 filter
5.2.2
3-phase mains connection with mains filter

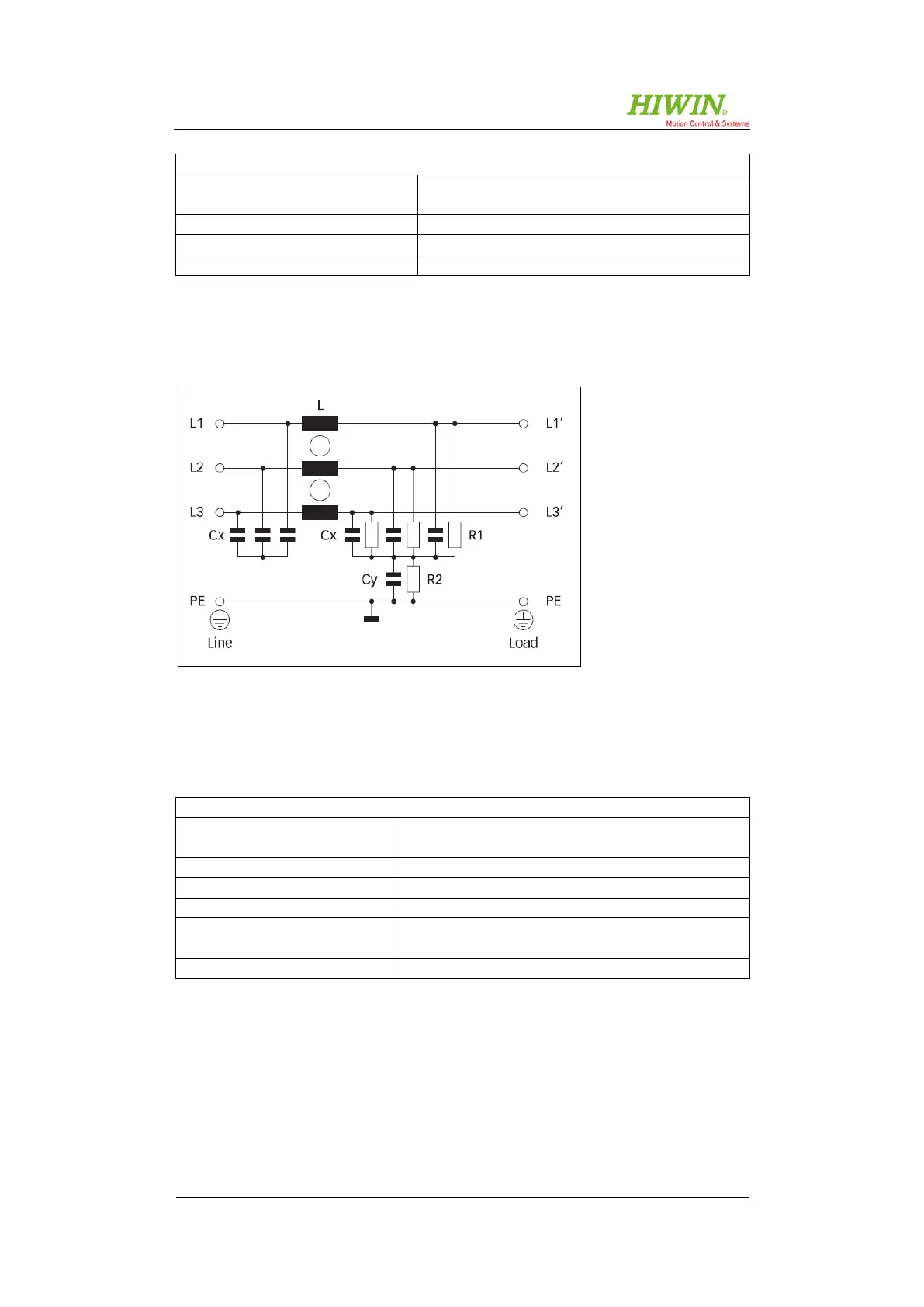

Figure 5.4: 3-phase mains filter
HIWIN recommends the mains filter described in Table 5.3 for the D1-N's 3-phase
mains connection.
Filter Schaffner FN3258-7-45
Maximum
continuous voltage
30 × 480/277 VAC
Operating frequency
AC up to 60 Hz
Rated currents
7 A at 50 °C, 7,7 A at 40 °C
Rated power
4 kW
Leakage current at
400 V AC/50 Hz
33 mA
Overvoltage protection
2 kV, IEC 61000-4-5
Table 5.3: Technical data for Schaffner FN3258-7-45 filter
Note:
The distance between filter and drive amplifier should be less than 1 m .

