Assembly and Commissioning Instructions Servo amplifier D1-N
35 B Encoder output track B, differential
36 /B Encoder output track /B, differential
37 Z Encoder output track Z, differential
38 /Z Encoder output track /Z, differential
39 CZ Z-track open collector output
40 DSF- Reset function input for STO
Table 5.7: X6 – inputs and outputs connection
Please only use shielded cables for all cables carrying encoder signals. This
minimises the effect of perturbation and avoids incorrect motor responses.

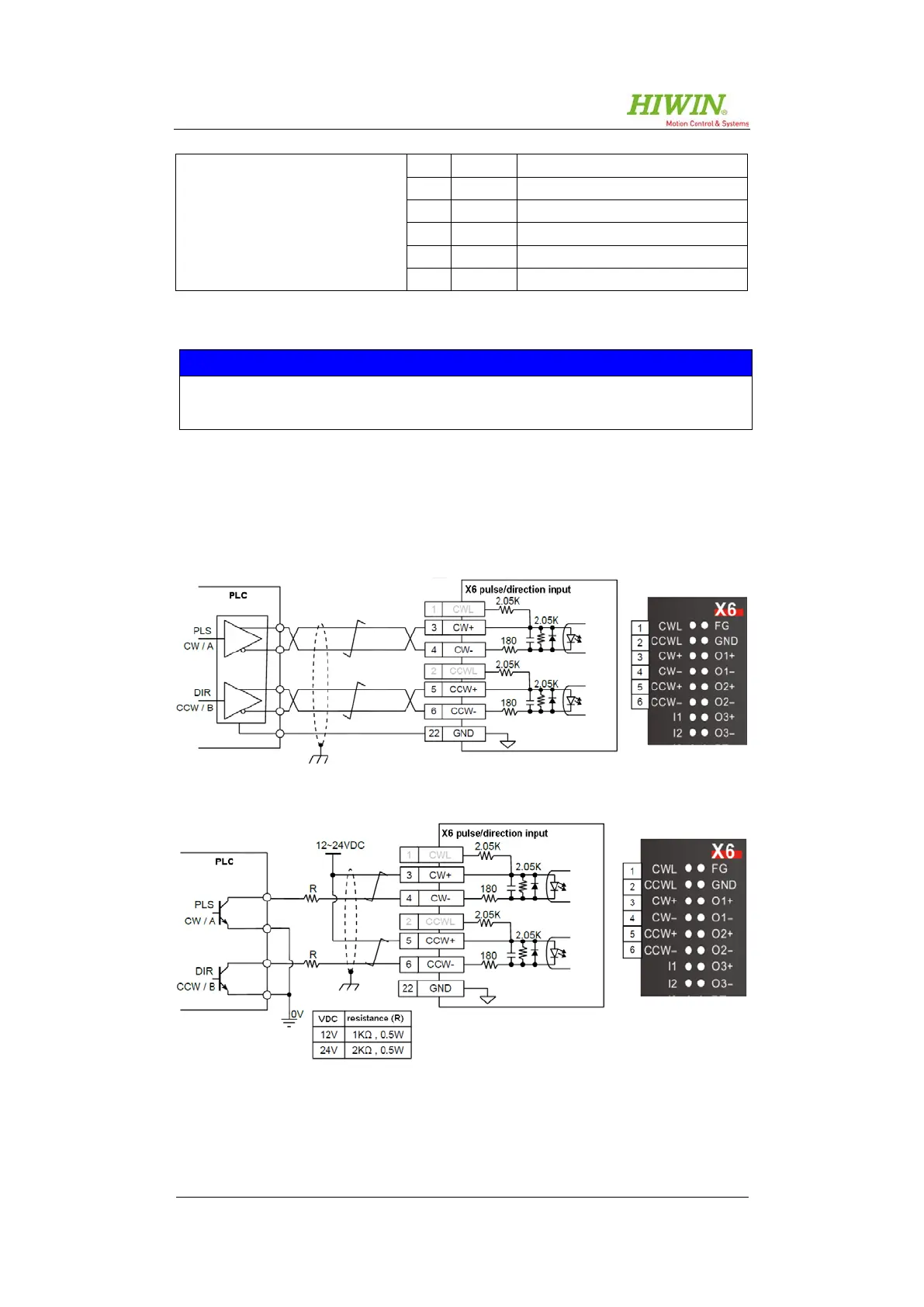

Wiring variants for step/direction input on X6
The step/direction input on the D1-N can process both differential signals and sin-
gle-ended signals. The step/direction input must be wired on the X6 connector
according to the signal type. The following diagrams show the various possibilities.
Figure 5.12: Step/direction, differential
Figure 5.13: “Single-ended” step/direction with external resistor
