Assembly and Commissioning Instructions Servo amplifier D1-N

15.10.2015
8.7
Digital inputs and outputs / “I/O center”
In the
“I/O center”
all digital inputs and outputs for the D1-N can be configured
and monitored.
Launch the
“I/O center”
by clicking on the corresponding button in the main oper-
ating interface or the “Lightening” “Conf./Tune” menu.

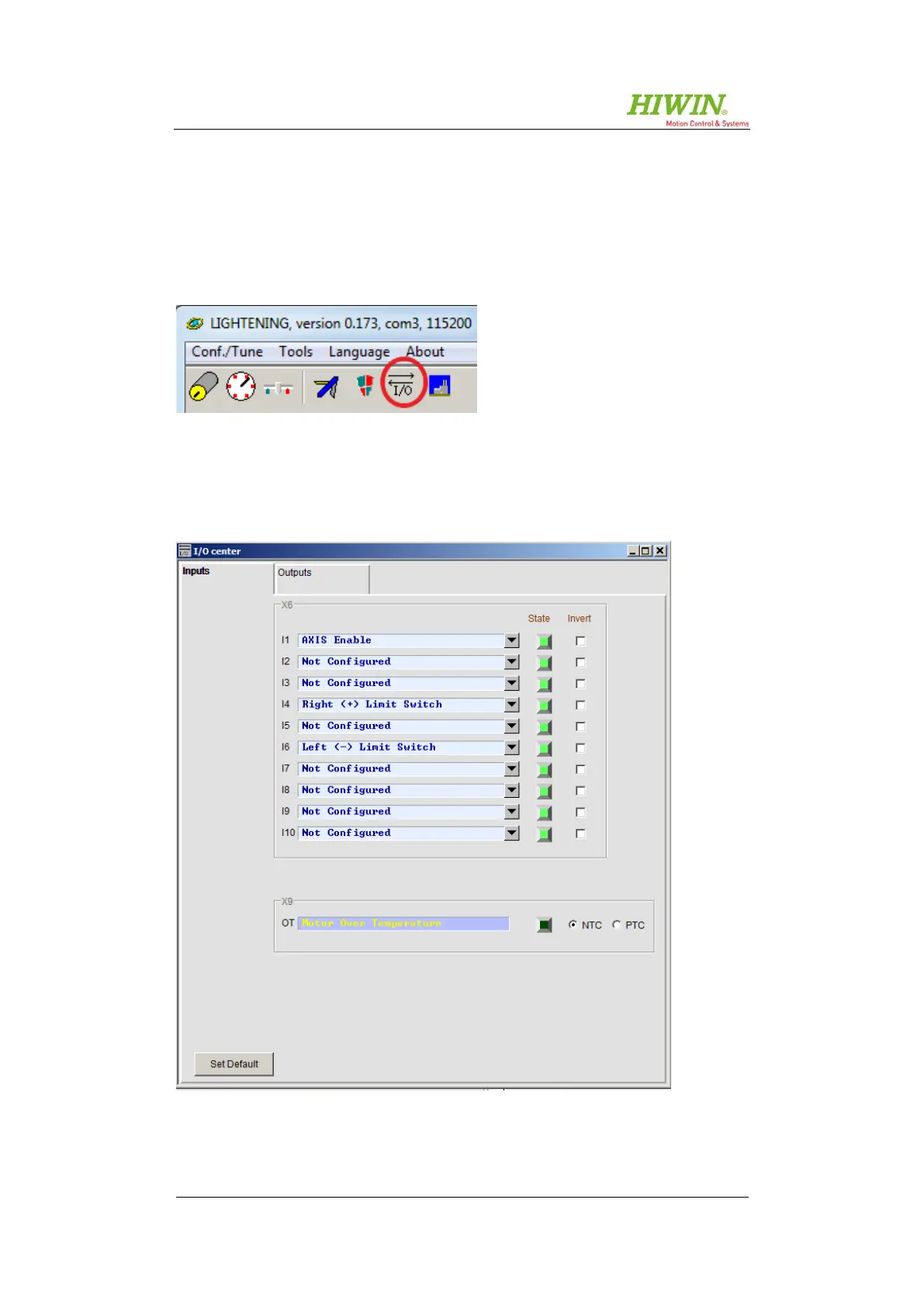

Figure 8.74: Launching “I/O center”
8.7.1
Inputs
Any function can be assigned to each input in the “Inputs” tab. The logic of each
input can also be inverted to undertake adaptation, e.g. to the switch type used.
Figure 8.75: “I/O center” – inputs
