Assembly and Commissioning Instructions Servo amplifier D1-N

15.10.2015
8.5.3
Error map
The D1-N drive amplifier allows up to 16 000 position correction points to be stored
directly in the drive amplifier. The raw data for the correction points can be cap-
tured with a glass scale or laser interferometer for example.

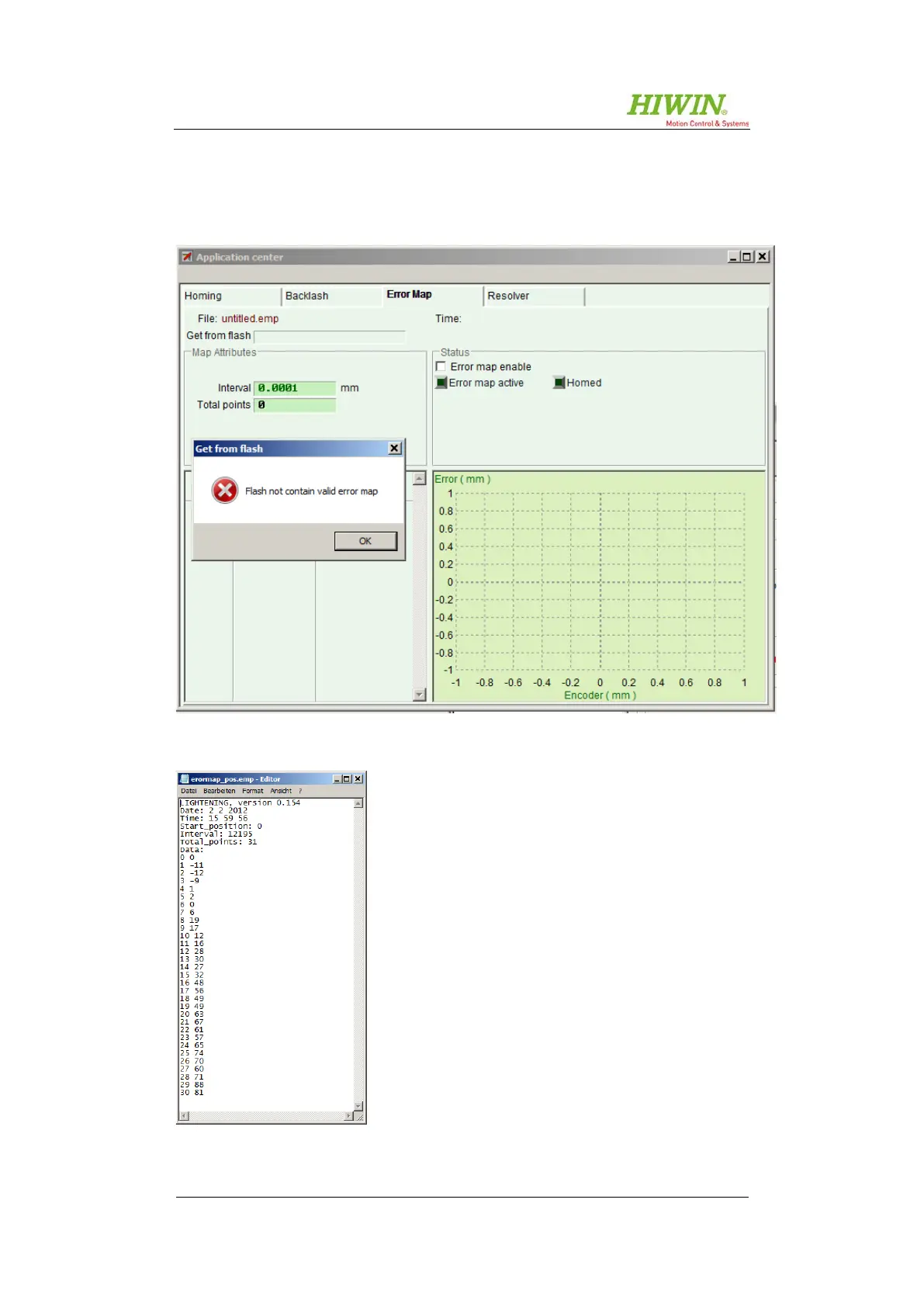

Figure 8.66: “Application center” – error map
Figure 8.67: Example of an error map
