Assembly and Commissioning Instructions Servo amplifier D1-N 15.10.2015
The shortcut bar makes it easier for the user to find commonly needed functions.
The left area contains the functions from the menus.

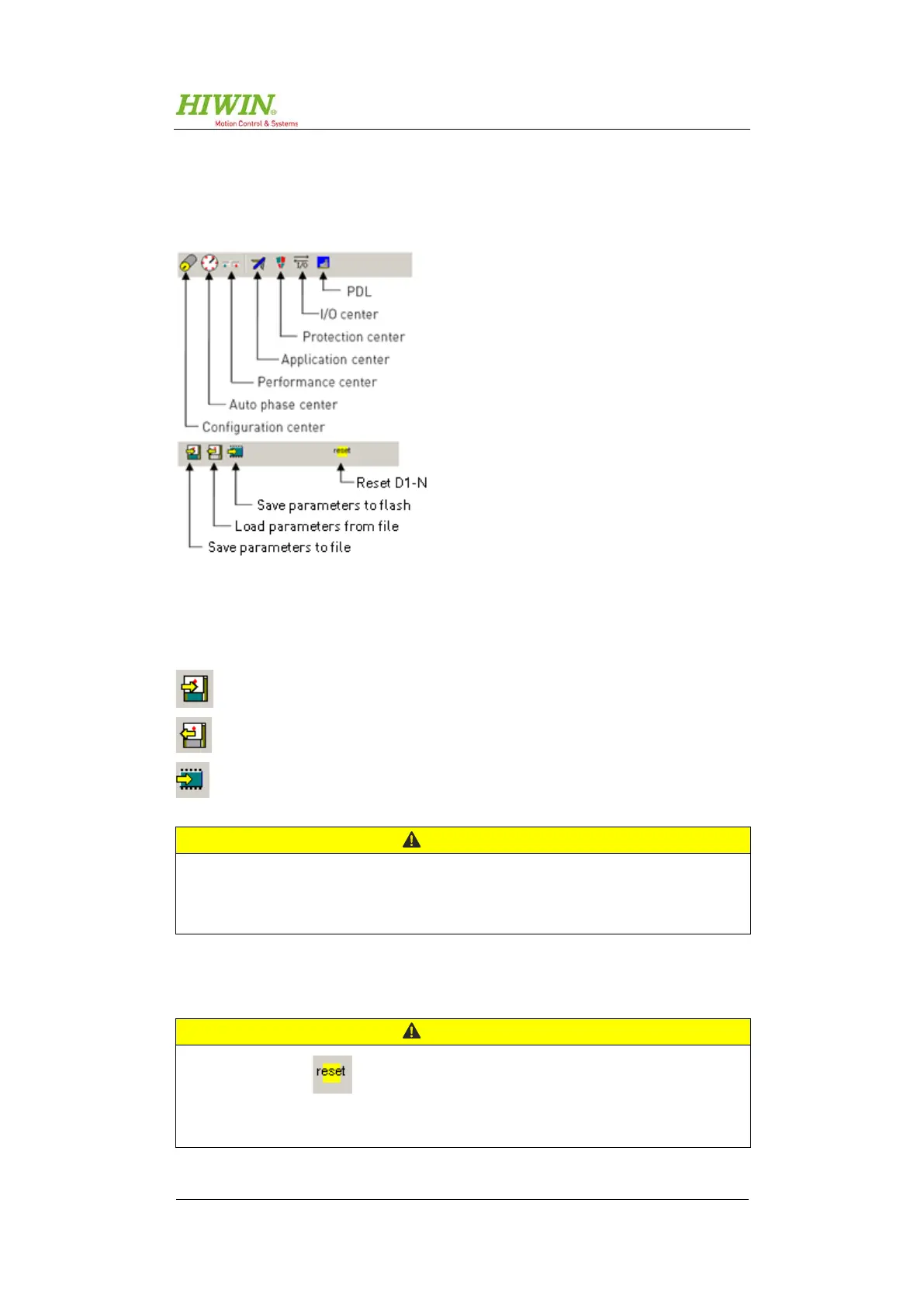

Figure 8.14: Shortcut bar
The main interface provides the
and
functions for loading parame-
ter sets or saving on the PC.
Save current drive amplifier parameters to file.
Transfer parameters from file to drive amplifier.
Write parameters from drive amplifier RAM to drive amplifier flash (save
permanently in drive amplifier).
If the “Save parameters from amplifier RAM to flash” button is pressed while
the motor is energised/moving, the drive amplifier initiates a quick stop
(Dec. Kill) and de-energises the motor.
Clicking on the
symbol (yellow square) triggers a drive amplifier restart.
“Reset amplifier” button while the motor is ener-
gised/moving, the drive amplifier immediately de-energises the motor. The
motor is NOT decelerated by the drive amplifier.
