Hiwin D1-N Series - Motor Parameterisation with Endat 2.2 Encoder

100 / 183
Assembly and Commissioning Instructions Servo amplifier D1-N

15.10.2015
8.4.4
Motor parameterisation with EnDat 2.2 encoder
If an encoder with EnDat 2.2 protocol is connected, the configuration center detects
this automatically, and there is no other encoder in the selection window.

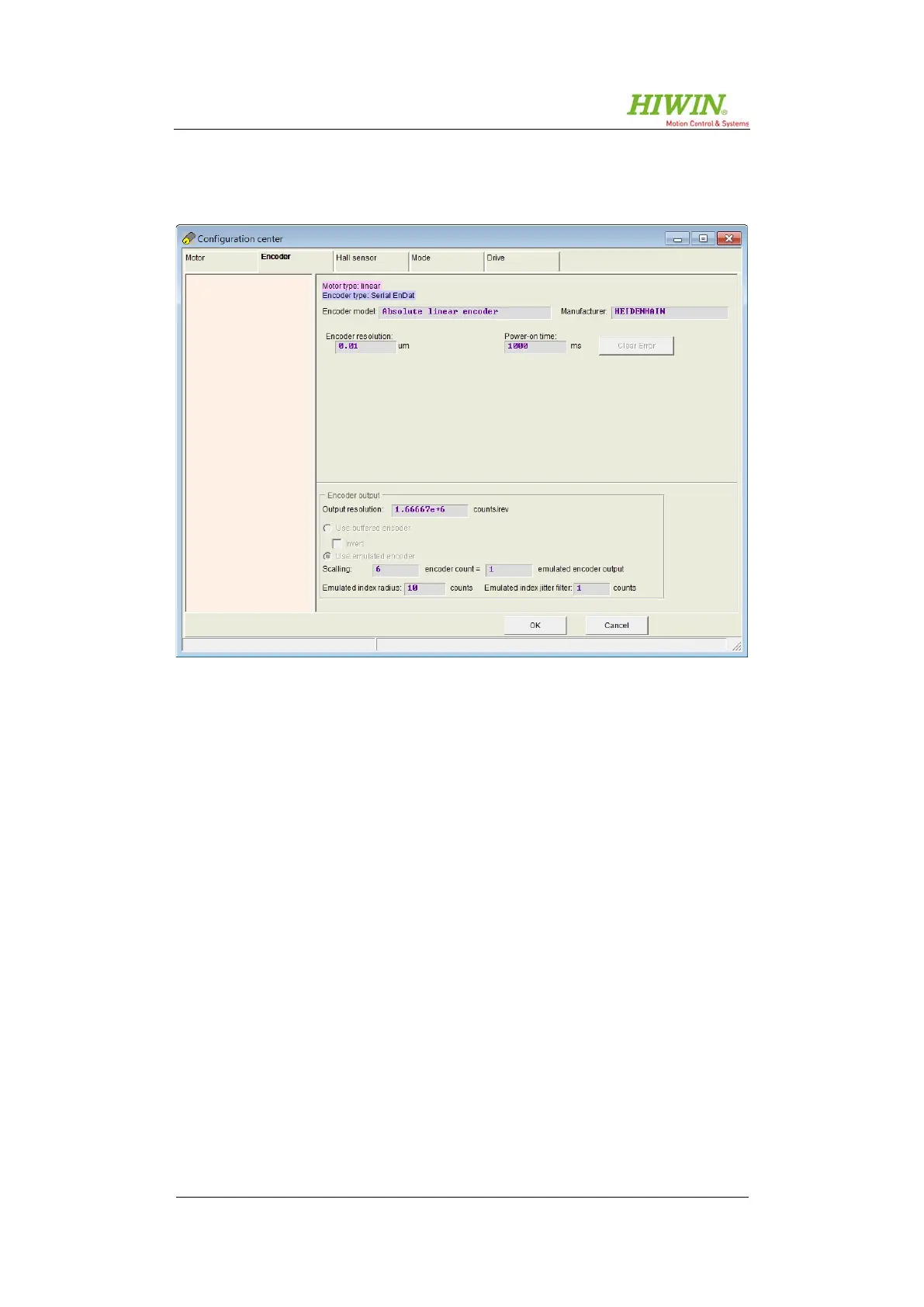

Figure 8.46: “Configuration Center” – Example LM encoder with EnDat 2.2
