Assembly and Commissioning Instructions Servo amplifier D1-N

15.10.2015
5.4

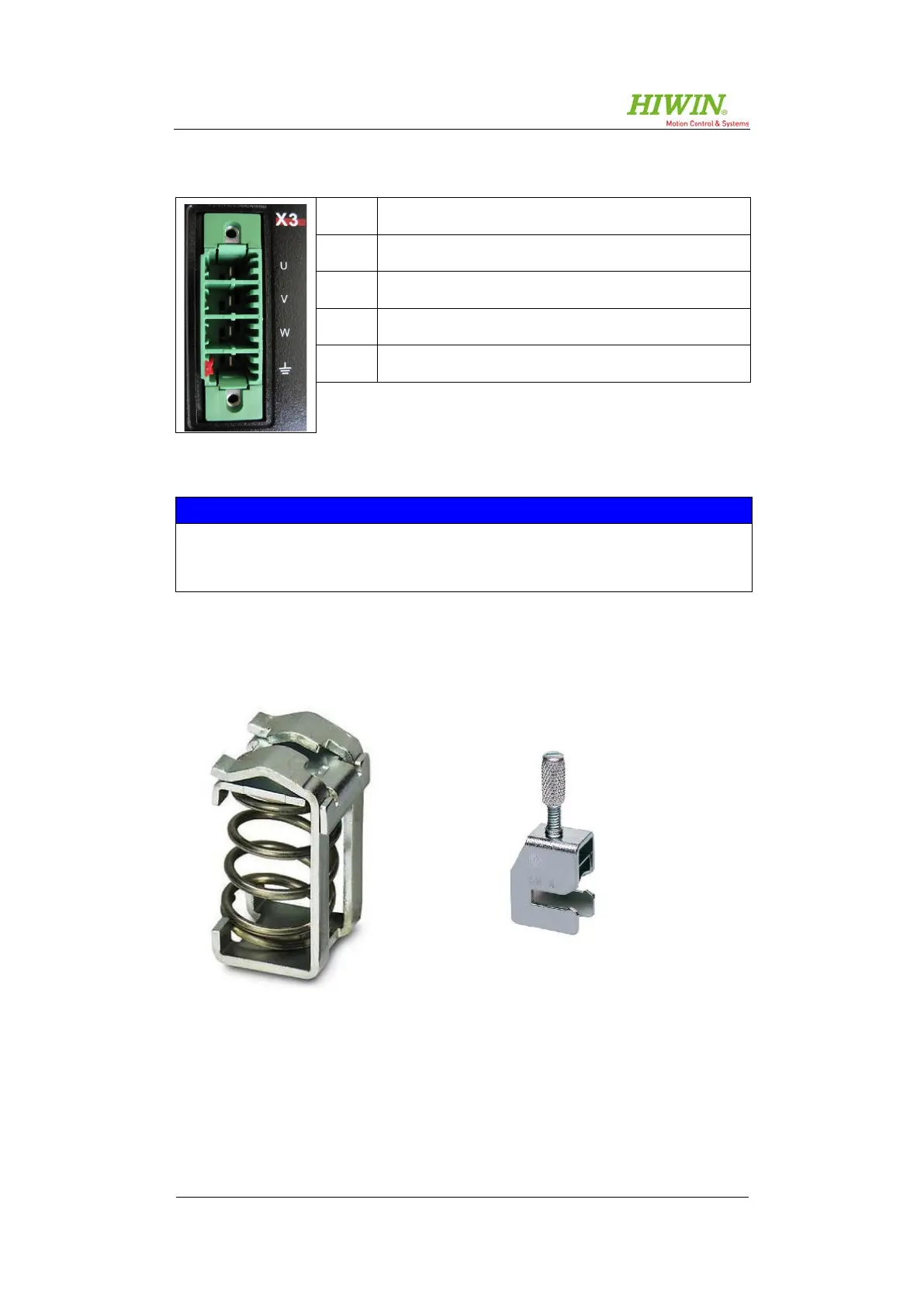

X3 – motor connection
Pin
Name
1
U
2
V
3
W
4
PE motor
Table 5.5: X3 – motor connection
Electromagnetic interference can be eliminated only when the motor cable is
shielded. The motor cable shielding must be connected over a large area to the
assembly plate (e.g. Figure 5.7).
Figure 5.7: Shield terminal
ATTENTION!
The motor cable without output filter must not exceed a length of 15 m. If
longer cables are used, suitable filters must be fitted to effectively dampen
any voltage peaks which arise.
