Hiwin D1-N Series - Backlash

Assembly and Commissioning Instructions Servo amplifier D1-N  15.10.2015
109 / 183
8.5.2
Backlash
The accuracy for axes with backlash can be increased by means of backlash com-
pensation. The backlash simply needs to be known in advance.

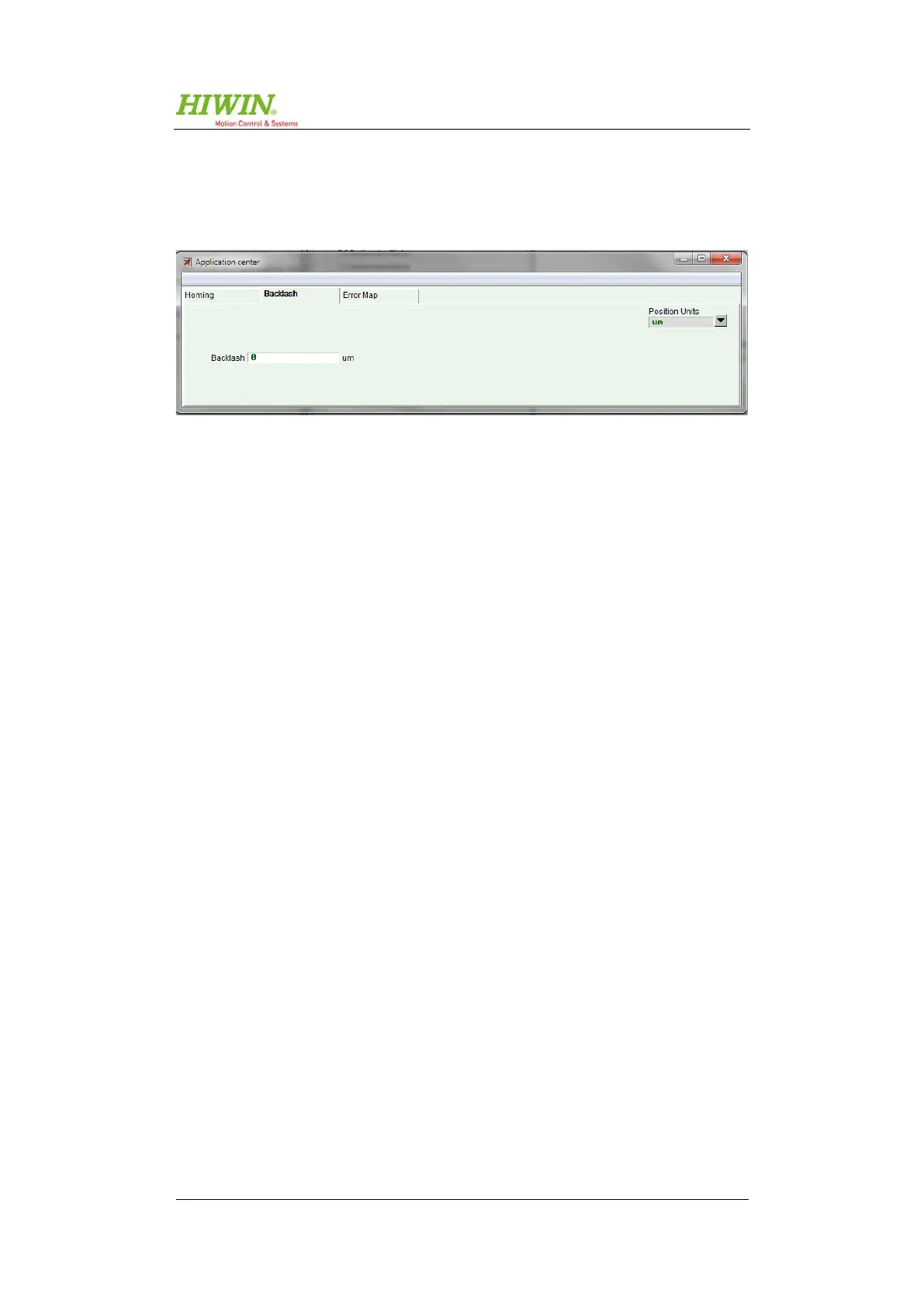

Figure 8.65: “Application center” – backlash
