Method 33:
• Move at “Slower Speed” in the negative direction
• Until the index pulse is reached
This method is intended for position measuring systems that feature only one index
mark (single index).

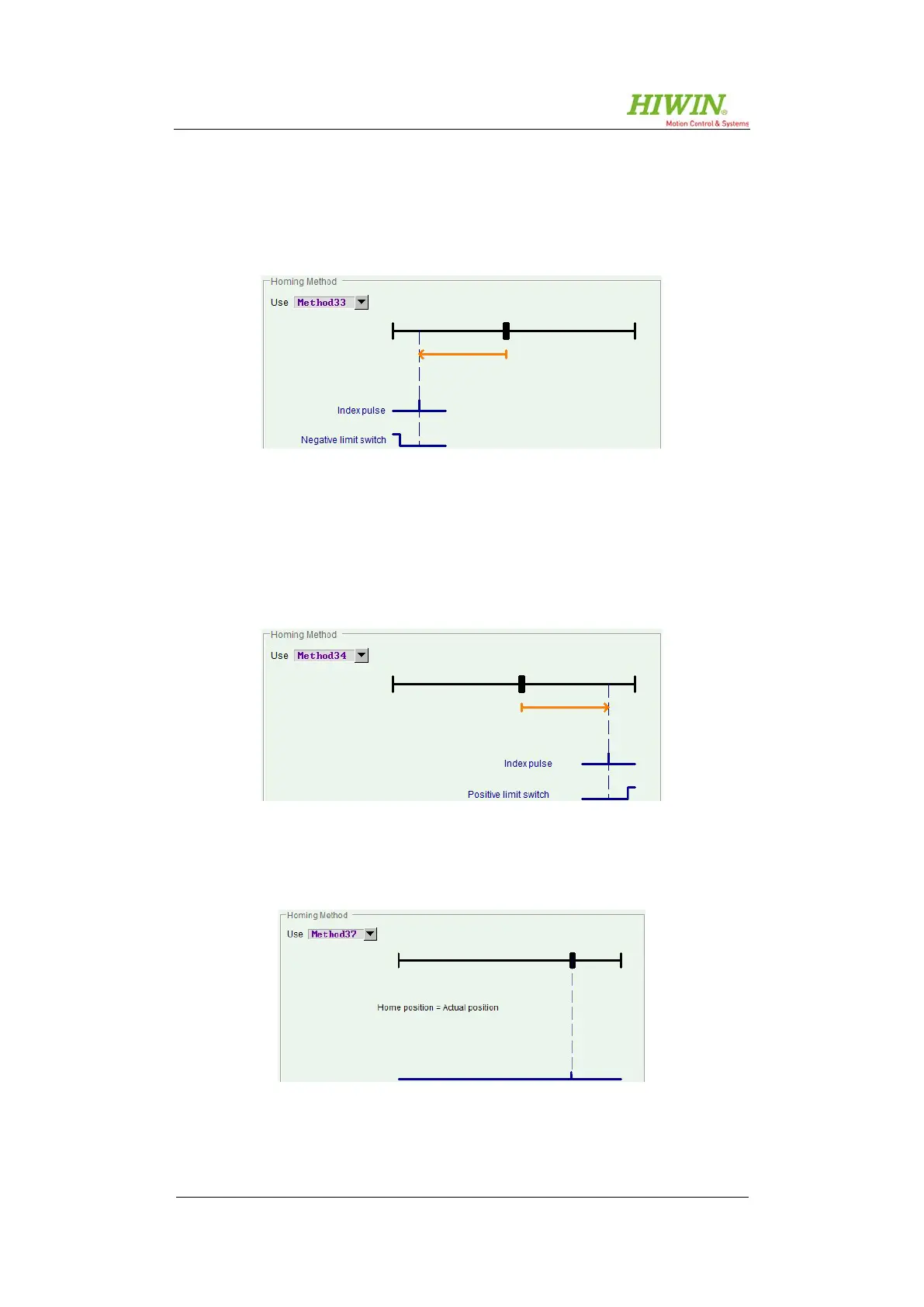

Figure 8.62: Homing method 33
Method 34:
• Move at “Slower Speed” in the positive direction
• Until the index pulse is reached
This method is intended for position measuring systems that feature only one index
mark (single index).
Figure 8.63: Homing method 34
Method 37:
With this method, the current position becomes the zero position.
Figure 8.64: Homing method 37
