Assembly and Commissioning Instructions Servo amplifier D1-N 15.10.2015
When inverting the I/O settings, a “controller enable” may be issued
and the motor may commutate and move in an uncontrolled manner. For
safety reasons, initial start-up should be performed with the motor plug dis-
connected to prevent accidents.
The
LED shows the current state of the input. Please check that all con-
nected inputs are functioning correctly when commissioning.
The
button resets all I/O settings to their default values.
Note: If the “Axis Enable” function is not used, this input must be inverted other-
wise a controller enable is not possible.
The outputs of the D1-N are configured in the “Outputs” tab. The status of each
output is also shown in this tab. As with the inputs, inversion is also possible.
Clicking on the
button opens a new window for function assign-
ment of the outputs.

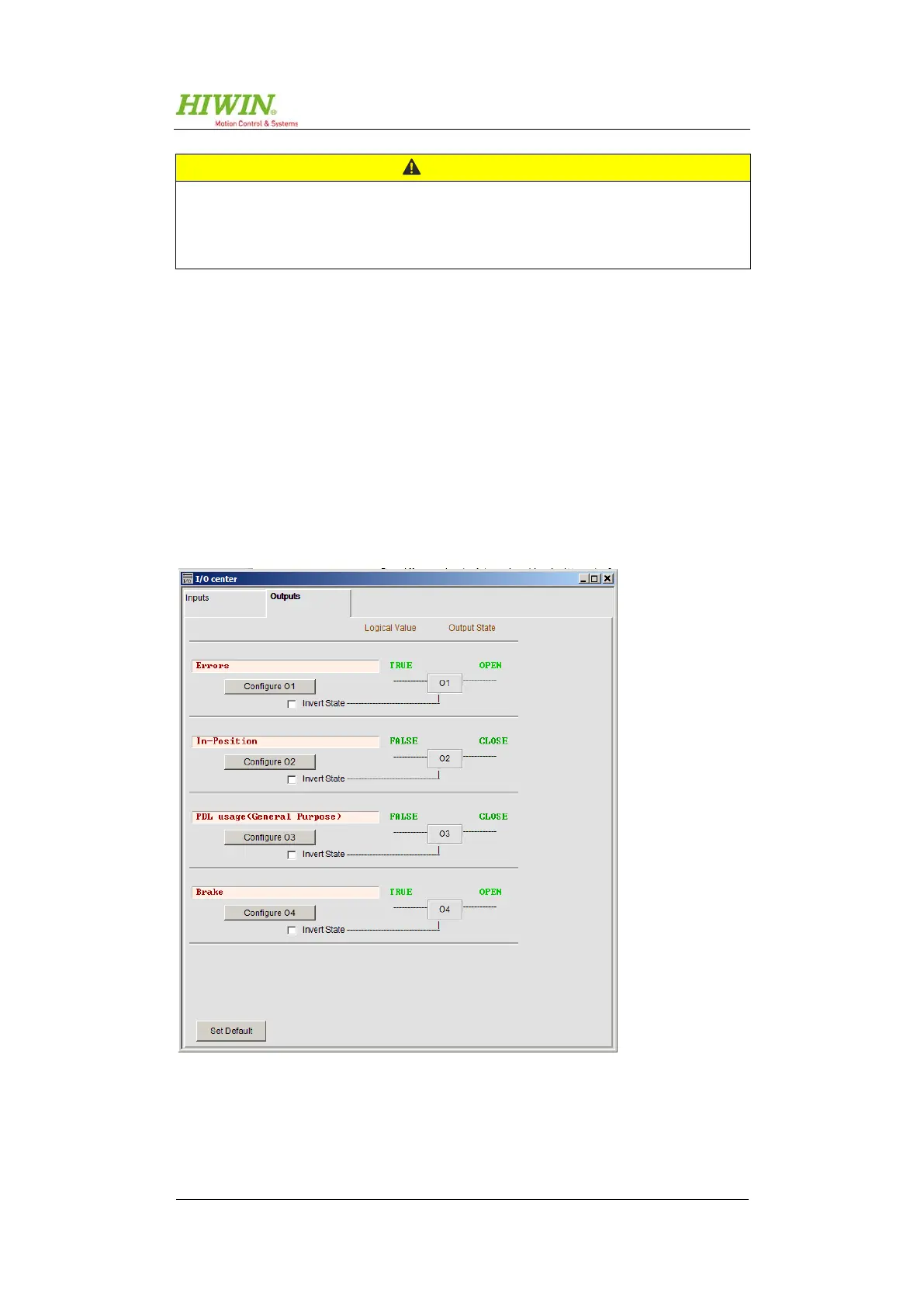

Figure 8.76: “I/O center” – outputs
