8.5.4
“Resolver”
Motors with resolver feedback can also be operated on the D1-N. The resolver is
learnt by clicking on the "Start learning" button.

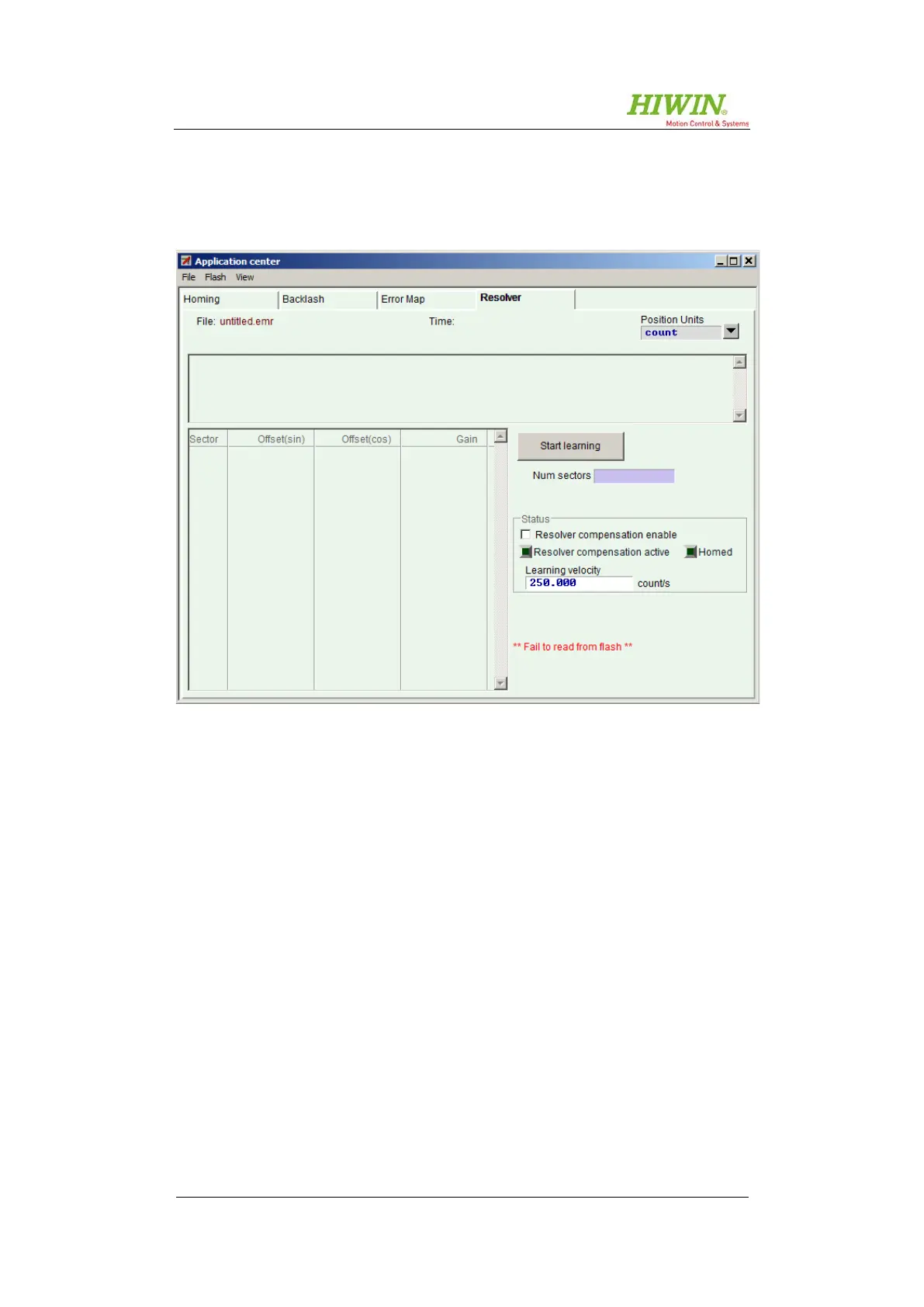

Figure 8.69: “Application center” – resolver
