4.3
Switch cabinet assembly
CAUTION!
During assembly, ensure sufficient earthing of the drive amplifier. Conductive
screws should be used for this purpose. The assembly surface may have to
be treated to produce a low-ohm electrical connection between the housing
and assembly plate in the switch cabinet.
The following minimum spacing must be observed when assembling several drive
amplifiers.

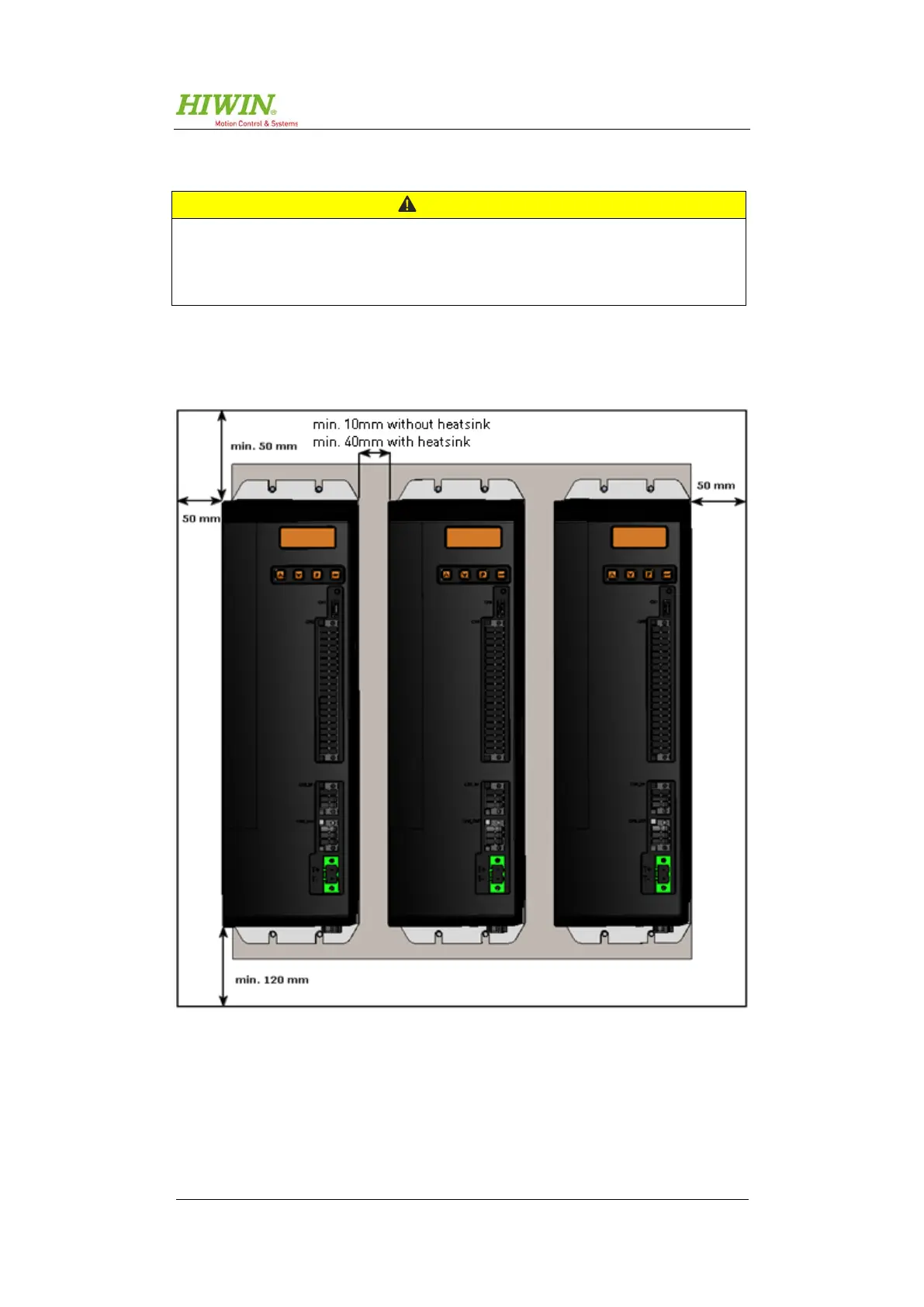

Figure 4.4: Minimum spacing in switch cabinet
