74 / 183
Assembly and Commissioning Instructions Servo amplifier D1-N
AC servo motor parameterisation
AC servo motor selection
In the example shown, only the drive connection to the machine still needs setting.
In the case of a ball screw, the mass inertia for the spindle, moved mass, spindle
lead and any gear factor used should be entered.

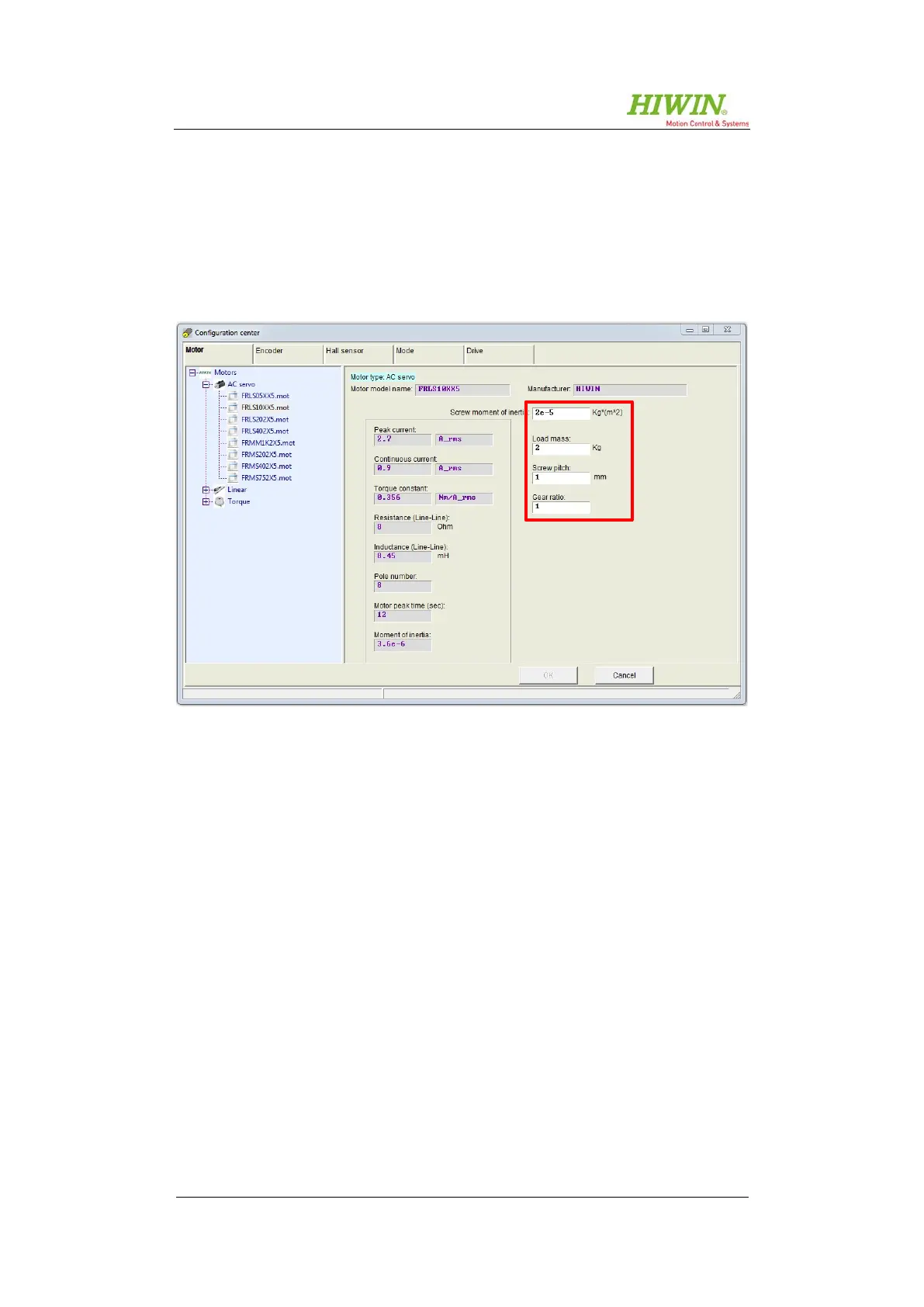

Figure 8.16: “Configuration center” – AC servo motor without CoE
When using a toothed belt axis, the spindle pitch corresponds to the circumference
of the driving belt wheel (feed constant).
If a HIWIN AC servo motor has been selected, the matching encoder is automati-
cally selected.
If using a non-HIWIN motor, all motor parameters must be taken from the motor
manufacturer's manual and entered in the corresponding fields. The “Customized
AC-Servo” with these parameter settings can be added to the motor database.
