“Protection center” (limitations)

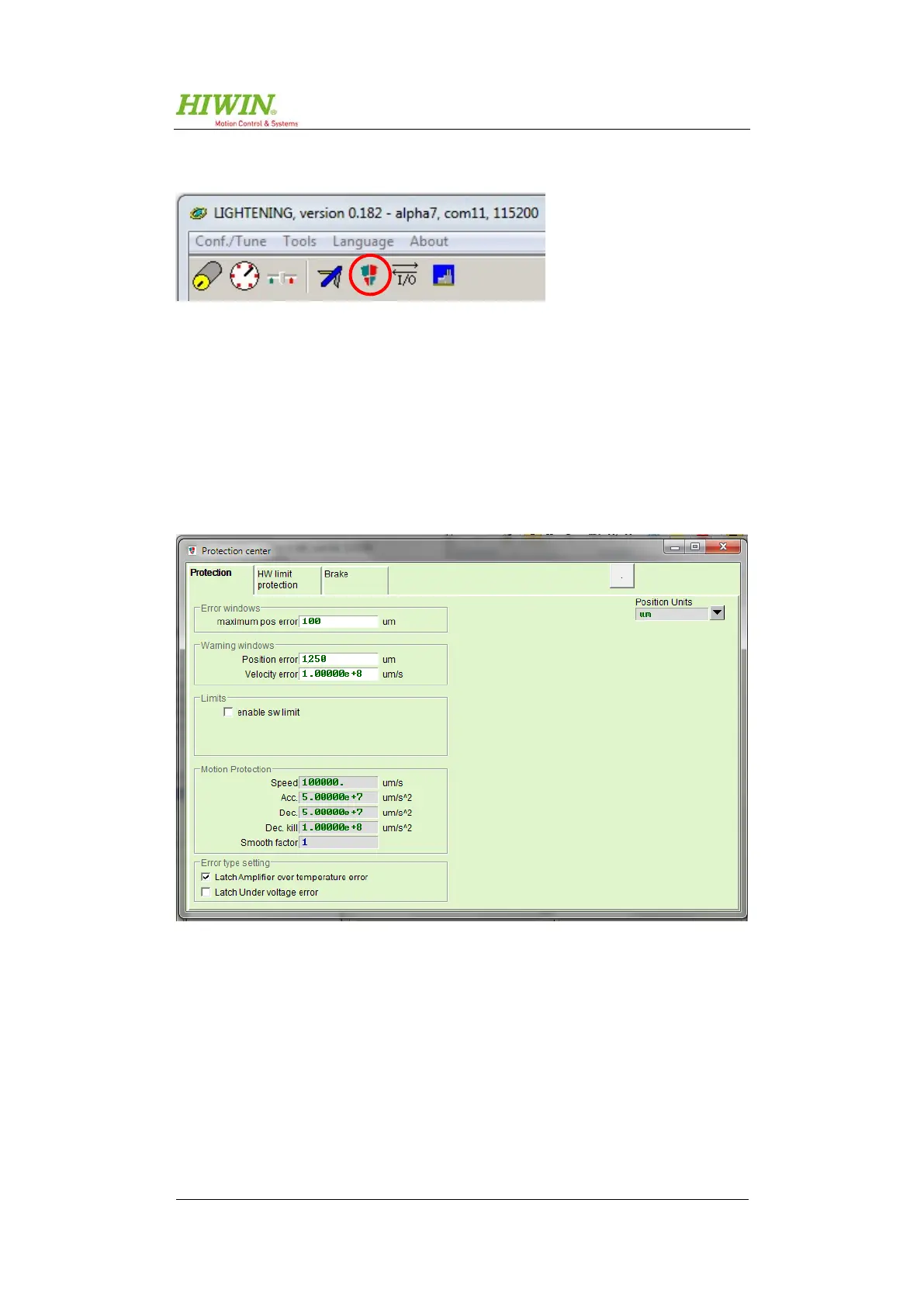

Figure 8.70: Toolbar
Depending on application, the position error may have to be kept within certain
limits. The same applies to the speed. The “protection center” therefore allows you
to set limit values for these parameters. The software limit switches “sw limit” can
also be set here. If the system is not allowed to exceed a particular speed range, or
the acceleration needs to be limited, this can also be done in the “protection cen-
ter”.
