122 / 183
Assembly and Commissioning Instructions Servo amplifier D1-N
Pressing the button “Auto phase center” opens the window depicted in Figure 9.3.
Pressing the button “View” opens the “Invert” area. In this “Invert” area, users can
correct wiring errors by ticking the motor or encoder to invert their connections.
The button “Details” lets users invert the “Toggle Direction” in the software with-
out any changes to the wiring..

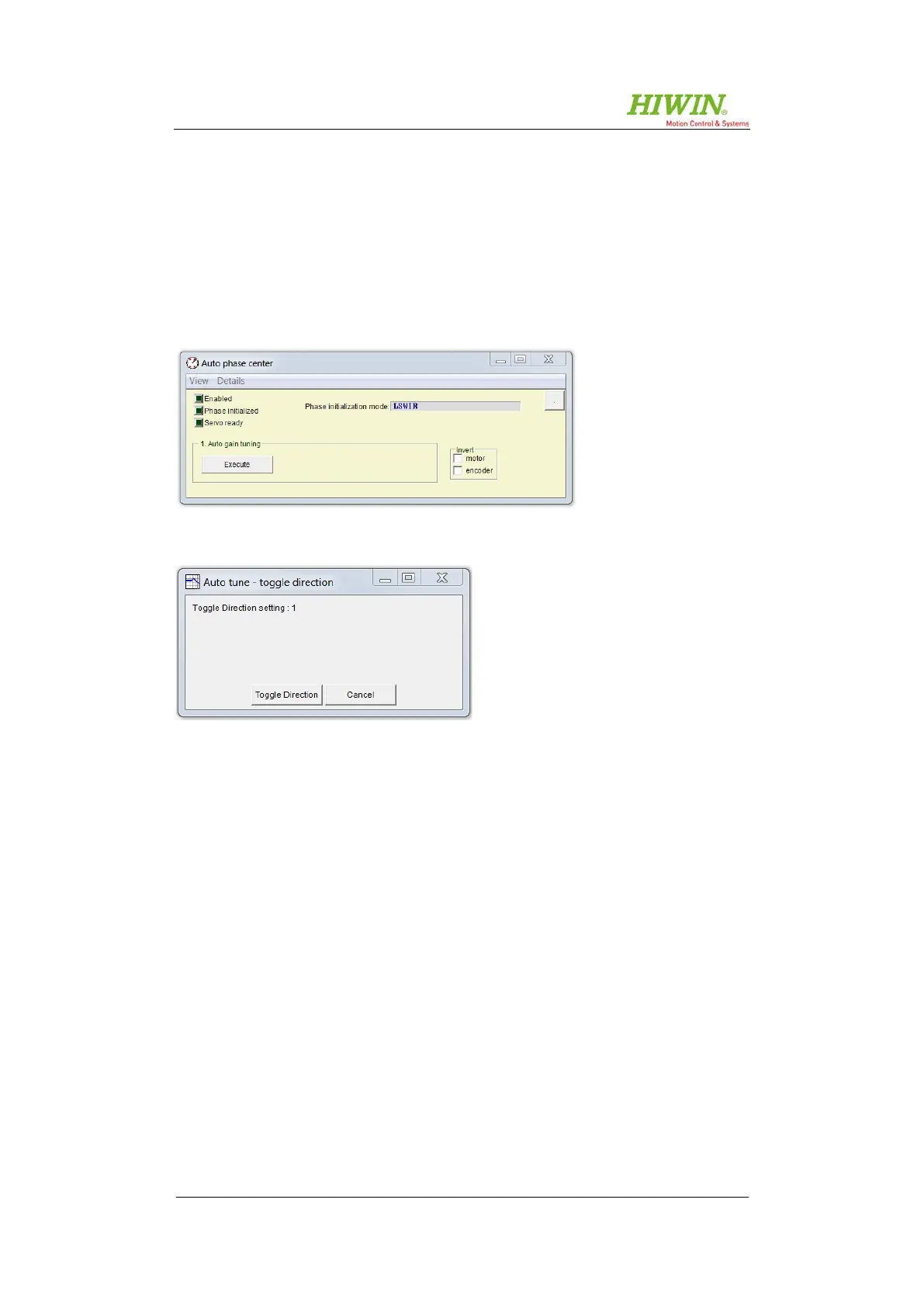

Figure 9.4: “Auto phase center” – Advanced View
Figure 9.5: “Auto phase center” – Toggle Direction
