Honeywell MX7 Tecton User Manual

5 - 71
Initial Setup
The initial setup of ActiveSync must be made via a USB connection. Partnerships can only be created using USB cable
connection.
Connect via USB
The default connection type is USB Client. This is the only connection option supported on the MX7 Tecton.
To verify it is set to USB, select
Start > Settings > Connections > USB to PC
Ensure the check box for “Enable advanced network functionality” is checked. Tap OK to return to the Connections panel.
Connect the USB cable to the PC (the host) and the MX7 Tecton (the client) as detailed below. ActiveSync will start auto-
matically when the USB cable is connected.
When the MX7 Tecton loses connection, e.g., enters Suspend Mode, etc., the connection to ActiveSync will be lost. When
the MX7 Tecton resumes, the ActiveSync session will automatically re-connect.
Cable for USB ActiveSync Connection
MX7052CABLE - MX7 Tecton Charge/Comm Interface Cable with USB Client port for ActiveSync. USB end of cable
connects to PC/Laptop USB port.
• Connect the MX7 Tecton end of the cable to the I/O port on the bottom of the MX7 Tecton
• The USB type A connector on the cable connects to a USB port on a PC or laptop.
• It is not necessary to connect the power connector on the cable in order to use ActiveSync.
Explore
From the ActiveSync Dialog on the Desktop PC, tap the Explore button, which allows you to explore the mobile device from
the PC side, with some limitations. You can copy files to or from the mobile device by drag-and-drop. You will not be allowed
to delete files or copy files out of the \Windows folder on the mobile device. (Technically, the only files you cannot delete or
copy are ones marked as system files in the original build of the Windows image. This, however, includes most of the files
in the \Windows folder).
Backup Data Files using ActiveSync
Use the following information to backup data files from the mobile device to a PC using the appropriate cable and
ActiveSync.
Requirements
A partnership between the mobile device and ActiveSync has been established.
• A desktop or laptop PC with an available USB port and a mobile device with a USB port. The desktop or laptop PC
must be running Windows XP or greater.
• Use the specific USB cable as shown above in Connect via USB.
Connect
Connect the USB cable to the PC (the host) and the mobile device (the client).
The “Get Connected” wizard on the host PC checks COM ports to establish a connection for the first time.
Note: USB synchronization will start automatically when the cable is connected.
Disconnect
• Disconnect the cable from the MX7 Tecton.
• Open the status bar icon in the lower right hand corner of the status bar. Then tap the Disconnect button.

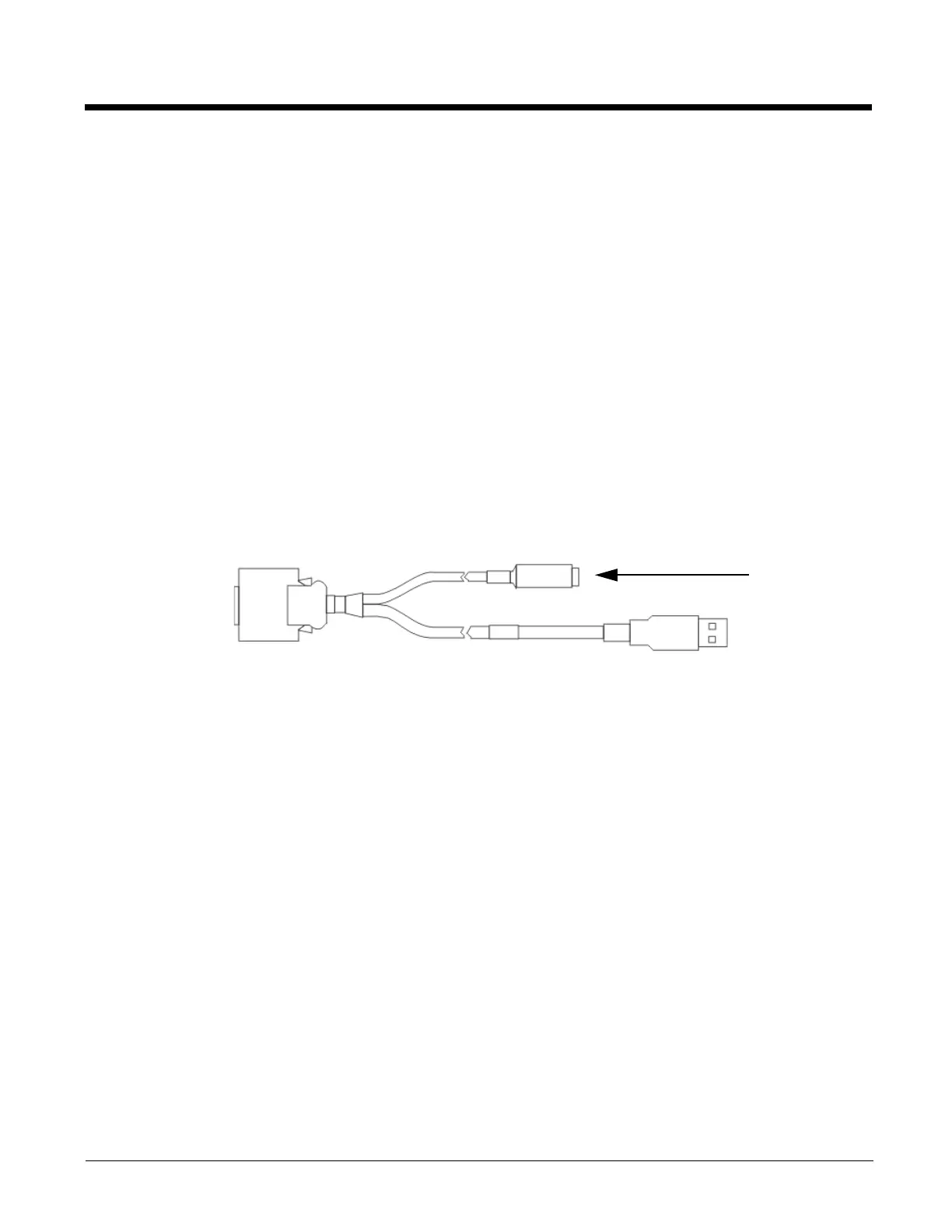

Insert A/C
Adapter Cable
Connect to Input/
Output Port
Connect to USB
client port

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
