14 - 35
Docking the MX7 Tecton in a Powered Vehicle Cradle
Note: Do not put the MX7 Tecton into the vehicle cradle until the cradle is securely fastened to the vehicle. Always put the
handle through the Handle Opening first or damage to the scanner aperture may occur.

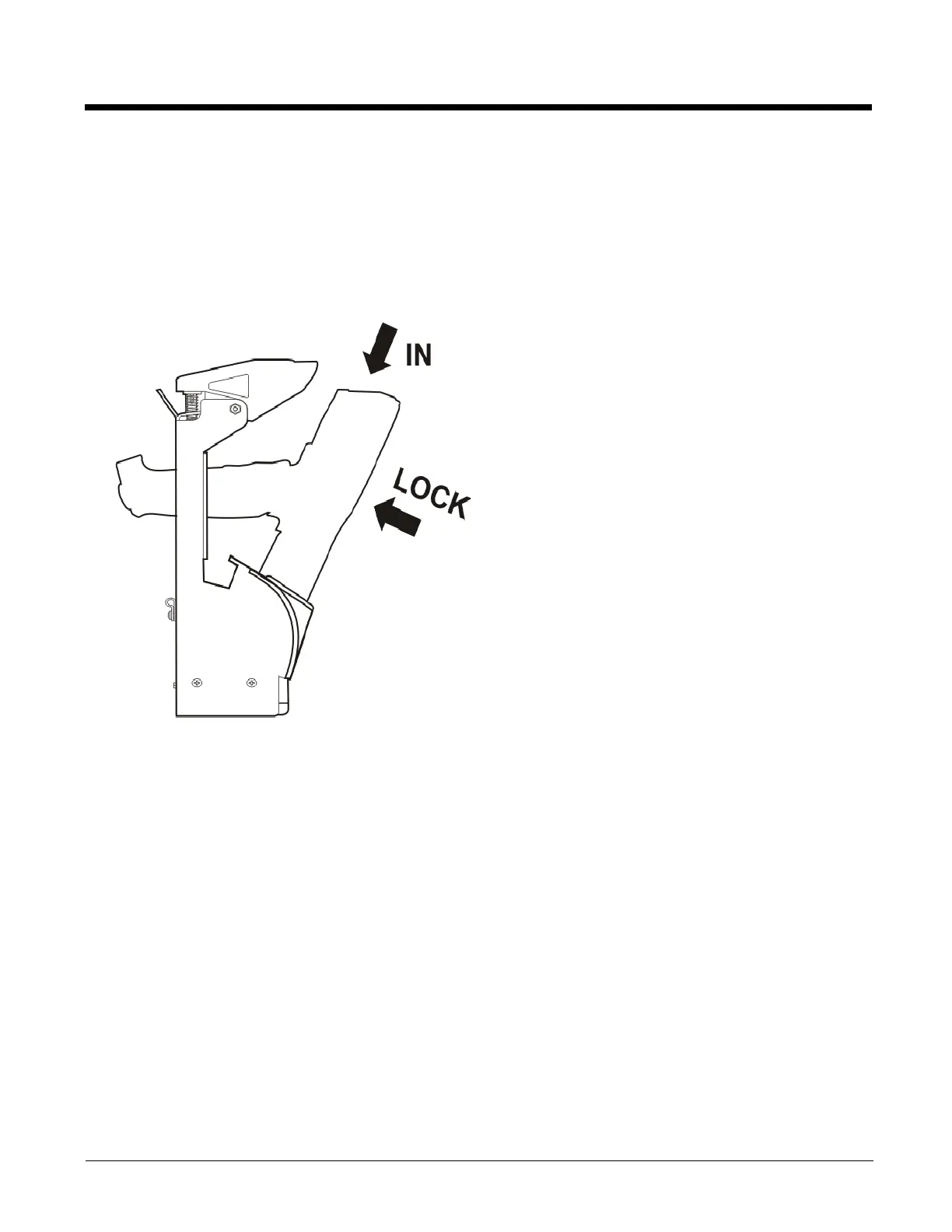

1. The MX7 Tecton is inserted into the cradle by pressing the base of the MX7 Tecton down into the cradle pocket until the
connector at the base of the MX7 Tecton clicks into place with the charging connector at the bottom of the docking well.
2. If the cradle is connected to a power source, the Docked LED illuminates.
3. Firmly press the MX7 Tecton backward until the Retainer snaps forward, its latches catching on the front of the MX7
Tecton, securing it in the cradle.
Do not slam the MX7 Tecton into the cradle pocket. Damage to the cradle and MX7 Tecton components may occur. If the
vehicle cradle or MX7 Tecton is damaged, it must be removed from service and repaired before placing it into service again.
