Desktop Cradle
Serial Port
The connector is industry-standard RS232 and is a PC/AT standard 9-pin D male connector.
Note: Tethered scanners must be connected to powered cradles.
Note: Pin 9 of this port is connected to +5 VDC and only approved Honeywell cables are to be used for communication
between the cradle and external devices.
Operating Temperature 32 F to 100° F / -0° C to 40° C
The AC Power Adapter is only intended for use in a 25°C (77°F) maximum ambient
temperature environment.
Storage Temperature -40° F to 180° F / -40° C to 80° C
Humidity Operates in a relative humidity of 5 – 95% (non-condensing)
Weight 18 oz / 500 grams
Dimensions H 3.5 in x W 4.25 in x L 7.5 in
Temperature
Operating 32° F to 104° F / 0° C to 40° C (charger On, no charging in progress)
Charging 50° F to 104° F / 10° C to 40° C (spare battery charger is charging)
Storage -4° F to 158° F / -20° C to 70° C
Humidity 5% to 90% (non-condensing) at 104° F / 40° C
IEC 60529 Compliant to IP40
Ports Power, MX7 Tecton Input/Output and serial port

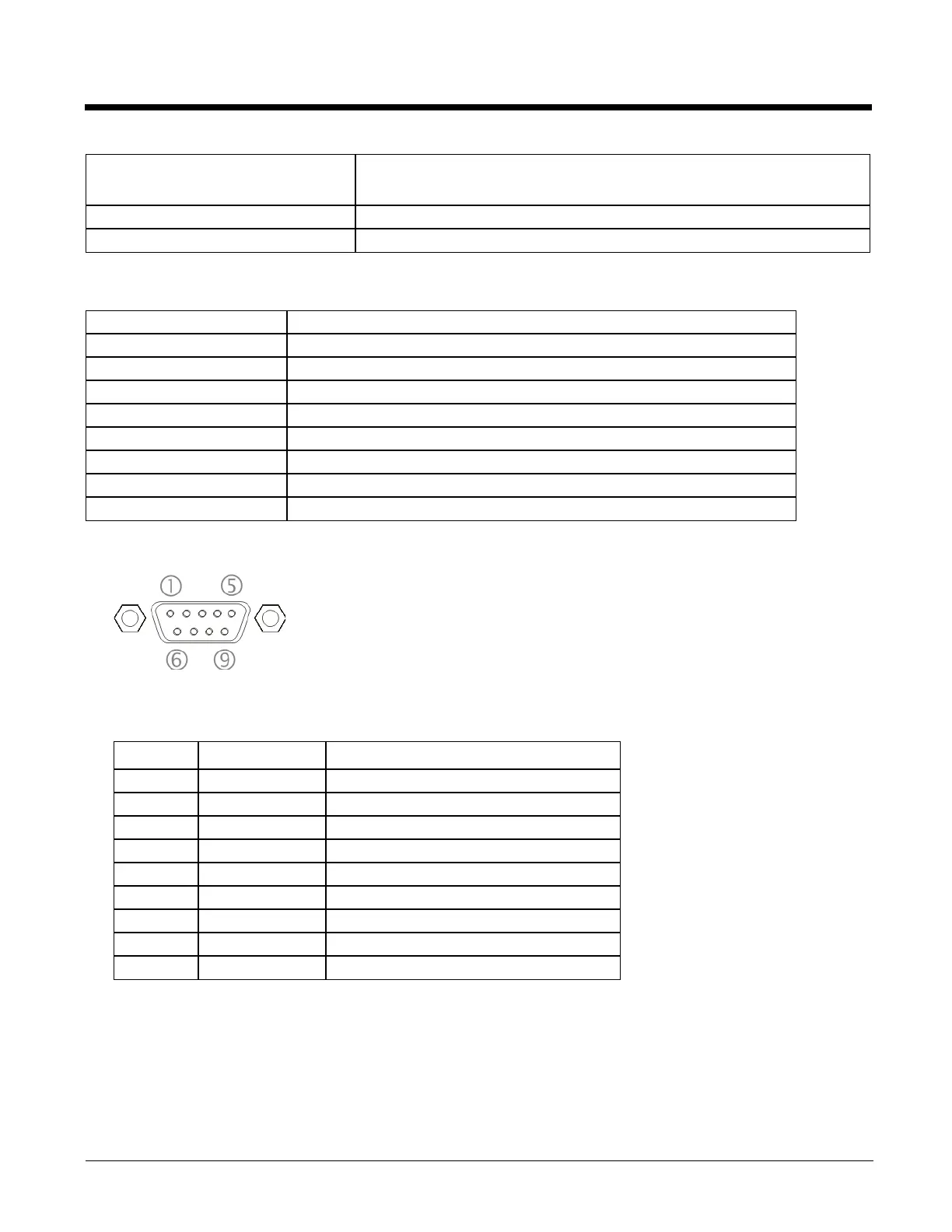

Pin Signal Description
1 DCD Data Carrier Detect
2 RXD Received Data – Input
3 TXD Transmitted Data – Output
4 DTR Data Terminal Ready
5 GND Signal/Power Ground
6 DSR Data Set Ready
7 RTS Request to Send
8 CTS Clear To Send
9 RI or Power +5 VDC sourced by the Cradle
