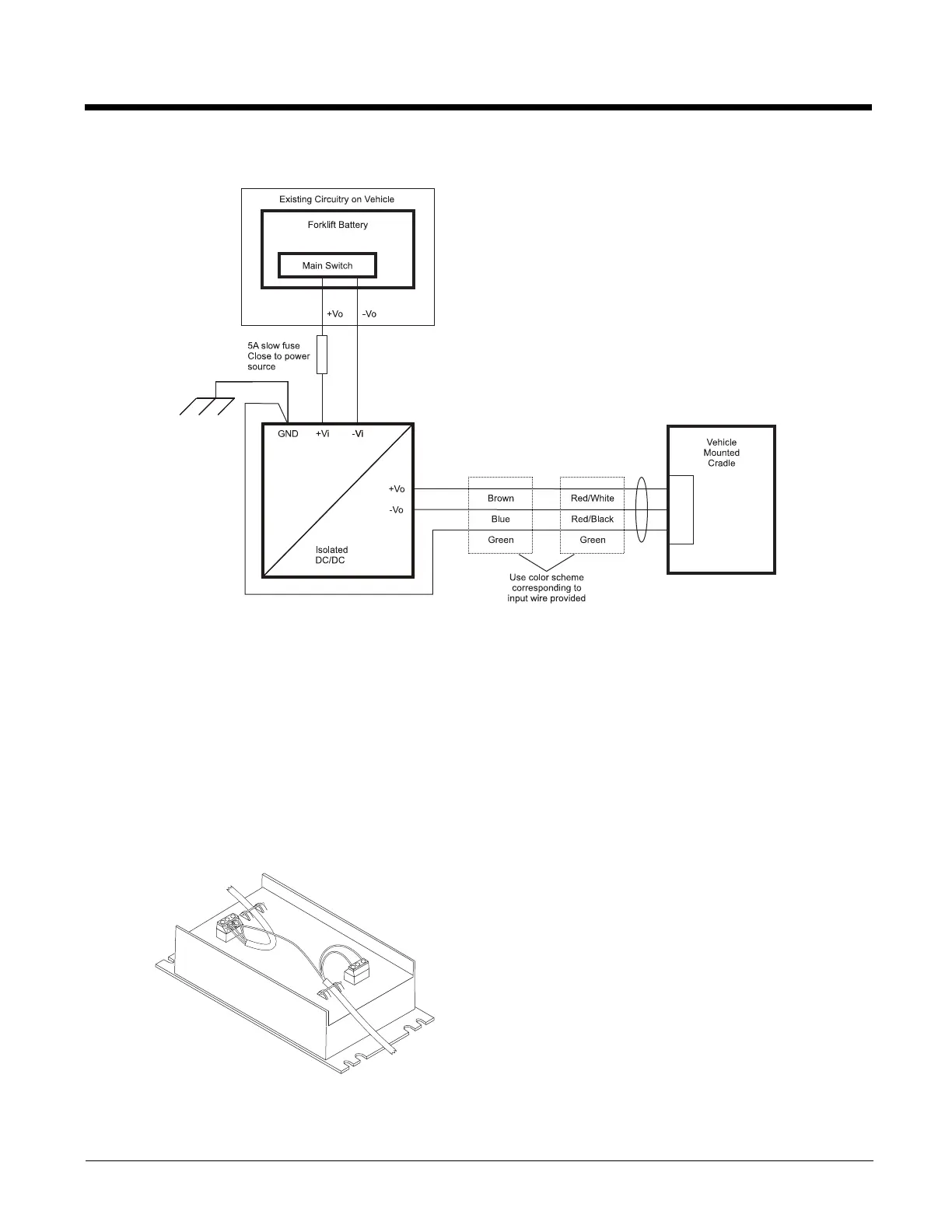

Wiring Schematic
Connecting to Vehicle Power
The vehicle cradle must be empty. The last connection must be to the vehicle power source.
1. Connect the power cable to the vehicle cradle.
2. Route the cable from the cradle to the DC/DC power supply.
3. Cut the cable to length and strip the wire ends.
4. Route the power cable the shortest way possible. The cable is rated for a maximum temperature of 105°C (221°F).
When routing this cable it should be protected from physical damage and from surfaces that might exceed this
temperature. Do not expose the cable to chemicals or oil that may cause the wiring insulation to deteriorate. Always
route the cable so that it does not interfere with safe operation and maintenance of the vehicle.
5. Remove the lid from the DC/DC power supply by removing only the screws on the side of the lid.
6. Attach the stripped wire ends to the output side of the DC/DC power supply
.
Note: The input block has VIN+, VIN- and GND terminals. The output block has VO+ and VO- terminals.
7. Connect the ground wire from the cradle to the GND terminal on the input side of the DC/DC power supply.

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
