Honeywell MX7 Tecton User Manual

14 - 16

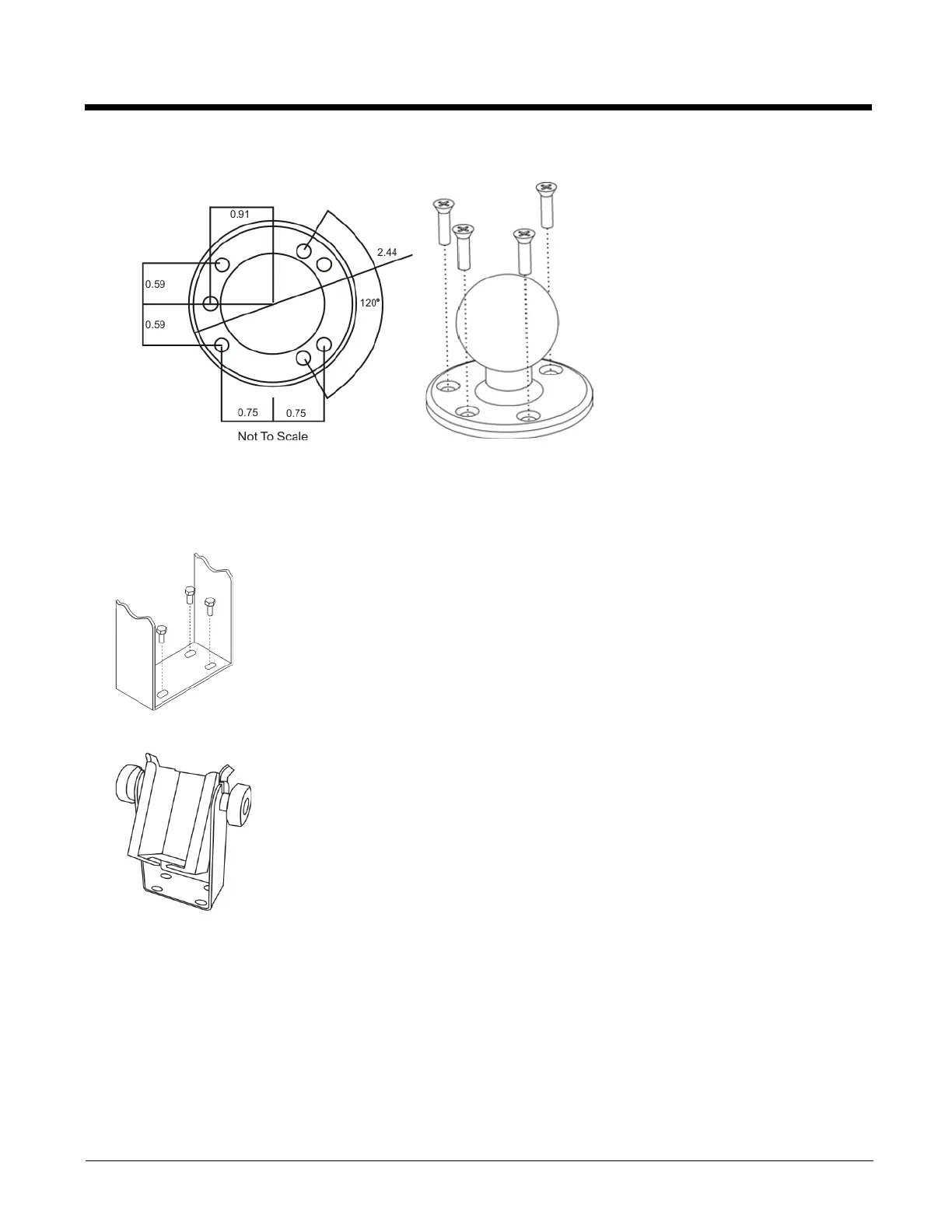

RAM Assembly Footprint
Installing the Cradle U-Bracket
Note: Honeywell does not supply the bolts or washers needed when mounting the cradle assembly to the vehicle chassis.
Use bolts with a maximum 10/32” (0.3125) diameter.
1. Attach the U-Bracket to the vehicle, making sure it does not impede safe operation of the vehicle.
2. Attach the Passive Cradle to the U-Bracket using the Angle Adjust knobs.
3. Use both knobs to loosen and tighten the cradle to the U-bracket while determining the best viewing angle. The passive
vehicle mounted cradle is ready for use.
Periodically test the passive mounting device and tighten bolts and/or knob as needed. If the cradle becomes cracked or
warped it must be replaced before the cradle is put back in service.

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
