Honeywell MX7 Tecton User Manual

7 - 3
Bluetooth Devices
The Bluetooth Devices tab displays any device previously discovered and paired with the MX7 Tecton.
Clear Button
Deletes all devices from the Device table that are not currently paired. A dialog box is presented Delete all disconnected
devices?
Tap the Yes button to remove disconnected or deleted devices from the device table. The devices are removed from the
Device table after any reboot sequence and when EZPair (or LXEZ Pairing) is re-launched without rebooting. Tap the No
button to make no changes.
Discover Button
When tapped, the Bluetooth client discovers and displays all Bluetooth devices in the vicinity. Bluetooth managed devices
should be as close as possible in direct line of sight, with the MX7 Tecton during the Discover process.
At the end of the Discover process, and when Filtered Mode is disabled/unchecked, serial Bluetooth devices as well as
Bluetooth scanners and printers are displayed in the Device table. When Filtered Mode is enabled/checked, only Bluetooth
scanners and printers are displayed in the Device table.

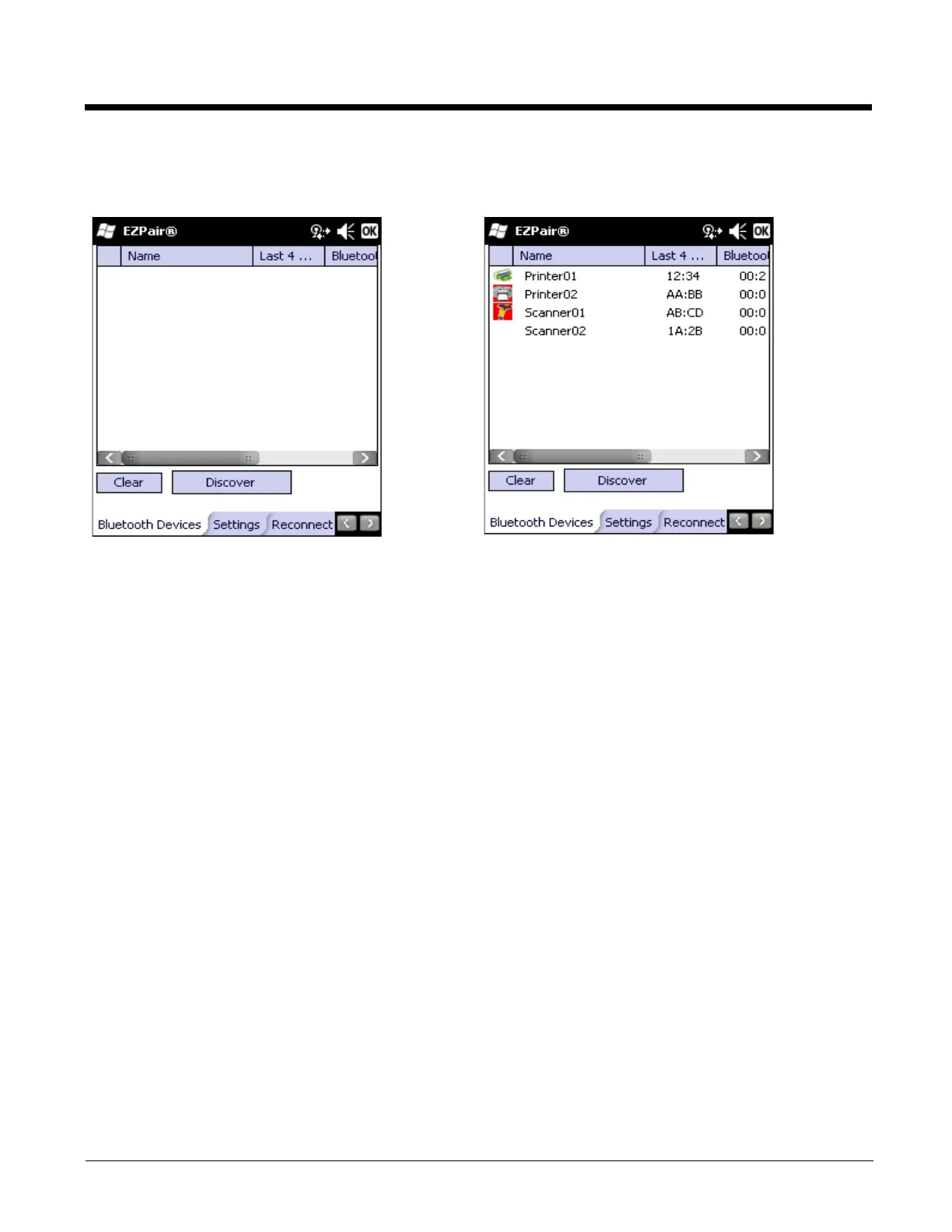

Before Discovery After Discovery

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
