The Data Collection Wedge supports up to three concurrent data collection devices. For example, the internal scanner could be
used to collect data at the same time a Bluetooth scanner is paired and/or a serial device is attached to COM1. The MX7 Tecton
must be in a desktop cradle to use a tethered scanner.
Device 1 – Internal. Radio button allows scanner input/output on Device 1 (scan key or trigger).
Device 2 – Output is enabled when COM1 is enabled on this port.
Device 3 – Output is enabled when COM1 is enabled on this port.
Note: Since Internal is the default setting for Device 2, a Bluetooth scanner can be paired with the Wedge using EZ Pair (or
LXEZ Pairing) on Device 1 without disabling the internal scanner.
Output – When Output is enabled, data is received from the scanner and processed via the wedge but an application can also
open the WDG0: device and write data to it. An example is when a printer is connected to the same COM port as the scanner
via a switch. Data can be written to the WDG device and is redirected to the associated COM port. The application must open
the WDG0: port, not the COMx: port as the Wedge has exclusive rights to the COM port. If Output is not enabled, the WDG0:
port can still be opened, but any attempts to write to that port fail.
Adjust the settings and tap ok to save the changes. The changes take effect immediately.
Setting Default
Device 1 Disabled
Device 2 Internal
Device 3 Disabled
Output Disabled
Send Key Messages Enabled
Scan Mode - Continuous Disabled
Scan Mode - Timeout between same symbol 1 second

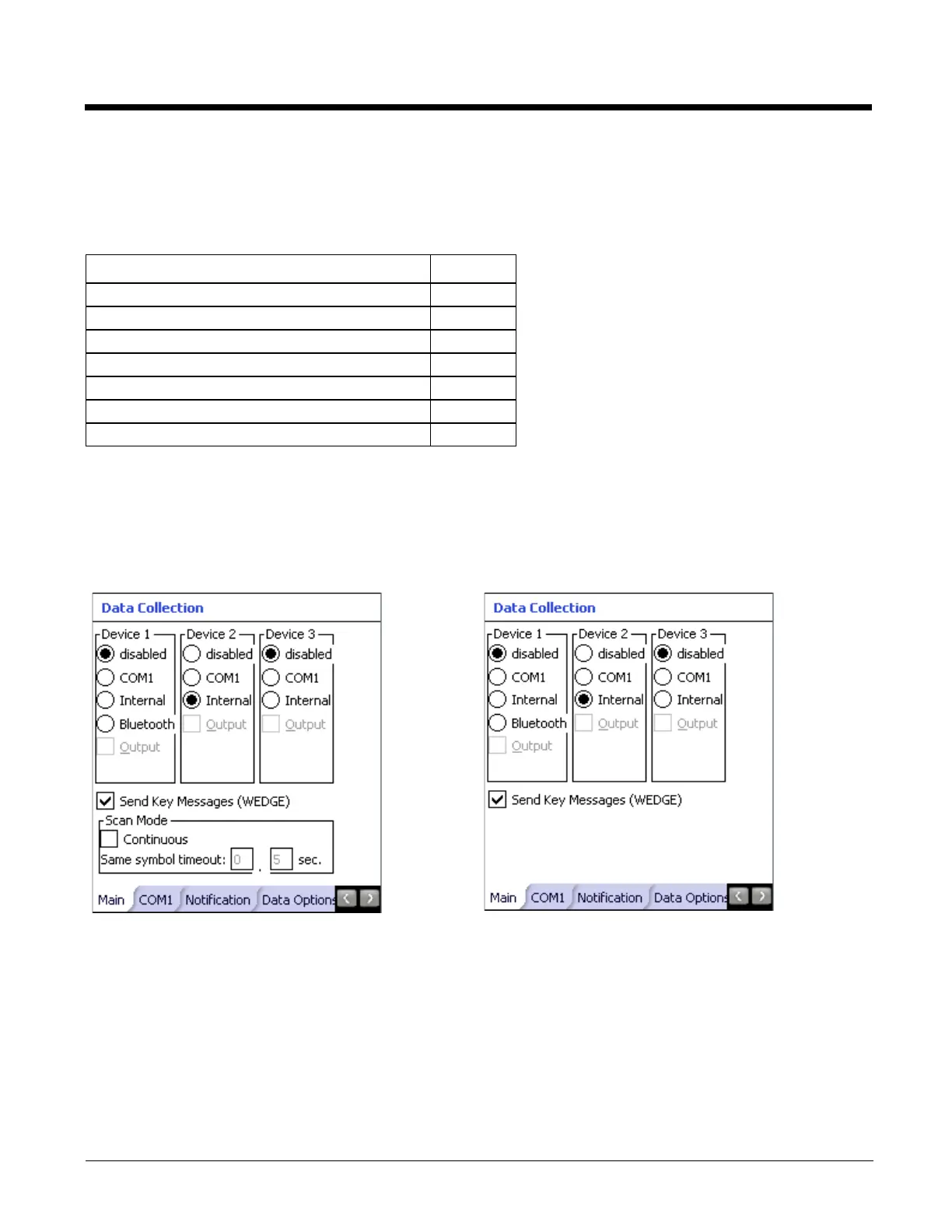

Panel showing options for Symbol or Honeywell scan engine Panel showing options for any other type of scan engine
