Honeywell MX7 Tecton User Manual

11 - 43

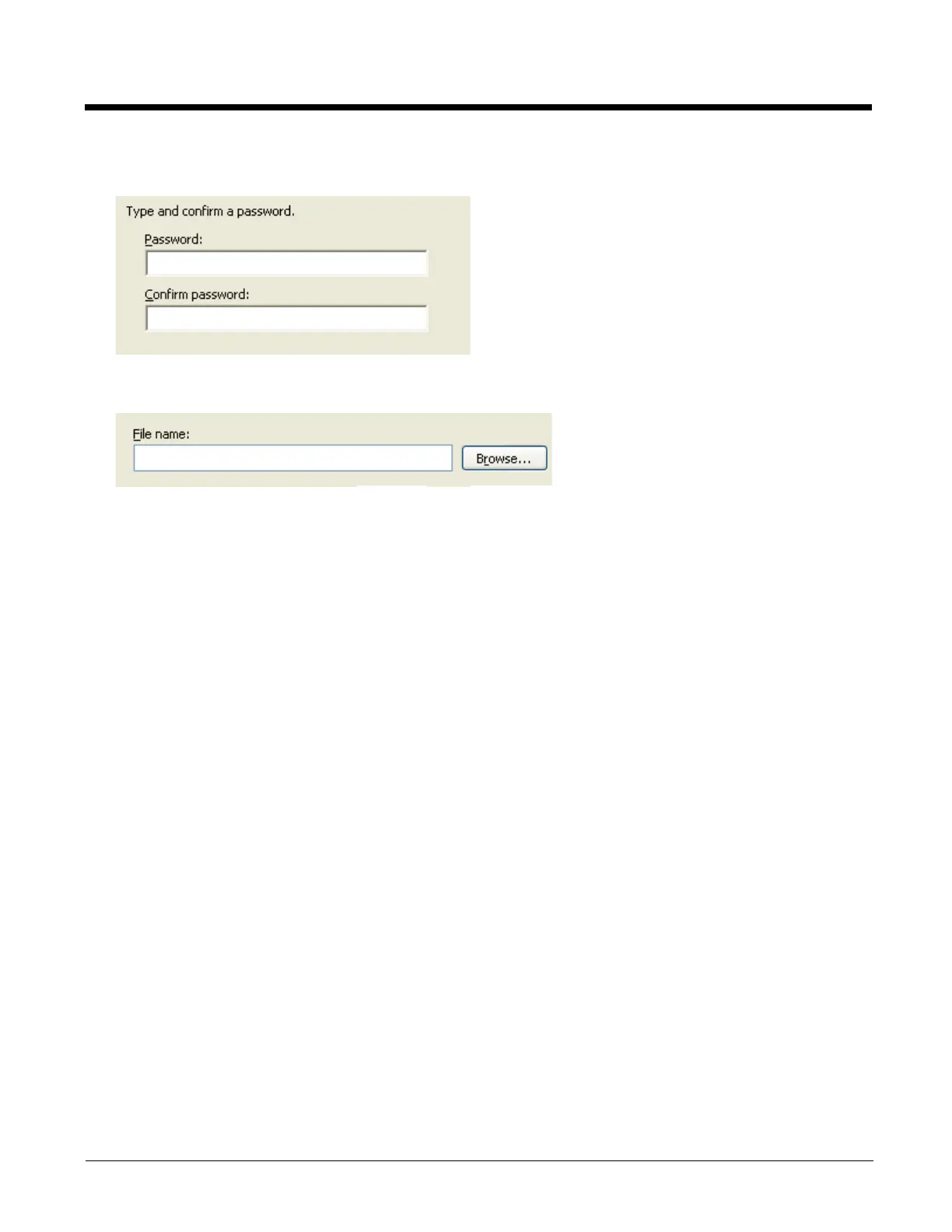

7. When the private key is exported, you must enter the password, confirm the password and tap Next. Be sure to
remember the password as it is needed when installing the certificate.
8. Supply the file name for the certificate. Use the Browse button to select the folder where you wish to store the certificate.
The certificate is saved with a .PFX extension.
9. Tap Finish and OK to close the Successful Export message.
10. Locate the User Certificate in the specified location. Copy to the MX7 Tecton.
11. Install the User Certificate.
Installing a User Certificate
1. After generating and exporting the user certificate, copy it from the PC to the MX7 Tecton. Copy the certificate to a loca-
tion on the MX7 Tecton, such as a storage card or the \System folder.
2. Locate the certificate file (it has a .PFX extension) and tap on it. You are prompted for the password that was assigned
when the certificate was exported.
3. Enter the password and tap Done. A message is displayed that the certificate installation was successful.
Verify Installation
1. You can view any installed user certificates by selecting Start > Settings > System and tapping the Certificates icon.
2. Installed user certificates are displayed on the Personal tab.

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
