Removing the MX7 Tecton from a Powered Vehicle Cradle

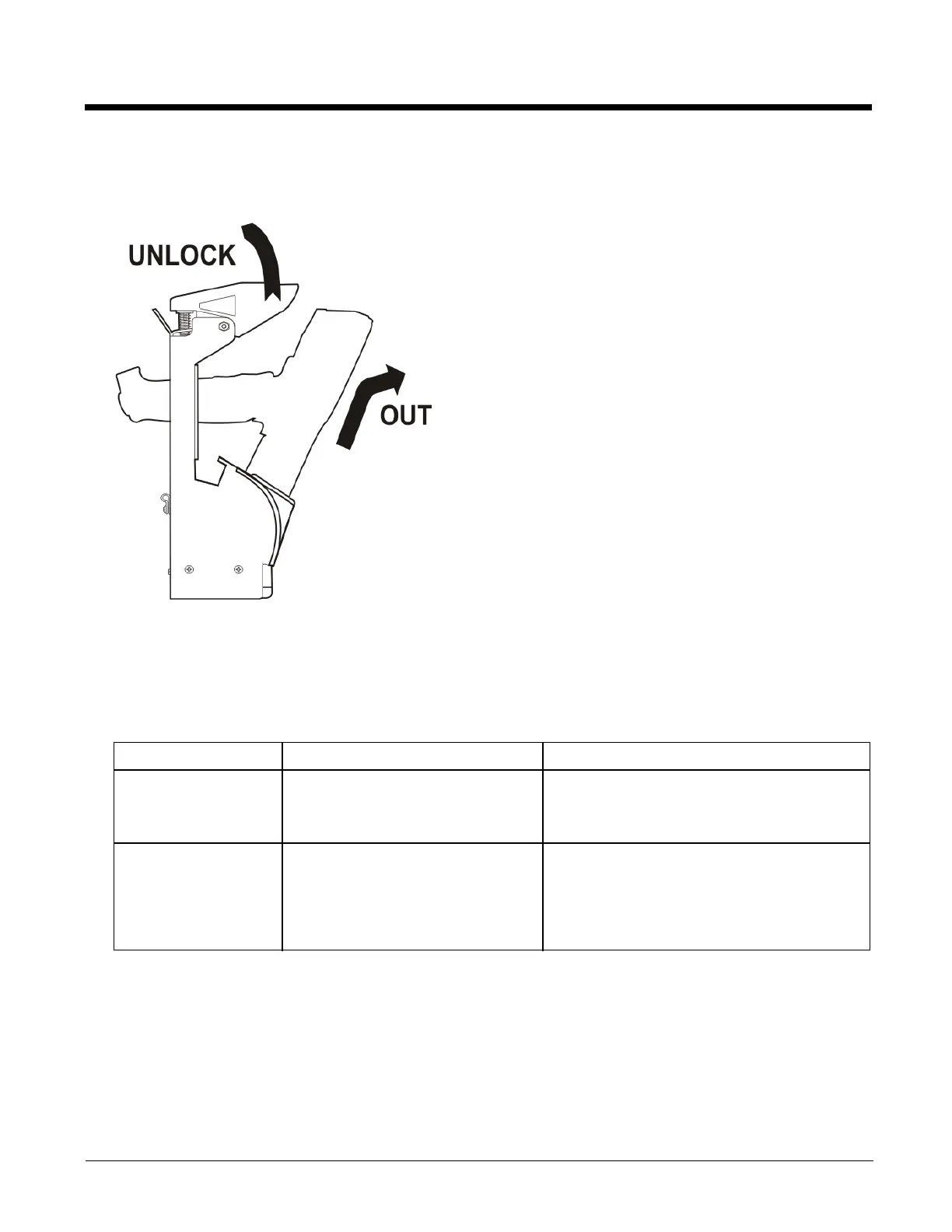

1. Push the top of the Retainer up and back until the MX7 Tecton is released from the Retainer latches and the charging
pocket swings forward.
2. Pull the MX7 Tecton up and out of the vehicle cradle pocket, disconnecting the MX7 Tecton from the charge/
communication port at the base of the docking bay. The Docked LED turns off.
Powered Vehicle Cradle Help
The following is intended as an aid in determining whether the MX7 Tecton or the vehicle mounted cradle may be
malfunctioning.
Problem Cause Solution
MX7 Tecton docked in
cradle but cannot work
with accessory cables
connected to cradle.
MX7 Tecton not fully seated in cradle.
There are foreign objects inside
docking bay or cable connectors
Reseat the MX7 Tecton fully into the docking bay.
Remove the foreign objects and reseat the MX7
Tecton in the docking bay.
MX7 Tecton docked in
cradle but Docked LED
does not light up.
MX7 Tecton not fully docked.
Power supply not connected.
Check the docking bay is clear of foreign objects
and reseat the MX7 Tecton fully into the docking
bay.
Check that power is connected to the Power Port
at the rear of the cradle.

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
