Honeywell MX7 Tecton User Manual

8 - 31
value 0x0d received in any scanned bar code (or defined in the prefix or suffix) will be replaced with the value
0x0a.
The Wedge then sends Ctrl+J to the receiving application, rather than Ctrl+M.
List Box
The list box shows all user-defined control characters and their assigned replacements. All replacements are
enclosed in single quotes to delimit white space that has been assigned.
Delete
This button is grayed unless an entry in the list box is highlighted. When an entry (or entries) is highlighted, and
Delete is selected, the highlighted material is deleted from the list box.
Custom Identifiers
The Custom Identifiers button is located on the Data Options tab. Code IDs can be defined by the user. This allows pro-
cessing parameters to be configured for bar codes that do not use the standard AIM or Symbol IDs or for bar codes that
have data embedded at the beginning of the data that acts like a Code ID.
These are called “custom” Code IDs and are included in the Symbology drop down box in the Symbology dialog, unless
Enable Code ID is set to None. When the custom Code ID is found in a bar code, the configuration specified for the custom

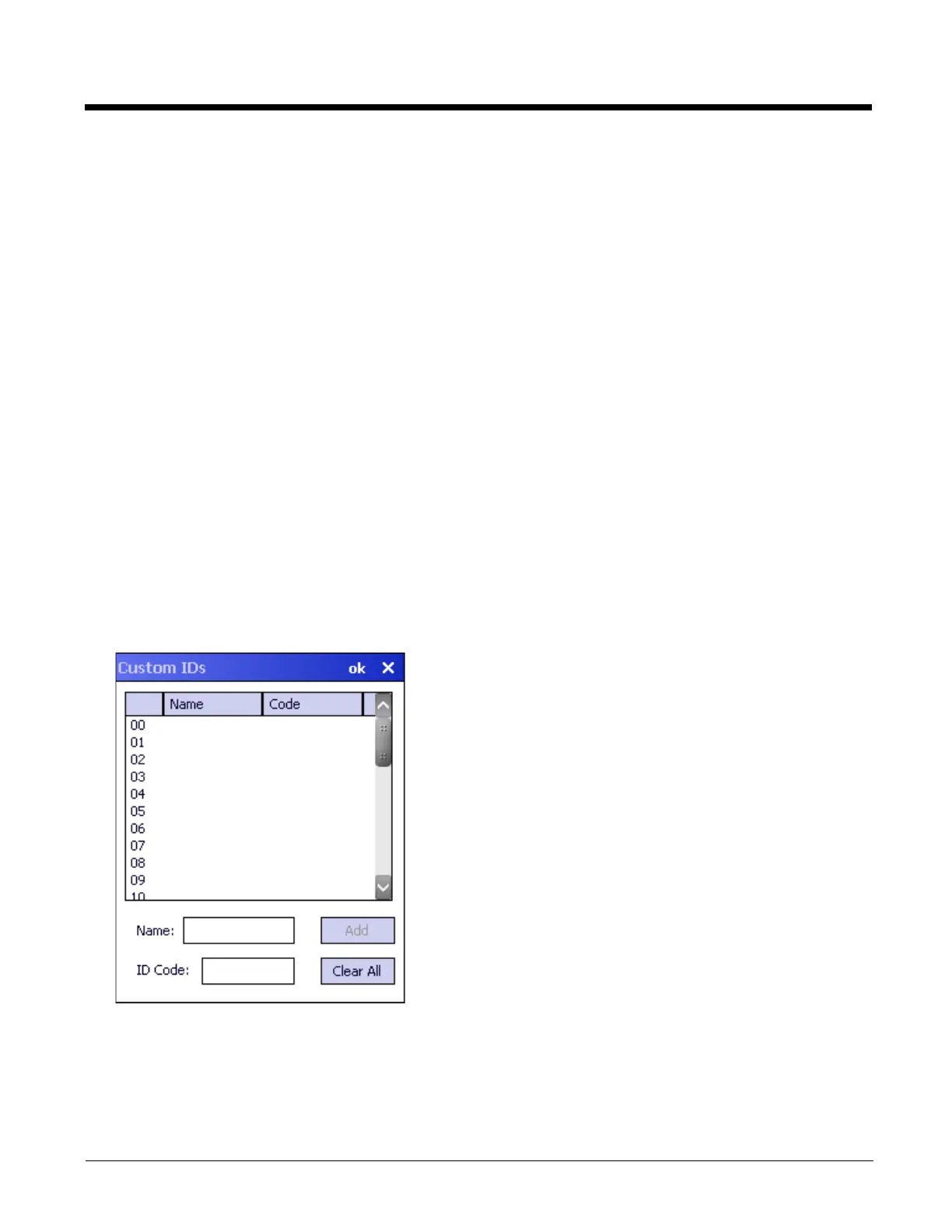

Code ID is applied to the bar code data. The dialog below allows the custom Code IDs to be configured.
It is intended that custom code IDs are used to supplement the list of standard code IDs (if Enable Code ID is set to AIM or
Symbol), or to replace the list of standard code IDs (if Enable Code ID is set to Custom).
When Enable Code ID is set to None, custom code IDs are ignored.
Note: Custom symbologies will appear at the end of the list in the Symbology dialog, and are processed at the beginning
of the list in the scanner driver itself. This allows custom IDs based on actual code IDs to be processed before the
code ID itself.
Note: When Strip: Code ID is enabled, the entire custom Code ID string is stripped (i.e., treated as a Code ID).
Note: After adding, changing and removing items from the Custom IDs list, tap the ok button to save changes and return to
the Barcode panel.

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
