Honeywell MX7 Tecton - Components

14 - 15
Components

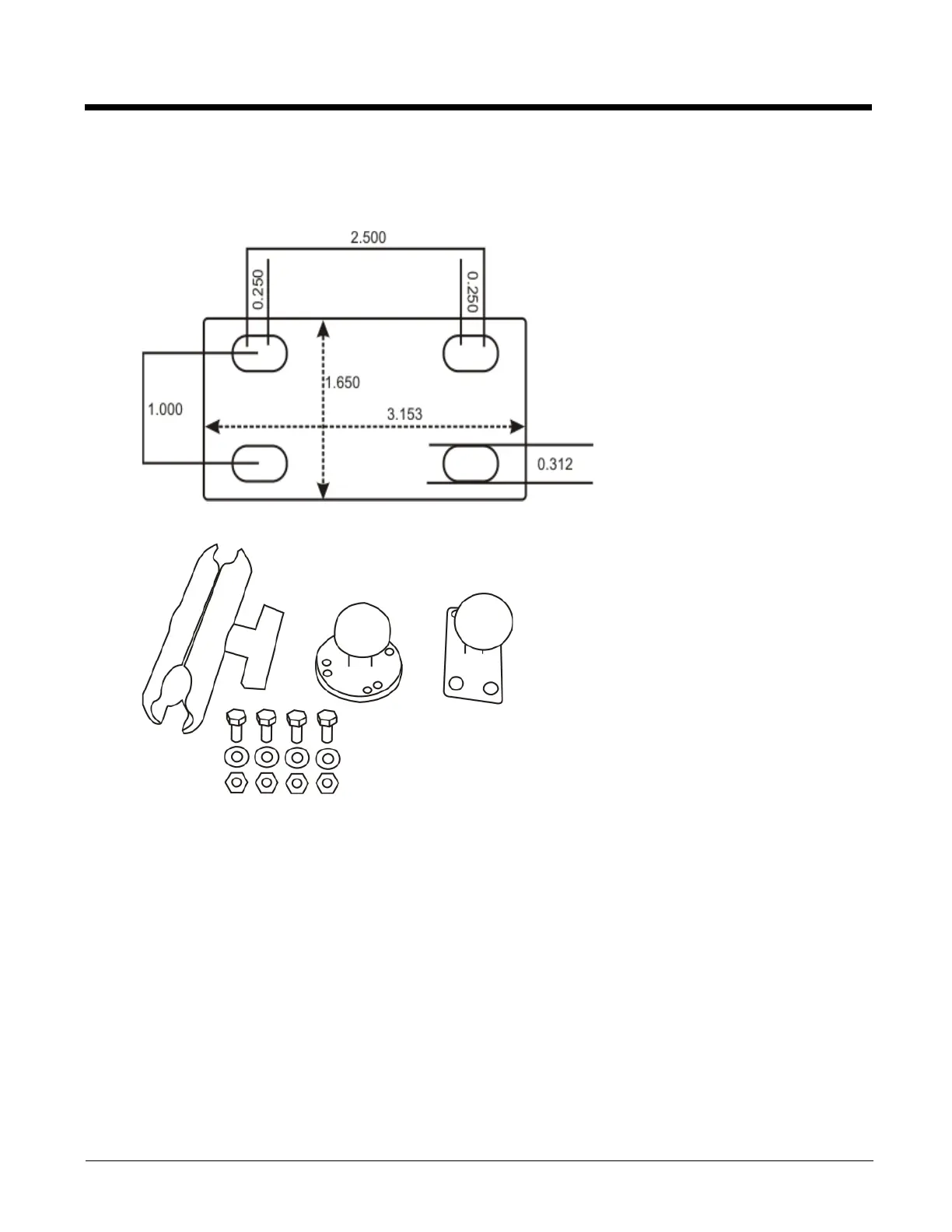

U-Bracket Footprint
The image below is not to scale.
RAM Assembly Components
Mount the cradle U-bracket to the upper RAM ball assembly with the bolts, washers and nuts supplied by Honeywell.
• Qty 4 – Hex Cap 1/4-20 x 3/4 bolts
• Qty 4 – 1/4 flat washer
• Qty 4 – 1/4-20 nylon insert lock nuts
