15 - 4
Vehicle Mounted Cradle

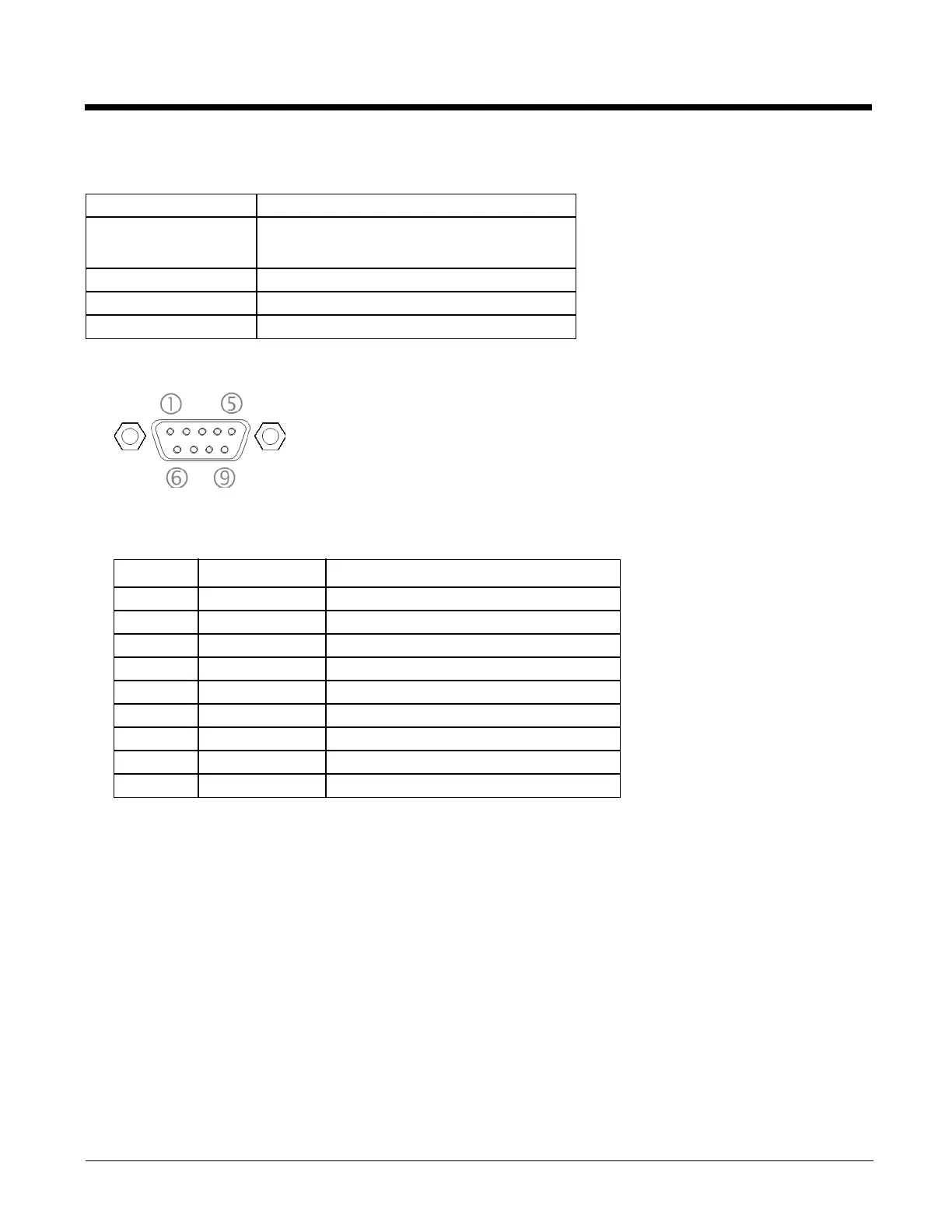

Serial Port
The connector is industry-standard RS232 and is a PC/AT standard 9-pin D male connector.
Note: Tethered scanners must be connected to powered cradles.
Note: Pin 9 of this port is connected to +5 VDC and only approved Honeywell cables are to be used for communication
between the cradle and external devices.
Weight 2 lbs. 15.2 oz / 1.34 kg
Dimensions Height 12.5 in. (31.8 cm)
Width 6.0 in. (15 cm)
Depth 5.0 in. (13 cm)
Operating Temperature 14° F to 122° F ( -10° C to 50° C)
Storage Temperature -4° F to 158° F (-20° C to 70° C)
Humidity 5% to 90% (non-condensing) at 104° F / 40° C
Pin Signal Description
1 DCD Data Carrier Detect
2 RXD Received Data – Input
3 TXD Transmitted Data – Output
4 DTR Data Terminal Ready
5 GND Signal/Power Ground
6 DSR Data Set Ready
7 RTS Request to Send
8 CTS Clear To Send
9 RI or Power +5 VDC sourced by the Cradle
