Installation
Assemble the Power Supply

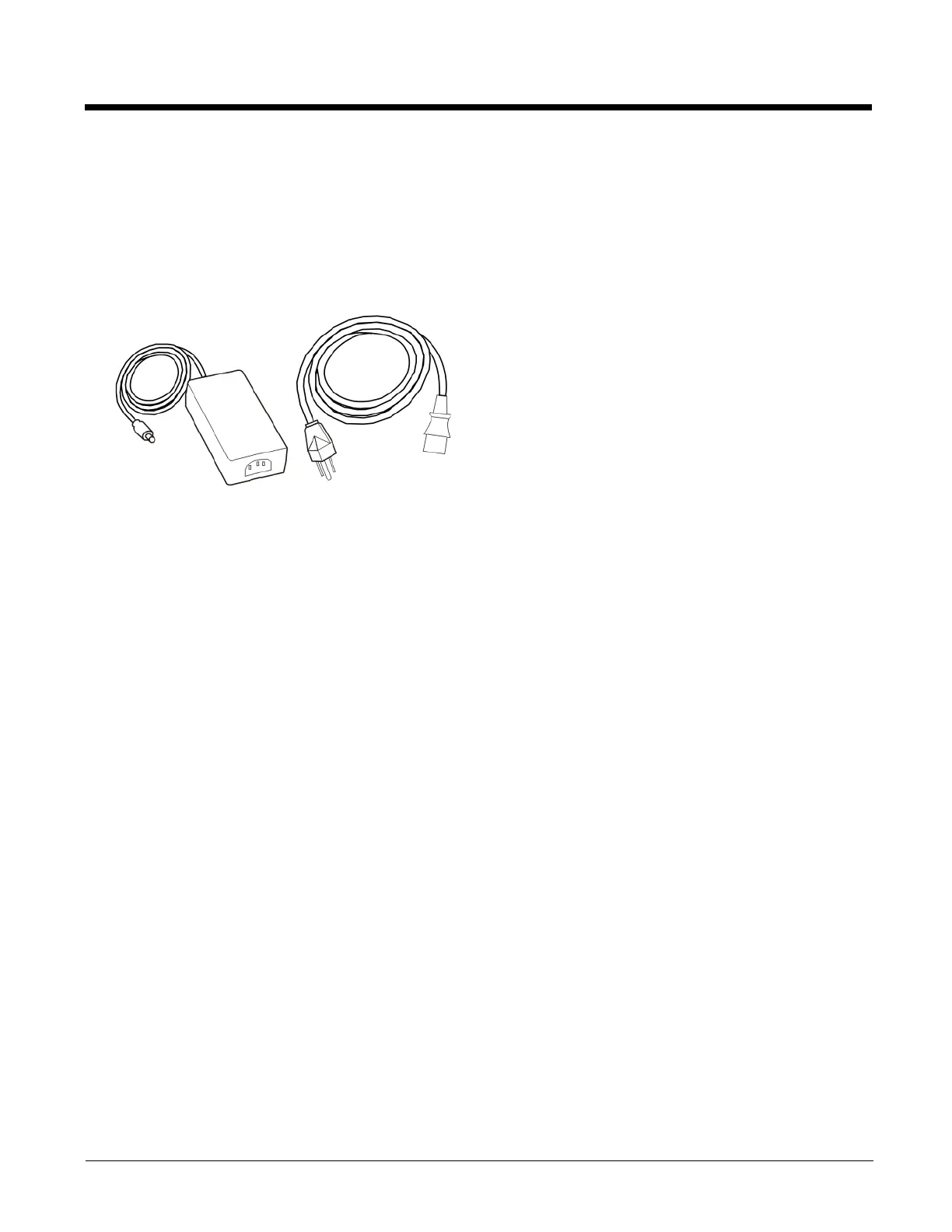

Assemble the AC adapter for the MX7 Tecton Battery Charger before connecting it to the charger.
The AC power supply for the battery charger is shipped with the battery charger. Contact Technical Assistance (page 16-1)
if there is no AC cable.
The battery charger power supply is intended for use with the MX7 Tecton battery charger only.
1. Plug the 3-prong end of the cable into an AC wall outlet.
2. Firmly press the female end of the power cable into the male connector on the AC power adapter. An LED on the power
adapter illuminates when AC power is available.
3. AC power is now being applied to the power adapter.
Setup
Place the battery charger on a flat, horizontal, hard surface or fasten securely to a stable surface using the keyhole open-
ings on the bottom of the battery charger. See Mounting (page 13-5).
Do not insert battery packs until the battery charger has finished powering up:
1. Assemble the Power Supply and connect it to an indoor power source (e.g. wall outlet).
2. Insert the power connector from the power supply into the power outlet at the back of the battery charger.
3. AC power is now being applied to the battery charger and it begins to power up.
4. Charge pocket LEDs flash while the battery charger enters and exits the startup check.
5. When the charge pocket LEDs are not illuminated, the battery charger is ready for use.
