2 - 19

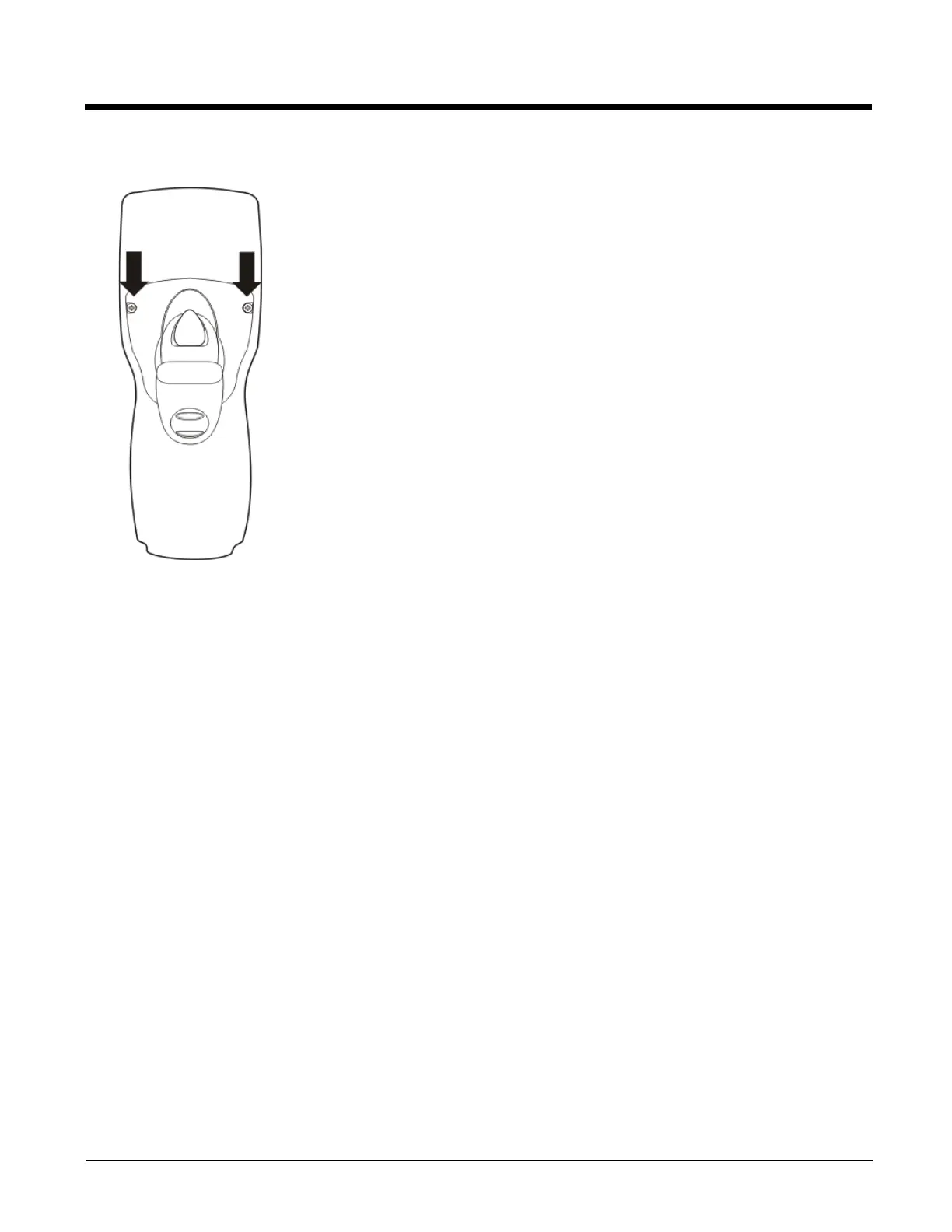

Handle with Two Screws
Tool required: Torque wrench capable of torquing to 3±1 in/lb (.34±.11 N/m).
1. Place the MX7 in Suspend.
2. Place the MX7 Tecton with the screen facing down, on a flat stable surface.
3. Remove the handstrap, if installed. Tool required: Phillips #1 screwdriver.
4. Remove the main battery.
5. Slide the locking tab on the underside of the trigger handle into the slot at the back of the battery compartment and
press it firmly into place.
6. Ensure that the main battery can be inserted into the battery compartment before securing the trigger handle in place.
7. Attach the trigger handle to the MX7 Tecton (as shown above) with the screws provided.
8. Torque the pan head screws to 3±1 in/lb (.34±.11 N/m).
9. Secure the strap tether to the trigger handle.
10. Place the stylus in the stylus holder in the bottom of the trigger handle. Tie the stylus tether to the stylus and the trigger
handle.
Periodically check the trigger handle for wear and the connection for tightness. If the handle gets worn or damaged, it must
be replaced. If the trigger handle connection loosens, it must be tightened or replaced before the MX7 Tecton is placed
back in service.
• Te handle i secured by two screws in front of the handle.
• The handle is built of a durable, flexible plastic.
• The handle will not detach from the MX7 Tecton if the unit is dropped.
• The trigger handle is a mechanical device. Battery or external A/C power is not
required for operation.
• The trigger handle does not need to be removed when replacing the main battery
pack.
• The trigger handle might also be called a pistol grip.
