Honeywell MX7 Tecton User Manual

14 - 6

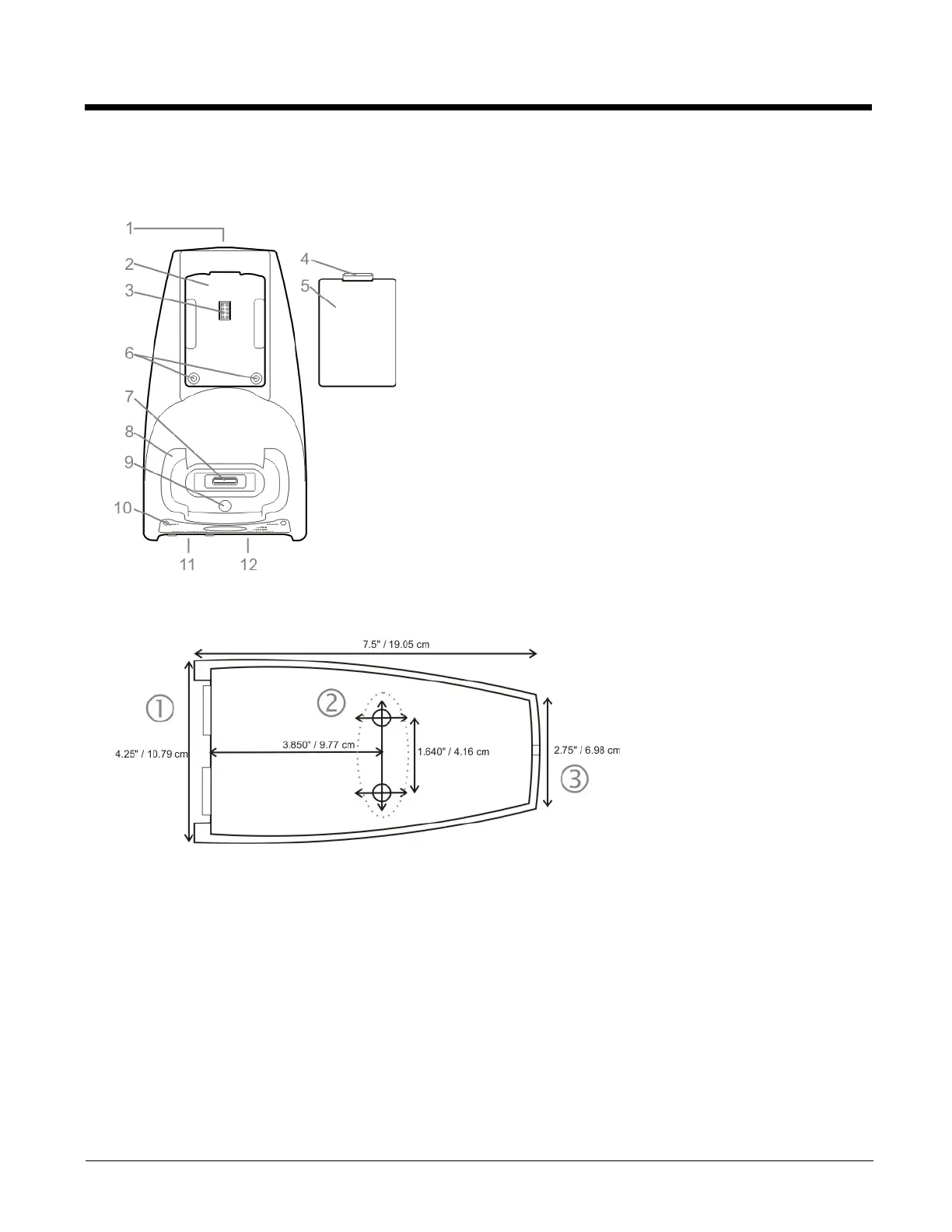

Top View
Desktop Mounting Footprint
1. Front
2. Table Mounting Hole Guides
3. Back
Bolts, washers, screws, screwdriver or wrench needed when attaching the MX7 Tecton desktop cradle to a protected flat
surface are not supplied by Honeywell.
Periodically check the table mounting hardware and re-tighten if necessary. Table mounting hardware can be finger-
tightened.
Note: Do not over-tighten the table mounting hardware. If the cradle is cracked, it must be replaced before being placed
into service. Contact Technical Assistance (page 16-1) for help.
1. Power Supply Connector
2. Spare Battery Charging Bay
3. Spare Battery Charging Terminals
4. Spare Battery Latch
5. Spare Battery
6. Table Mounting Holes
7. Cradle Connector
8. Docking Bay Adapter Cup
9. Docking Bay Adapter Cup Mounting Hole
10. Desktop Cradle Label
11. Serial Interface Connector
12. I/O Connector

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
