Bluetooth Indicators
The Bluetooth icon state changes as Bluetooth devices are discovered, paired, connected and disconnected.
There may be audible or visual signals as paired devices re-connect with the MX7 Tecton.
Note: When an active paired device enters Suspend Mode, is turned Off or leaves the MX7 Tecton Bluetooth scan range, the
Bluetooth connection between the paired device and the MX7 Tecton is lost. There may be audible or visual signals as
paired devices disconnect from the MX7 Tecton.
AppLock, if installed, does not stop the end-user from using Bluetooth applications, nor does it stop authorized Bluetooth-
enabled devices from pairing with the MX7 Tecton while AppLock is in control.
Bluetooth Bar Code Reader Setup
Refer to the Bluetooth scanner manufacturer’s User Guide; it may be available on the manufacturer’s web site. Contact
Technical Assistance (page 16-1) for Bluetooth product help.
Introduction
Honeywell supports several different types of bar code readers. This section describes the interaction and setup for a
mobile Bluetooth laser scanner or laser imager connected to the MX7 Tecton using Bluetooth functions.
Prerequisites:
• The MX7 Tecton must have the Bluetooth hardware and software installed. An operating system upgrade may be
required. Contact Technical Assistance for details.
• If the MX7 Tecton has a Bluetooth address identifier bar code label affixed, then Bluetooth hardware and software are
installed.
• The mobile Bluetooth laser scanner / laser imager battery is fully charged.
• The MX7 Tecton main battery is fully charged. Alternatively, the MX7 Tecton may be cabled to AC/DC power.
• Important: The bar code numbering examples in this segment are not real and should not be created or scanned with a
Bluetooth scanner.
• Open the Bluetooth control panel or tap the Bluetooth icon.

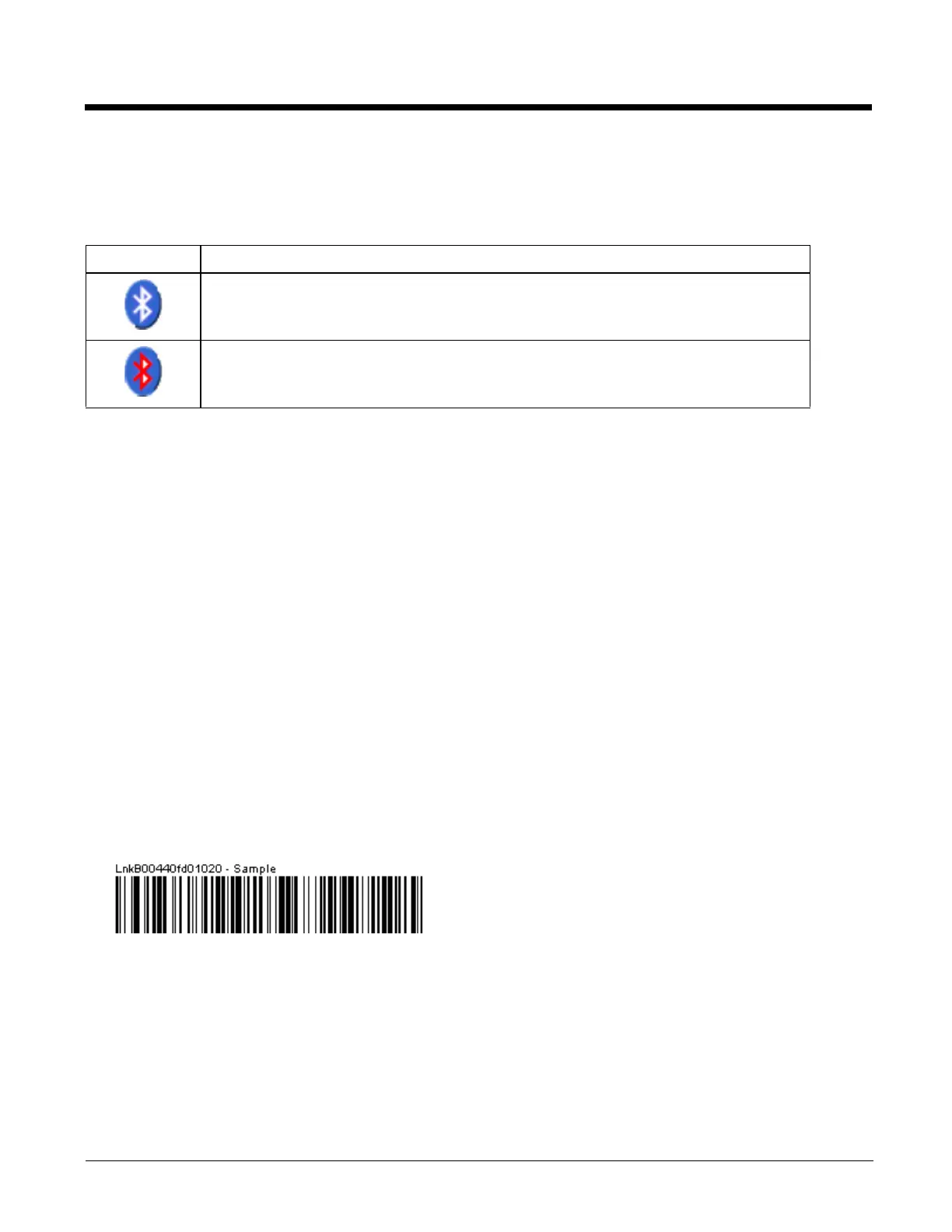

Locate the bar code label, similar to the one shown above, attached to the MX7 Tecton. The label is the Bluetooth address
identifier for the MX7 Tecton.
The Bluetooth mobile scanner requires this information before discovering, pairing, connecting or disconnecting can occur.
The MX7 Tecton Bluetooth address identifier label should be protected from damage (rips, tears, spills, soiling, erasure,
etc.) at all times. It may be required when pairing, connecting, and disconnecting new Bluetooth bar code readers.
Taskbar Icon Legend
MX7 Tecton is connected to one or more of the targeted Bluetooth device(s).
MX7 Tecton is not connected to any Bluetooth device.
MX7 Tecton is ready to connect with any Bluetooth device.
MX7 Tecton is out of range of all paired Bluetooth device(s). Connection is inactive.

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
